10. Geopandas

Geopandas enables the use and manipulation of geospatial data in Python. It extends the common datatype used in pandas to allow for the many and unique geometric operations: GeoSeries and GeoDataFrame. Geopandas is also built on top of shapely for its geometric operation; its underlying datatype allows Geopandas to run blazingly fast and is appropriate for many machine learning pipelines that require large geospatial datasets.

Instalation

Following steps:

1. create new environment

conda creare -name new_env

2. Activate new environment

conda activate new_env

3. Install package

conda install -c conda-forge python=3 geopandas

Geopandas data types

Shapefile (.shp): vector data that stores geospatial information such as topology, shape geometry, coordinate etc

GeoJSON (.geojson): geospatial information and relevant characteristics (object or string)

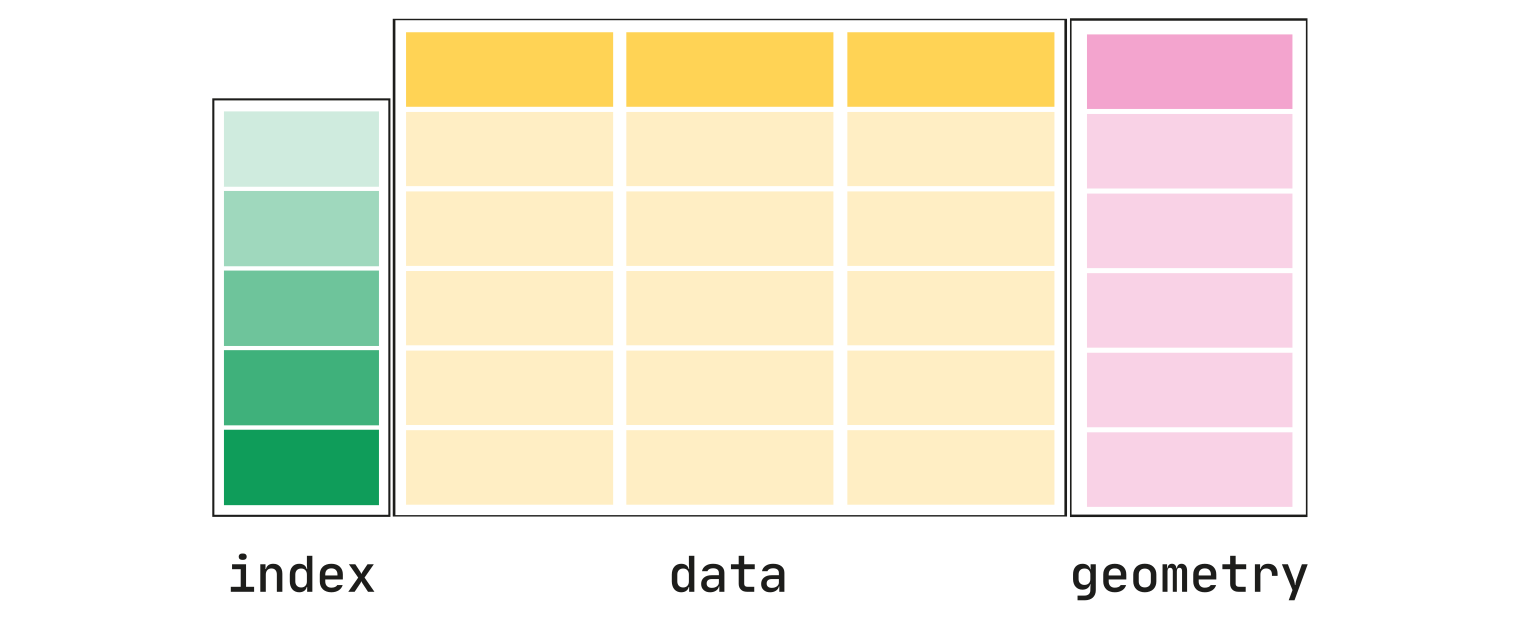

Finally, Geopandas creates an additional geometry column

Coordinate Reference Systems (crs)

The coordinate reference systems tell us how GeodataFrame o GeoSeries relate to places on Earth

relevant operations: setting a projection and re-projecting

setting projection: geopandas.read_file() most of time includes projection information. Check using “Geoseries.crs” If GeoDataframe does not include projection, hence use data[“geometry”].set_crs(epsg=4326) for WGS-84.

WGS-84:

The Global Positioning System uses the World Geodetic System (WGS84) as its reference coordinate system. It’s made up of a reference ellipsoid, a standard coordinate system, altitude data, and a geoid

Reprojecting:

In somes cases, due to distortions in bidimensional plane and your application of geospatial data, re-projection is required.

A commonly used default is Universal Transverse Mercator (UTM)

import pandas as pd
from pandas import Series, DataFrame
import numpy as np
import matplotlib.pyplot as plt
import chardet
import geopandas as gpd
from geopandas import GeoSeries
from shapely.geometry import Point, LineString
import folium
from folium import Marker, GeoJson
from folium.plugins import MarkerCluster, HeatMap

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[1], line 5
      3 import numpy as np
      4 import matplotlib.pyplot as plt
----> 5 import chardet
      6 import geopandas as gpd
      7 from geopandas import GeoSeries

ModuleNotFoundError: No module named 'chardet'

# Gettting the character format (encoding type)

base = open(r'../_data/Datos_panel_distritos.csv', 'rb').read()
det = chardet.detect(base)
charenc = det['encoding']
charenc

'utf-8'

Covid Data

# Import csv file from panel covid information at distric level
# Panel data from march-2020 to first two wees of january-2022

cv_data = pd.read_csv( r'../_data/Datos_panel_distritos.csv', encoding = charenc)
cv_data.head( 5 )

	Código	Departamento	Provincia	Distrito	Mes	Año	Casos	Muertes Covid	Muertes totales
0	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	3	2020	0	0	16
1	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	4	2020	47	0	5
2	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	5	2020	165	3	11
3	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	6	2020	119	2	15
4	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	7	2020	175	2	8

cv_data.dtypes

Código              int64
Departamento       object
Provincia          object
Distrito           object
Mes                 int64
Año                 int64
Casos               int64
Muertes Covid       int64
Muertes totales     int64
dtype: object

# rename variable to merge later
cv_data = cv_data.rename({'Código':'UBIGEO'}, axis =1 )
cv_data.head( 5 )

	UBIGEO	Departamento	Provincia	Distrito	Mes	Año	Casos	Muertes Covid	Muertes totales
0	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	3	2020	0	0	16
1	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	4	2020	47	0	5
2	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	5	2020	165	3	11
3	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	6	2020	119	2	15
4	10101	AMAZONAS	CHACHAPOYAS	CHACHAPOYAS	7	2020	175	2	8

Shape File

# Upload shape file at district level

maps = gpd.read_file(r'../_data/shape_file/DISTRITOS.shp')

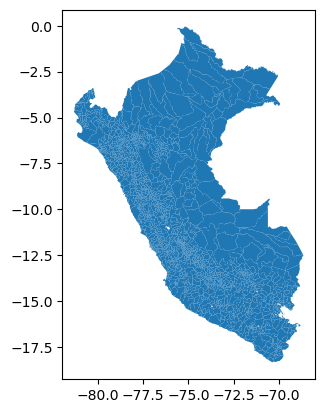

maps

	IDDPTO	DEPARTAMEN	IDPROV	PROVINCIA	IDDIST	DISTRITO	CAPITAL	CODCCPP	AREA	FUENTE	geometry
0	10	HUANUCO	1009	PUERTO INCA	100902	CODO DEL POZUZO	CODO DEL POZUZO	0001	1	INEI	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...
1	10	HUANUCO	1009	PUERTO INCA	100904	TOURNAVISTA	TOURNAVISTA	0001	1	INEI	POLYGON ((-74.64136 -8.82302, -74.64036 -8.828...
2	25	UCAYALI	2503	PADRE ABAD	250305	ALEXANDER VON HUMBOLDT	ALEXANDER VON HUMBOLDT	0001	1	INEI	POLYGON ((-75.02253 -8.74193, -75.02267 -8.742...
3	25	UCAYALI	2503	PADRE ABAD	250302	IRAZOLA	SAN ALEJANDRO	0001	1	INEI	POLYGON ((-75.13864 -8.56712, -75.13956 -8.569...
4	25	UCAYALI	2503	PADRE ABAD	250304	NESHUYA	MONTE ALEGRE	0001	1	INEI	POLYGON ((-75.01589 -8.44637, -75.01585 -8.446...
...	...	...	...	...	...	...	...	...	...	...	...
1868	10	HUANUCO	1006	LEONCIO PRADO	100608	CASTILLO GRANDE	CASTILLO GRANDE	0001	1	INEI	POLYGON ((-76.08083 -9.13017, -76.08026 -9.130...
1869	10	HUANUCO	1006	LEONCIO PRADO	100609	PUEBLO NUEVO	PUEBLO NUEVO	0001	1	INEI	POLYGON ((-75.88828 -9.00906, -75.88756 -9.010...
1870	10	HUANUCO	1006	LEONCIO PRADO	100610	SANTO DOMINGO DE ANDA	PACAE	0001	1	INEI	POLYGON ((-75.91141 -8.88593, -75.91182 -8.886...
1871	21	PUNO	2111	SAN ROMAN	211105	SAN MIGUEL	SAN MIGUEL	0001	1	INEI	POLYGON ((-70.13203 -15.33382, -70.12355 -15.3...
1872	15	LIMA	1508	HUAURA	150806	HUAURA	HUAURA	0001	1	INEI	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...

1873 rows × 11 columns

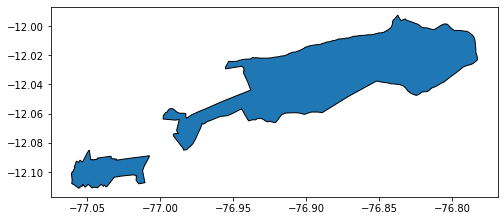

# Plot 1 district (its a collection of points)
maps["geometry"][100]

## Set of points for first district
maps.geometry[0].boundary.coords.xy

(array('d', [-75.31797010604475, -75.31710488392423, -75.31604648791898, -75.31537303628215, -75.31469932241646, -75.31392881111611, -75.3133303495971, -75.31169723519622, -75.30615235974136, -75.30464848475174, -75.30204673484673, -75.30106448524998, -75.29776760924966, -75.29447260989667, -75.28983985902022, -75.28862698442924, -75.2863086102684, -75.2851563586247, -75.28393560955703, -75.28272260912615, -75.28220311024171, -75.28202736045313, -75.28138673398348, -75.28156248370055, -75.28098236019497, -75.28017386006405, -75.27959373487306, -75.27774798404425, -75.27780860999633, -75.27711523520276, -75.27648235912312, -75.27555073511627, -75.27393360884412, -75.27306448398218, -75.27278123480181, -75.27197261018847, -75.27063673497003, -75.26936310921559, -75.26861523478374, -75.26768548488297, -75.26531248414989, -75.26329098403181, -75.26230660998112, -75.26178710908653, -75.26045898389629, -75.2592461099199, -75.25808785916968, -75.25611910895401, -75.25409760880586, -75.25021485905677, -75.24755860988529, -75.24643748485443, -75.24575198510132, -75.24066798386781, -75.24050198407201, -75.2372597351648, -75.2359842337778, -75.23378711019097, -75.22974410985302, -75.226158234026, -75.22216785915634, -75.21956635905468, -75.2180019840473, -75.21586523510524, -75.21453123508553, -75.21216472468012, -75.20932810907095, -75.20695510989407, -75.20516211010215, -75.20215623501099, -75.2003104839743, -75.19660160978003, -75.19516011003475, -75.19290235888997, -75.19209373494306, -75.18868161016542, -75.1849726101953, -75.18167985885947, -75.17936723501833, -75.17792573421747, -75.17651361007904, -75.17580660879213, -75.17588473404857, -75.17943548397147, -75.18314448413241, -75.1839609850594, -75.18460160999712, -75.1869727339589, -75.19109373402421, -75.19451173489051, -75.19659360997343, -75.19792973499995, -75.20158398488337, -75.20500198504806, -75.20667973505584, -75.20683598379895, -75.2068359841013, -75.20659960977974, -75.20596873518195, -75.20596873483112, -75.20612698407149, -75.20633786011939, -75.20691598519164, -75.20854098398303, -75.20854098480078, -75.20779485889199, -75.20640623490311, -75.20553710915271, -75.20530660914335, -75.20536723514675, -75.20503323488936, -75.20426948392367, -75.20127735983812, -75.20000386022781, -75.19913473392899, -75.19899998492298, -75.1989999851395, -75.19905273482743, -75.19797460903715, -75.19750973410777, -75.19659360985185, -75.19443548410442, -75.19213085881688, -75.18875198418357, -75.18643948386506, -75.18351760983256, -75.18044335995273, -75.17852723516307, -75.17688860993508, -75.17600198381751, -75.17480660900958, -75.17352148391444, -75.173218733991, -75.17999223413648, -75.1822968599235, -75.18338285977404, -75.18724011009328, -75.18908786007069, -75.19039060880829, -75.19096286020743, -75.19353323494937, -75.19743548407143, -75.19924410995401, -75.20067385988443, -75.20143360996087, -75.20238673386291, -75.2050527347858, -75.20847848494634, -75.21028710979664, -75.21257223488152, -75.21552348416702, -75.21771285920863, -75.22187111011863, -75.23419135979907, -75.23463673377455, -75.23518748483019, -75.23652735908092, -75.23967573410738, -75.24243361003971, -75.2444022351147, -75.24629298498576, -75.24789448494153, -75.26144335922277, -75.27930473392661, -75.28793360883787, -75.28823823413148, -75.29363286020288, -75.2971503589057, -75.29998636014335, -75.30324998406797, -75.30473823498636, -75.30872261020085, -75.32629486011592, -75.32875786018633, -75.32968161005624, -75.33107810920109, -75.33108598486422, -75.3306269839544, -75.32939848519595, -75.32828710997478, -75.3277267338919, -75.32701760912431, -75.32457598521671, -75.32333786004773, -75.3144843599402, -75.31063861013075, -75.31059811012011, -75.31036961002894, -75.3099113588807, -75.30464685988397, -75.30306961015356, -75.3015653588925, -75.29987885993188, -75.29869360882827, -75.2978274851356, -75.2976104850456, -75.29702735980004, -75.29684485990714, -75.29620773493508, -75.29461510994275, -75.29413723521441, -75.29397798413402, -75.29406998505561, -75.29413710992816, -75.29371711011817, -75.29329523495892, -75.2926349851545, -75.2920911099713, -75.29140961002486, -75.29070073512855, -75.28952848482243, -75.28848048388858, -75.28622686015348, -75.28452811010743, -75.2826168590953, -75.28059948521934, -75.27921898499596, -75.27879435985193, -75.27898735995848, -75.27846048508178, -75.27804448519782, -75.277146358778, -75.2767089851593, -75.27582160978608, -75.27565148391722, -75.27573661009535, -75.27633823508313, -75.2770004851223, -75.27820148478185, -75.27988510990622, -75.28039498501522, -75.28053398414045, -75.28097485913963, -75.2818516099897, -75.2827113598492, -75.28308223483208, -75.28328010910735, -75.28330148502164, -75.28289686012033, -75.28255960912901, -75.2823742351136, -75.28240798491822, -75.28286736016344, -75.28372298409442, -75.28485248416462, -75.28581348385546, -75.28658823479486, -75.28711160889145, -75.28738135893104, -75.2878028592084, -75.28793773499223, -75.28822436008011, -75.28969285889417, -75.29427273463745, -75.29642098397909, -75.29816010999048, -75.30072711013804, -75.30264086029058, -75.30359773454632, -75.3048264854433, -75.30609173539113, -75.31165173520435, -75.31715398387632, -75.32122073492371, -75.32520785871282, -75.33031135891332, -75.33868123504931, -75.34591348387505, -75.3473947337634, -75.34827310920116, -75.35019173525853, -75.35361935862846, -75.35667610883564, -75.3597678587384, -75.36394936009009, -75.36759648536662, -75.36935598512645, -75.37178748460849, -75.37354711029434, -75.37617060984354, -75.37818598464753, -75.3797214846266, -75.38125235997052, -75.38326011006365, -75.38957060880614, -75.39575498515558, -75.39805323545329, -75.3995958597389, -75.40176185911275, -75.40320536031157, -75.40365185985263, -75.40590273418383, -75.4069273597745, -75.40712186031277, -75.40723660893207, -75.40948273466432, -75.41024723434549, -75.41076123363155, -75.4110596096462, -75.41118161010172, -75.41111385975114, -75.41108673527731, -75.41122223542993, -75.41131723530492, -75.41137148386235, -75.41134598514765, -75.41114548514474, -75.41038811043433, -75.40984285862646, -75.40932398543612, -75.40933748476363, -75.40951386008987, -75.40953823510546, -75.40990423523846, -75.4099639845656, -75.40960048527847, -75.40896423470821, -75.40791385968117, -75.40712735866333, -75.40609686016427, -75.40467311024338, -75.40394173478433, -75.40297298496995, -75.40177585993945, -75.39856086042477, -75.39769961035961, -75.39662335880439, -75.39635386016835, -75.39576223367652, -75.39554723500993, -75.39565460978434, -75.3961937337802, -75.3972152346812, -75.39787023360287, -75.39824048492227, -75.39854123542688, -75.39879573472376, -75.3988419853768, -75.39923360967936, -75.39974435994867, -75.40136398380565, -75.40232848494759, -75.4028128599154, -75.40361960993107, -75.40426210860898, -75.40443210973808, -75.40443773519479, -75.4044806099347, -75.40423823381838, -75.40441998486176, -75.40478361001448, -75.40584385895062, -75.40729785958649, -75.40975423457525, -75.41093786034173, -75.41212148493906, -75.41341248478682, -75.41443586031193, -75.41615848485645, -75.41820348468622, -75.41949573464126, -75.4199103604297, -75.42029485980646, -75.42078936017896, -75.42144210921509, -75.42223861002577, -75.42291635964813, -75.42445735920887, -75.42553923537434, -75.42630336029907, -75.42704398466981, -75.4281507341862, -75.42972786003861, -75.43080135978306, -75.43161586045062, -75.43226361041235, -75.43299948482411, -75.43355935998517, -75.43483648536227, -75.43579885976072, -75.43665048499793, -75.43732661018709, -75.43794611038135, -75.43844585896272, -75.43972048483874, -75.44076986011999, -75.44174061016753, -75.44270310966374, -75.44379523478216, -75.44466523504451, -75.44555048472455, -75.44699698505241, -75.44862436035669, -75.44955173543724, -75.44971836015242, -75.45006998544602, -75.45055123464925, -75.45076736031268, -75.45080273524076, -75.45089523478225, -75.45127373533575, -75.4517657346359, -75.45225773496037, -75.45237123475147, -75.45244698384823, -75.45309036032484, -75.45369598516152, -75.45502060999303, -75.4560803597418, -75.45713998537838, -75.45907023456624, -75.46088248539837, -75.46230860971542, -75.46210011020935, -75.46190010997071, -75.46243348483972, -75.46350011005666, -75.46436673490888, -75.46436673414615, -75.46470011026003, -75.46576673376478, -75.46623335882992, -75.46610010958585, -75.46590010995192, -75.4668333595601, -75.4680999848166, -75.46796673467662, -75.46769998513514, -75.46709998527325, -75.46777598518912, -75.46964536030356, -75.47151473492283, -75.47322823474343, -75.47455248474012, -75.47595448471213, -75.47657760973794, -75.47774598536569, -75.4782912347656, -75.47945948457635, -75.4803163601722, -75.48195198506824, -75.48249723497719, -75.484522485154, -75.48608023460395, -75.48740435991613, -75.48950748496452, -75.49075373462728, -75.49129898541742, -75.49207785957458, -75.49254523417494, -75.49371348524107, -75.49511560992966, -75.49620598510171, -75.49753023384773, -75.49885436016893, -75.50196998412343, -75.50469610893845, -75.50625398489291, -75.50801998544216, -75.50837360925715, -75.50831510879806, -75.50858448507341, -75.50897823503539, -75.5092199852275, -75.50972873506095, -75.51051173460081, -75.51148573491048, -75.51221111021556, -75.51351673429292, -75.51471861021423, -75.51554760959579, -75.51701898541563, -75.51894623387494, -75.52054198519073, -75.52155748493783, -75.52253148529621, -75.52381623530039, -75.52450010918596, -75.52908010985163, -75.53009548531764, -75.53111098482958, -75.53220935957046, -75.53297611039329, -75.53410123528619, -75.53555623534112, -75.53710223527628, -75.53864811002649, -75.54164911042699, -75.5439226088464, -75.54482585964507, -75.54601410985396, -75.54719636008059, -75.54837860986044, -75.54955598458685, -75.55058160982668, -75.5512422353138, -75.55216398496196, -75.55335610980427, -75.55460623458879, -75.55549460962976, -75.55700560972866, -75.55797873459807, -75.55892760973177, -75.55962098473145, -75.56014211024382, -75.56073973535649, -75.56020048530877, -75.56029148475864, -75.56038236002308, -75.56183748538336, -75.5656568603763, -75.56902161043342, -75.5720224848053, -75.57629660986146, -75.57911573532618, -75.58054211012188, -75.58197535966644, -75.58448110997813, -75.58648173539945, -75.58848235992087, -75.59039211010992, -75.5913923600753, -75.5922108600393, -75.59227336002749, -75.59291386001468, -75.59286398521874, -75.59257048488985, -75.59239373516067, -75.59233411011763, -75.59297360997436, -75.59343886003762, -75.59431198516182, -75.59530248420816, -75.59617673499974, -75.59681848481108, -75.5983934848523, -75.59955923505998, -75.60060823519802, -75.60183148513516, -75.6030547351861, -75.6042788600522, -75.60544485991232, -75.60631960986916, -75.60818448506814, -75.60975773515781, -75.61127386011128, -75.61261473492596, -75.61401298494218, -75.61552798503163, -75.61710035980906, -75.61826510986765, -75.61937198502488, -75.6204208602091, -75.6213522348794, -75.62240048516497, -75.62344798487959, -75.6243803599126, -75.62513836001483, -75.62624648508114, -75.62700548507519, -75.6275904848062, -75.62829185999777, -75.62911010987182, -75.62992785983994, -75.63097736011406, -75.63214335979967, -75.6344163600042, -75.63569873477462, -75.63709786015482, -75.63878673510033, -75.6398352348811, -75.641408609888, -75.64298286002634, -75.64395223521063, -75.64407985985417, -75.64508298511856, -75.6461331101425, -75.646833610018, -75.64770798507357, -75.64922348490478, -75.65097073518012, -75.65312573508305, -75.65580448496434, -75.65813373492864, -75.65941448491242, -75.6610442350484, -75.6625584850126, -75.66413148498935, -75.66453911004163, -75.66541086011705, -75.6671593600538, -75.66914098500166, -75.67106385979503, -75.67275398515989, -75.67327748494324, -75.67373923481051, -75.67397098521116, -75.67449373491723, -75.67577298479387, -75.67682035985518, -75.67780886004152, -75.67809723509993, -75.67867735987608, -75.67902485986934, -75.67890585986083, -75.67931211021875, -75.68012548512803, -75.68041536007422, -75.68035523508718, -75.68052873482878, -75.68140061010126, -75.68158273479429, -75.68165623504422, -75.68175198485199, -75.68186460983412, -75.68296948496072, -75.68448185992406, -75.68535436003754, -75.68710110987678, -75.68849773485096, -75.69082673522013, -75.69315573508464, -75.69368011008095, -75.69376536013476, -75.69422073520138, -75.69522260993631, -75.69564848506911, -75.69567848484218, -75.69571910989958, -75.69746735983449, -75.69898373510796, -75.70027148498258, -75.70044223480329, -75.70172623492897, -75.70312661016555, -75.70487523502021, -75.7060413601518, -75.70755598479155, -75.70930335996127, -75.71040786005534, -75.71157111012343, -75.71291073508706, -75.71448323492461, -75.71564736006462, -75.71686873514182, -75.71791598514778, -75.71966286001629, -75.72088448510175, -75.7223958601686, -75.72379223492669, -75.72483985999133, -75.7256546097928, -75.72681910990326, -75.72850498477266, -75.72955123519398, -75.73042273513494, -75.73088623503952, -75.7312343601107, -75.73204773513982, -75.73321085996656, -75.73478110998428, -75.73605998502512, -75.73681511004594, -75.73739573503872, -75.73803261003349, -75.73826135993556, -75.7386674848313, -75.73959673490145, -75.73967735983473, -75.74023598489208, -75.7412844849934, -75.74303273517154, -75.74443135999718, -75.74559710986154, -75.74746173477627, -75.74845298514634, -75.7496777349869, -75.75061011013554, -75.75258911001544, -75.75270923587118, -75.75305073505905, -75.75308011002426, -75.75299410982939, -75.75242386005834, -75.75228123509731, -75.75213861012418, -75.75196673493826, -75.75179486001304, -75.75170898492291, -75.75182423499086, -75.75222260994042, -75.752509735091, -75.75256635983811, -75.75267773502259, -75.75285736013006, -75.7528573599568, -75.75282036001323, -75.75282035987976, -75.75292773491458, -75.75307223511686, -75.75303511006462, -75.75332223502642, -75.75410935992568, -75.75478910989654, -75.75543361011682, -75.75572073495346, -75.75582810978818, -75.75582810985782, -75.75600798613056, -75.75661523514924, -75.75738673517895, -75.758089860121, -75.75875198495851, -75.75910160993931, -75.75937498516845, -75.75945310996974, -75.75949223505984, -75.75921873506474, -75.75917973499912, -75.75945311020342, -75.7599198598885, -75.76054486008678, -75.76089448599288, -75.7611542352114, -75.76140823486566, -75.76131248508227, -75.7613339852187, -75.76142973514942, -75.76137698620545, -75.76134373484342, -75.7612187348538, -75.76068161014393, -75.76022848513759, -75.75983785978156, -75.75940623498553, -75.75897473487925, -75.75862710982926, -75.75841598486596, -75.75814260987079, -75.75790035982152, -75.75728911015614, -75.75662498485383, -75.75633010995301, -75.75604485993773, -75.75574023498234, -75.75525585987799, -75.7548769849056, -75.7545391101711, -75.75435935990521, -75.75420110994321, -75.75422260980804, -75.75416985980979, -75.75430660978475, -75.75457035995385, -75.7551718600298, -75.7554667351273, -75.75550785998246, -75.75533011004859, -75.75487698496795, -75.75438086004368, -75.75410735991574, -75.75369536010538, -75.7534003600299, -75.75292773513058, -75.7525683600482, -75.75221098517244, -75.75197848498277, -75.75152535981783, -75.75125186000747, -75.75110548481416, -75.75115423490666, -75.75122848489104, -75.75158598490702, -75.75209173521029, -75.75240423522166, -75.75252348477261, -75.75258598480582, -75.75269335977652, -75.75279098496401, -75.75292573503282, -75.75293361019686, -75.75292186003566, -75.752882860157, -75.75279885982275, -75.75262886021494, -75.7524551101717, -75.75231048486546, -75.7521757348295, -75.75204685982465, -75.75191211021593, -75.75183786001583, -75.75186323482819, -75.75183010994044, -75.75169135980633, -75.75156835986718, -75.75126948605396, -75.75107610981752, -75.75083398482758, -75.75055860994166, -75.75040623502952, -75.7500683600964, -75.74966798505113, -75.7492363598297, -75.7489374848667, -75.74862698517353, -75.74815036002315, -75.74737685997462, -75.74678123495528, -75.74623236001315, -75.74552923514159, -75.74497660987595, -75.74480473512284, -75.74450585990468, -75.74420698517906, -75.7440369849212, -75.74397261016935, -75.74397260994323, -75.74356836010179, -75.7427578597975, -75.7416562350524, -75.74044535981926, -75.73954673503135, -75.73859173494577, -75.73759561007313, -75.73649798515049, -75.73557223490286, -75.7342773599637, -75.73254498498324, -75.73151173489975, -75.73009173506563, -75.72892773482266, -75.72779885983778, -75.72681635990676, -75.72597848484378, -75.72504686018385, -75.72466986011608, -75.72446873502525, -75.72419335992834, -75.72383986014546, -75.72284173501333, -75.72216986006299, -75.72120111014544, -75.7203516100397, -75.71956248507934, -75.71891985990607, -75.71795323515562, -75.7175547350019, -75.71701173504198, -75.7165507350652, -75.71628323515517, -75.71632611011529, -75.7165058597995, -75.71673048494057, -75.71704298521075, -75.71704298519461, -75.71690823505128, -75.71668548484485, -75.71659573509947, -75.71678911000964, -75.71718548479578, -75.71742973484663, -75.71749023487428, -75.71726561015271, -75.716744109979, -75.71637110992049, -75.71571673483237, -75.71511910977756, -75.71440023487253, -75.71411136013853, -75.71416410996022, -75.71450786007455, -75.71479098495763, -75.71408785986813, -75.71483598480512, -75.7151191102069, -75.71591210987003, -75.71642386001201, -75.71733785979575, -75.71889448518027, -75.72177923479029, -75.72299998483527, -75.72351348501473, -75.72423236010343, -75.72450386004095, -75.72454485986373, -75.72450385985826, -75.72435161008292, -75.72429485977312, -75.72444735997038, -75.72450198480703, -75.72431835982621, -75.72420710987768, -75.72376173496906, -75.72347261022759, -75.72323636014062, -75.72333598501922, -75.72298435981799, -75.72182423508491, -75.72100786018177, -75.72094711012204, -75.7212363600305, -75.72123048504477, -75.72094711016439, -75.72011898522715, -75.71958598478221, -75.71905273517064, -75.71834173481062, -75.71705073496327, -75.71658398512278, -75.71640823502378, -75.71373823500795, -75.71147073498497, -75.71151761009338, -75.71186135994219, -75.71454685997873, -75.71442385994618, -75.71343160999533, -75.71249410985348, -75.71231836008707, -75.71231048518274, -75.71294336000614, -75.71599611008139, -75.71656836010061, -75.71661323491213, -75.71614060999497, -75.7153847348842, -75.71508785999072, -75.7142538598282, -75.71360160987263, -75.71324610990939, -75.71330661016174, -75.71345510997764, -75.7134551101957, -75.7137382351965, -75.71373823499107, -75.71379098478695, -75.71388286009397, -75.71385160978957, -75.71309573516481, -75.7129766098426, -75.71308973504932, -75.71267773492798, -75.71255461021303, -75.71092973497764, -75.71028910991242, -75.70976948506546, -75.706292985083, -75.70460548512153, -75.7039101101887, -75.70315623481832, -75.70072261010563, -75.69997661002452, -75.69957223487853, -75.69900786010987, -75.69834173483525, -75.69769548485817, -75.69626173508044, -75.69521285993193, -75.69404098501298, -75.6930722349012, -75.69254885990256, -75.69125598513682, -75.69044923499848, -75.6886523601217, -75.68778510997902, -75.68701760981838, -75.6853711098887, -75.6813729849465, -75.68038861020636, -75.67957223516186, -75.67905473512968, -75.67811523513728, -75.67758985992674, -75.67769535978204, -75.6784354851406, -75.6781992349197, -75.67772660981319, -75.67691798487249, -75.67527735992383, -75.67347661008301, -75.67243161003898, -75.67201948514844, -75.67172260978555, -75.67061523516014, -75.66924223487547, -75.66895698501804, -75.66874798497321, -75.66819135997531, -75.66758598494192, -75.66539848479488, -75.6637109852195, -75.66307811000041, -75.66220311020146, -75.66125586010446, -75.66093948521444, -75.66093948515669, -75.66102536002296, -75.66157035987965, -75.66183010988732, -75.66188660988576, -75.66162886007936, -75.66105473501108, -75.6608242351088, -75.66079685998398, -75.66030873515308, -75.65956248491489, -75.65818361006404, -75.65740236013824, -75.65583786007761, -75.65478510981154, -75.65350385990553, -75.65268748486312, -75.65141211020676, -75.64908598497408, -75.64414261009733, -75.64106823498446, -75.63636135988133, -75.63363085986379, -75.63316728026996, -75.63252348493648, -75.63135348514993, -75.62989848498404, -75.62977535991757, -75.63005861008236, -75.63005860979604, -75.62871485980679, -75.62777736009878, -75.62771673499572, -75.62789061022647, -75.62863861016302, -75.62915023489398, -75.62917748675841, -75.62916997958547, -75.62836129960783, -75.62719111614729, -75.62621517663877, -75.62514202688055, -75.62407131064197, -75.62309606303006, -75.62192500162826, -75.62065724753819, -75.61919488748379, -75.61743967126426, -75.61665987815371, -75.6154883002344, -75.61392614377598, -75.61236331093392, -75.61255587126811, -75.6122584216995, -75.61137767406547, -75.60942668413679, -75.60757460347884, -75.60669911198505, -75.60543185970874, -75.6045546702959, -75.60367899193693, -75.60338883389153, -75.60270692172327, -75.60065949925917, -75.59948794103809, -75.59812026577288, -75.59665370982185, -75.5961639214654, -75.59440554132641, -75.59372213410245, -75.5917698069918, -75.58952497585693, -75.58757331665487, -75.58630538412558, -75.58454803101341, -75.5834726168618, -75.58220209648312, -75.5796646324709, -75.57810387444488, -75.57644603836741, -75.57449488657898, -75.57225042346272, -75.57039603602226, -75.56805402380633, -75.56514154843018, -75.56247326828276, -75.56042347056439, -75.55729962252144, -75.55437090860153, -75.55212557065249, -75.5505634431438, -75.54880697236837, -75.54695310053563, -75.54587952704168, -75.54412230740951, -75.5413896881991, -75.53982834472862, -75.53826685478566, -75.53670342915865, -75.5351409103443, -75.53328410749606, -75.5308439213286, -75.5284043334625, -75.5259644583893, -75.52401105257468, -75.52166730549328, -75.51795856208633, -75.51542261746084, -75.51356953911744, -75.51161890370327, -75.50966798147311, -75.50781306054301, -75.50595927293477, -75.50293219897901, -75.49867973366031, -75.49682623514423, -75.49439060904342, -75.493644484833, -75.49260161017827, -75.48987498408724, -75.48912110986038, -75.48779298361984, -75.48668748506287, -75.48523635976835, -75.48407811034718, -75.48274223531996, -75.48256635880074, -75.48227536002537, -75.48140623474632, -75.47653910979011, -75.47329098493668, -75.47283198471678, -75.47132035914603, -75.47050198512369, -75.46975785883501, -75.46766598456958, -75.46674410996803, -75.46547073398978, -75.46505660859907, -75.46436323457431, -75.4607167339002, -75.4591444851759, -75.45827548528536, -75.45722111043534, -75.45625460868604, -75.45608198483109, -75.45605073520306, -75.45618360969269, -75.4558944847775, -75.45531448412197, -75.45513861028758, -75.45426173519832, -75.45403323479502, -75.45321686035061, -75.45298048516122, -75.4532089853156, -75.45361323464658, -75.45326761038524, -75.45193560956176, -75.451644484361, -75.45164448519154, -75.45199023412874, -75.45203679608483, -75.45196794360777, -75.45100224144926, -75.45037906889866, -75.44956407114836, -75.44913302667055, -75.44788673971044, -75.44716762282849, -75.44654499175869, -75.44587405606467, -75.44525094046287, -75.4446755252809, -75.44376452177306, -75.44256557309342, -75.44189439638569, -75.44107987301021, -75.4404567557794, -75.43968957654192, -75.43897004219679, -75.4382984503373, -75.43786626947468, -75.43690685677416, -75.43609156422639, -75.43426998131042, -75.43297580688039, -75.43144175028146, -75.43029116373259, -75.42971604463162, -75.4289493343299, -75.42808674027373, -75.42731910310255, -75.42664775381189, -75.42578469802845, -75.42482524359707, -75.42386573464819, -75.42285834494237, -75.4219948377712, -75.42103539433475, -75.41964460031926, -75.4184940219069, -75.41753548850772, -75.41672100147451, -75.41624238017948, -75.4156671447322, -75.41475621007783, -75.41403782278826, -75.41322360649673, -75.41236116716203, -75.41130696050317, -75.41058822962702, -75.40958162754356, -75.4089112222727, -75.40828875601522, -75.40781011234998, -75.40733146689837, -75.4070445319552, -75.40685347986556, -75.40627850654647, -75.40565553540455, -75.40474518490339, -75.40367045512045, -75.4022527413498, -75.40129368135962, -75.4004780694616, -75.39975866828689, -75.39884787760224, -75.39831986868165, -75.39745626819916, -75.39611352000003, -75.39443582137369, -75.39314170885461, -75.39232696093359, -75.39060205285995, -75.38921283670982, -75.38715346627049, -75.38581217112176, -75.38475831697508, -75.38322544360176, -75.38173983122198, -75.38049346604112, -75.37895872294717, -75.37728092115395, -75.37665837503317, -75.37617955446751, -75.37488574669555, -75.37339995834861, -75.37215373229958, -75.37095464405996, -75.3700431186806, -75.36874780075868, -75.36750053125041, -75.36601320484408, -75.3645741259848, -75.36327981546873, -75.36222570855426, -75.36155504471174, -75.3608358008733, -75.35968502115674, -75.3586789936096, -75.35781616190474, -75.35676097717288, -75.35575354541896, -75.35469870212944, -75.35340318767044, -75.35244385249575, -75.3515326053128, -75.35055112946156, -75.34949079824702, -75.34891202176135, -75.34842914224646, -75.3488129043846, -75.3484264900456, -75.34717325261175, -75.34601600812852, -75.34505197095433, -75.34428066690452, -75.34485755103026, -75.34456742476965, -75.34302557807132, -75.3416762762335, -75.34071206750946, -75.34061468408953, -75.34003594052803, -75.33916828883844, -75.33781817443219, -75.33646706216717, -75.3356960604757, -75.335020785783, -75.3340569675077, -75.33290105670028, -75.33097441072869, -75.32769883666481, -75.32480879239716, -75.32201492104804, -75.32066607654247, -75.31902865357705, -75.31797010604475]),
 array('d', [-9.295288689326071, -9.297586845172532, -9.299406547690069, -9.30065156092951, -9.301609400474774, -9.302088700656896, -9.301537673150904, -9.30261722686015, -9.304294977423012, -9.3050389772132, -9.306884727071406, -9.307402353148234, -9.308607477017233, -9.31028322673086, -9.312123101588156, -9.31224222829104, -9.311890601627624, -9.31137697756975, -9.310464727127624, -9.309831976742544, -9.309199226549595, -9.30805072706903, -9.306730477602457, -9.305462851959419, -9.304486353125014, -9.306097602971477, -9.306613226815784, -9.307013727898493, -9.309773476985868, -9.311156227203924, -9.3137988531509, -9.314947227828043, -9.316097601816978, -9.317193352102095, -9.317880851892426, -9.318513728192386, -9.318859353046093, -9.31885935222249, -9.318400351860532, -9.318290977847653, -9.318980477115929, -9.319037102847233, -9.319732477110279, -9.320593602826591, -9.32191410297537, -9.322665977777206, -9.323064477110563, -9.323238353090801, -9.323068351984205, -9.32180472702862, -9.322095727212798, -9.3224257278207, -9.322665976876578, -9.32490822684042, -9.32497660208685, -9.326585976948309, -9.327040976956653, -9.328373103134311, -9.330265603041028, -9.332628852789924, -9.33578710306108, -9.338494102147024, -9.34039447807362, -9.343779351870865, -9.345453102992735, -9.348120763753286, -9.351318352969884, -9.353615227935677, -9.355164101898026, -9.357353477922913, -9.358449226840605, -9.35988085316393, -9.36063285302572, -9.362244102178636, -9.36264260200005, -9.365402351796376, -9.367593727156589, -9.370869102850065, -9.372824227114108, -9.374380852140575, -9.37560747787552, -9.376789101980819, -9.378679726881103, -9.395634602793507, -9.407708977009406, -9.41195897717057, -9.417476602854833, -9.425632851834393, -9.43729885294539, -9.444703102996982, -9.449939476891984, -9.452751976780803, -9.462056601901338, -9.469816351872169, -9.472798853194263, -9.4735801021763, -9.474447226986229, -9.475548852223028, -9.476652353101258, -9.477517601913064, -9.479093603059539, -9.480732477953609, -9.484005853137944, -9.488716852918799, -9.490154352830473, -9.49193747693954, -9.494066352219079, -9.496189477146402, -9.497519477194828, -9.500042977164242, -9.504339852076043, -9.507087853184544, -9.511201227912068, -9.51367772716884, -9.515687478194593, -9.517427727098607, -9.519236352793314, -9.522513727971045, -9.525568352124537, -9.529232478087692, -9.53121872698398, -9.533203103186622, -9.534121102877293, -9.534581977019968, -9.535652352209524, -9.538095728053577, -9.538861351936873, -9.53995697702453, -9.54150785193417, -9.54252535290209, -9.543632852029532, -9.544917978033538, -9.546195353148619, -9.552755852196299, -9.556419977064422, -9.559931602092377, -9.585427726952616, -9.592603477820774, -9.595681601891613, -9.596632852149924, -9.59891797795592, -9.601583977994665, -9.603677728073478, -9.606154352809085, -9.607771477000824, -9.60881835287222, -9.609960851897313, -9.610722602783028, -9.611675727786405, -9.612722601874566, -9.615005853111143, -9.615863228100466, -9.618847603121253, -9.62860935316263, -9.629753852047486, -9.630777353220083, -9.632273478031323, -9.635818352213846, -9.638574227151992, -9.64054297795525, -9.641802726840979, -9.643564477148061, -9.65408985314258, -9.67239847695987, -9.680177728062631, -9.680331976838204, -9.685670103143138, -9.68879297817017, -9.691488228167486, -9.695742227981839, -9.697728478013858, -9.700316226779421, -9.723353478217518, -9.72732422697652, -9.729611353038194, -9.736175727957288, -9.743962852940342, -9.747781226975349, -9.751753852985303, -9.753955103072656, -9.755132852098257, -9.756314477810292, -9.75977935288995, -9.760902351974039, -9.771003853056698, -9.774671853028451, -9.775015602840142, -9.775525226833395, -9.776104601887482, -9.781847103100745, -9.78362210278425, -9.785810351830207, -9.788590852832215, -9.791371476929953, -9.793604978058227, -9.794262102780692, -9.797296978111206, -9.799776478050433, -9.801846977963237, -9.805297727940626, -9.80641260211263, -9.807899102208353, -9.81038022791654, -9.812022976982007, -9.814186976887129, -9.81508935282369, -9.816171477773707, -9.8169099778072, -9.817958353193433, -9.81870897807363, -9.820349977153967, -9.82174747685076, -9.824861226840767, -9.827568728137521, -9.83048872821729, -9.834788978097833, -9.838239727906512, -9.841265853078369, -9.843581228089022, -9.84559097797711, -9.84651985289446, -9.847821977802084, -9.848656227978779, -9.84976410315278, -9.85063310296755, -9.85206985314045, -9.854354978030528, -9.855919351885518, -9.857122477850453, -9.858444852067407, -9.859055603158424, -9.859197851837223, -9.85964835289974, -9.860390102905512, -9.860980228167932, -9.861452227036295, -9.861999476788299, -9.862531352935434, -9.863020228035452, -9.863348977920793, -9.864006477931412, -9.864731352784645, -9.865330728190543, -9.865742977967102, -9.866063228044027, -9.866316103195516, -9.866483853153113, -9.867024227074523, -9.86764810301213, -9.869418227947563, -9.870278103201201, -9.870699603160062, -9.8707958525589, -9.871095852667509, -9.870609852650034, -9.871350478259671, -9.87244385311385, -9.87324135283427, -9.873241353103026, -9.871787227781908, -9.871870101873014, -9.873958977956079, -9.8761119778776, -9.876909477778497, -9.876909477786853, -9.87555385167866, -9.874005227078896, -9.874478977680326, -9.874576102736057, -9.874575853435033, -9.87422410280351, -9.873403727666414, -9.872548353371826, -9.871802227810463, -9.871216853222393, -9.870960728039279, -9.870832602448615, -9.871152727750996, -9.871888478185326, -9.872240477222704, -9.872336352973264, -9.872432353411057, -9.872618603033288, -9.872921353266236, -9.87428860284433, -9.876528228039604, -9.877679103240894, -9.878455603320731, -9.87992222786994, -9.881285977619768, -9.881774102088343, -9.884651852727927, -9.885858102604061, -9.886003353192791, -9.886082602655506, -9.887151853115427, -9.887328477394192, -9.887585477797472, -9.888005728444796, -9.88842610302828, -9.888900728124213, -9.889931228379226, -9.890758351601676, -9.891666853392792, -9.892466853002816, -9.893032727893797, -9.893918977161093, -9.894645977703703, -9.894918601849781, -9.895504102561176, -9.89629060265787, -9.897076977609231, -9.897433228066632, -9.899164102749864, -9.90061410280589, -9.90200760295511, -9.902825602670362, -9.903178727858858, -9.90328722800291, -9.903422727673785, -9.903829602693747, -9.904059977609336, -9.9044897277617, -9.905267102802213, -9.90696435257911, -9.907772977635545, -9.908956478040523, -9.909548351863805, -9.911485853109014, -9.912776853437151, -9.913960477365663, -9.914876477563041, -9.916220227828319, -9.916801728432063, -9.917426476959918, -9.918120603137424, -9.918907227779812, -9.918953478369303, -9.919555853219322, -9.920341727793812, -9.921706853079058, -9.9226244769618, -9.923862728340907, -9.925098978232711, -9.926030728050819, -9.92651385307488, -9.92664672843199, -9.927546228241056, -9.928515602782568, -9.929424477714235, -9.930212103389579, -9.930636227842683, -9.930696852827339, -9.931073728044225, -9.9316108530424, -9.932848978082063, -9.936024853352706, -9.93785297811877, -9.939575602551997, -9.941298352780166, -9.942275852910257, -9.942634477018544, -9.94296685273622, -9.94325160310808, -9.943435103401157, -9.943558103232192, -9.943565977998162, -9.943106853218922, -9.942360852879347, -9.94206985295051, -9.941958602850264, -9.941880352603619, -9.94144047758499, -9.941014728040727, -9.94070010263647, -9.940366977872316, -9.93965335285651, -9.93920085336913, -9.938460353359801, -9.937942103050034, -9.937682977936845, -9.937538103085785, -9.93738685322927, -9.93720172785379, -9.936674478198995, -9.936366728412906, -9.936257728423584, -9.936442852587959, -9.936850103308018, -9.937257228420322, -9.937889478195416, -9.939228853284305, -9.940931977841615, -9.941551603435187, -9.942310477574381, -9.943032352965133, -9.943576228112533, -9.94373247832715, -9.943757853412933, -9.94505735333081, -9.946533477816956, -9.948387977332402, -9.949977603296418, -9.951756352749499, -9.95349735312675, -9.954897728302512, -9.955768227760245, -9.956222352792508, -9.956222352893917, -9.956903602763077, -9.957584852709374, -9.956803353142902, -9.957284477807207, -9.959169603034752, -9.960836352991066, -9.961636228046643, -9.963369603253113, -9.965969477827684, -9.967169477963466, -9.96950285314881, -9.971102728302867, -9.973569352664867, -9.975902727977939, -9.977835977676932, -9.979569352798478, -9.981169227901034, -9.982635853000772, -9.985502478349986, -9.9883691020014, -9.989058977825607, -9.989837852925234, -9.990694727722143, -9.991940977830382, -9.992174602625369, -9.990772603315406, -9.989526352637824, -9.988046353387972, -9.986722228037479, -9.985242352847422, -9.98508660310057, -9.983918228351342, -9.983061353335415, -9.982048853255549, -9.982048853402262, -9.982048853220192, -9.981815102661301, -9.981425728310853, -9.980724727966503, -9.980023602859092, -9.97994572822222, -9.979945728246832, -9.980023602713857, -9.980101603325465, -9.980101602907268, -9.979789978309498, -9.979166852613048, -9.979088978123343, -9.9790889776462, -9.979139978156695, -9.978627602678387, -9.977662477783213, -9.976916478248768, -9.977372352733767, -9.977969977735995, -9.978488228344077, -9.978843727769345, -9.979154602945528, -9.979506852858776, -9.980107852747551, -9.980605228391028, -9.981102602797193, -9.981371977416416, -9.981662102737346, -9.981599977760254, -9.981496353016269, -9.981206227704774, -9.9809161027448, -9.98064672812211, -9.981061227827809, -9.980957602813419, -9.980646728114209, -9.98070885265821, -9.980868352815719, -9.980868353360904, -9.98032272769899, -9.979958977651847, -9.980140853296916, -9.981050227676576, -9.981868727928429, -9.983349228135296, -9.984324103313497, -9.984687853143953, -9.98441497805527, -9.982998353363143, -9.982314602768781, -9.981693477865463, -9.980135727597485, -9.978286603187712, -9.976752478044773, -9.976024228243148, -9.975196853225668, -9.974418227987542, -9.973153102659467, -9.972629353395178, -9.97187222828802, -9.970112727728178, -9.9676823525798, -9.96604547770039, -9.964135728096267, -9.96322635284605, -9.962498852649503, -9.961316602561453, -9.960770977755146, -9.958952228073542, -9.959134102772396, -9.95941610270512, -9.958523977672428, -9.958133853423192, -9.9573153531436, -9.956405976672443, -9.955587478346445, -9.95467810339943, -9.952768477954976, -9.951962353126419, -9.950324602927651, -9.949603103203685, -9.948447978083152, -9.947408103157784, -9.946599227130037, -9.945731353171027, -9.945152727972982, -9.944515478065625, -9.944340353046698, -9.94433885289925, -9.944684352837669, -9.945374978173447, -9.945372978190164, -9.945313228111331, -9.944906602985668, -9.94455760280357, -9.944613227958598, -9.944784478068527, -9.94501397800775, -9.9448951030015, -9.944661102974408, -9.945062853038621, -9.945233727871312, -9.944884477909113, -9.944708353116596, -9.944011977839239, -9.943489728209727, -9.943198852919465, -9.943081352840068, -9.942443978111953, -9.941979727906471, -9.941168853171177, -9.941051477845008, -9.941223478054894, -9.94162585315189, -9.942260102916862, -9.94341460279702, -9.94445347806709, -9.945607603223777, -9.94653060297702, -9.946759727941185, -9.946873102965924, -9.946868851979445, -9.94692422679492, -9.94703710309733, -9.946340478176694, -9.945991727022601, -9.945873103169902, -9.946159102984836, -9.946561478208196, -9.946506353189932, -9.947079603055215, -9.947597602865642, -9.94817410193042, -9.948230227865508, -9.948227228193616, -9.947588227893903, -9.946832853167336, -9.945614103206026, -9.94456947808851, -9.94381572815837, -9.942714602222622, -9.94213372799868, -9.941841727966164, -9.941667601910012, -9.940394603148604, -9.94039110317948, -9.940387227938004, -9.940152228092927, -9.940148853097014, -9.939627728132848, -9.937430978190093, -9.936737102896075, -9.935869353138798, -9.934422102859855, -9.933610977790636, -9.932453353111214, -9.931008227791551, -9.929677977858148, -9.92863722792481, -9.927423977878505, -9.926614102841427, -9.925399103217671, -9.924647228170386, -9.92372285320323, -9.923086852954782, -9.921987228045055, -9.921515103202182, -9.92144535306221, -9.921339227906628, -9.920888352997679, -9.919730477884002, -9.918282852897562, -9.917471978221784, -9.91671722800561, -9.915732103180062, -9.914687228026253, -9.913700103142844, -9.913641227946925, -9.913688227934813, -9.913494227894262, -9.913212853001085, -9.91325397806969, -9.91326485197709, -9.913232477996246, -9.913228853154123, -9.913745727962407, -9.91440635282379, -9.914493977985671, -9.915357978127531, -9.916163978043471, -9.916275978073998, -9.916504602792088, -9.916270226795746, -9.915804352939915, -9.91447297807838, -9.91343035321023, -9.913080853015856, -9.912615227803258, -9.911919353085295, -9.910818852980583, -9.910007727914262, -9.90931047811415, -9.908325602942114, -9.906588852775144, -9.905545727901028, -9.904907853186387, -9.904386103047386, -9.903921227947535, -9.902068602847748, -9.900852852993182, -9.899637477795693, -9.898423102789195, -9.897728853059562, -9.896629228138067, -9.895528851948256, -9.894138602935072, -9.89269122797208, -9.891591727969228, -9.890665852844052, -9.888815478168965, -9.886850353089244, -9.886040478220195, -9.884651602820554, -9.884556602824375, -9.883898978221737, -9.883723353149605, -9.883719477938712, -9.883774227970093, -9.883887228011758, -9.883883103193511, -9.884111977970292, -9.884571478038708, -9.884569476957552, -9.883582727785551, -9.883516852864489, -9.883101601838746, -9.882644478095187, -9.881873102089287, -9.881130977826047, -9.880789103109862, -9.879818352963468, -9.87847660290754, -9.877333978174818, -9.87676372781948, -9.876220727847738, -9.875964852856498, -9.875621102977334, -9.875136727972347, -9.874236228135771, -9.87366410303548, -9.872734352886823, -9.87176760313423, -9.87080072781697, -9.87019135289421, -9.86954685182559, -9.868794978117762, -9.868509726918717, -9.868257853132661, -9.867757852959471, -9.867113227952302, -9.866826228156413, -9.86571685284133, -9.864070353225998, -9.863568351985407, -9.863390603202106, -9.863158227960469, -9.863001977850729, -9.862845727929539, -9.862650351898651, -9.862144476795663, -9.861404352827492, -9.860779353024327, -9.860273476989448, -9.859882853001807, -9.859611353066953, -9.859220728107005, -9.858910102937386, -9.858402352890096, -9.857873103197562, -9.85644335283979, -9.855705102992772, -9.855158228004825, -9.854345728104477, -9.853787102812134, -9.852923852839126, -9.852271478040677, -9.851787228221212, -9.851470727800859, -9.85126947679015, -9.850912101981748, -9.850291103002121, -9.849406227136058, -9.84887885302669, -9.848183603202756, -9.847675726846035, -9.846833978205837, -9.845949227815481, -9.845160227944689, -9.844265603086058, -9.843642602927105, -9.842937478105114, -9.842515478150403, -9.8420624779327, -9.841451228099118, -9.840818353207283, -9.839849603150128, -9.839249977092152, -9.838005852985646, -9.837036978119158, -9.835857477968545, -9.834855477835731, -9.83399222796885, -9.833675726958916, -9.83331835312913, -9.832980477819092, -9.832517602878568, -9.831105477804442, -9.830484353053635, -9.829968726804111, -9.829177727809054, -9.828535102919886, -9.827996103051817, -9.827007852974532, -9.82618547790372, -9.82485935286951, -9.824052728219385, -9.822876977157534, -9.821703102886943, -9.8207069781609, -9.819292977123553, -9.818898478150174, -9.818421852825168, -9.81788472814469, -9.817537103091581, -9.816982477809518, -9.816576228190513, -9.816113227876542, -9.815685602203416, -9.8155253531408, -9.815417977936931, -9.815337852919754, -9.815232478203086, -9.815050727829657, -9.814863228072397, -9.81388085295589, -9.813048851801796, -9.812869103074945, -9.812716728207818, -9.81259185189657, -9.812544977801565, -9.81255072815162, -9.812558602869387, -9.812585977986771, -9.812523478180822, -9.812406228124928, -9.812183603220092, -9.811933603006707, -9.811828102949107, -9.811546852913409, -9.811130852779968, -9.810580102033327, -9.809908227850542, -9.809523477780374, -9.808691353020606, -9.808265601994606, -9.807796852994898, -9.807603478156693, -9.80745510200802, -9.80741210293786, -9.8072422279904, -9.806773478065395, -9.806261726913874, -9.805706977998625, -9.805300726833934, -9.804728477825392, -9.804144478095509, -9.803730477787212, -9.80336135301468, -9.803175727826215, -9.802804727190846, -9.80240622795867, -9.802091853136346, -9.801923852880918, -9.801908227167758, -9.802343728214169, -9.803435601959052, -9.804417977917637, -9.805474728185061, -9.806529352826146, -9.807328103078873, -9.80742772807912, -9.807402351880626, -9.807249977993706, -9.806896477829639, -9.806031226884272, -9.805718728111628, -9.805374977857468, -9.804853478008852, -9.804347602790926, -9.804123102937751, -9.803974602809035, -9.803673851824442, -9.803289102884037, -9.802751978054346, -9.802304727949661, -9.80184185283008, -9.800783228025011, -9.800039102845517, -9.799337852910128, -9.798800728064577, -9.798205227849053, -9.7974746028965, -9.796937477773895, -9.796296852850674, -9.795435602820135, -9.794687477914863, -9.793941352917955, -9.793197228182976, -9.792585978115255, -9.79224222802327, -9.79191410180556, -9.791646478099665, -9.79128122800256, -9.790476602967203, -9.788070352920386, -9.786513728161083, -9.782208976894253, -9.778710977091805, -9.77699022819877, -9.77566797808663, -9.765673852851819, -9.762517602910862, -9.75849997696713, -9.753730478197042, -9.74878510190183, -9.746351603117034, -9.744412102052024, -9.741154353078969, -9.7404453529673, -9.739999977905768, -9.739763727105128, -9.73924810203414, -9.73875972814011, -9.738273478066048, -9.737601603224846, -9.735734353006762, -9.733427602160418, -9.731273477085836, -9.730124977073046, -9.728290977950508, -9.72076372820851, -9.719164102834952, -9.716290977084043, -9.71365235303631, -9.712738227138857, -9.711869102818014, -9.711009727917087, -9.70947660306598, -9.70805472795962, -9.707521477855721, -9.70604097803141, -9.704974602931543, -9.703306602989812, -9.702464852027447, -9.701839853205854, -9.697767603031878, -9.690771476934515, -9.688068352774621, -9.684621102042911, -9.66849022693981, -9.664121102793217, -9.660859352194564, -9.656437477920178, -9.655173851844722, -9.652531227888346, -9.650124978157805, -9.641499977903777, -9.6387481028205, -9.633349602021667, -9.629216852999377, -9.626234353120935, -9.624335977829674, -9.622566352036813, -9.62138085289115, -9.620611352816297, -9.619367353106554, -9.618714853076028, -9.616994102224965, -9.615447227023878, -9.613033226887296, -9.612572227070132, -9.61250010309152, -9.61246285189543, -9.610564478113872, -9.609824227909428, -9.607011728126338, -9.605628851797178, -9.603675728093322, -9.599546853180755, -9.597419977834079, -9.596626976929656, -9.593015602139417, -9.591011727990804, -9.589972477063043, -9.588253852981438, -9.584353476965589, -9.58256847784429, -9.581558603015992, -9.580408227112628, -9.579621102017143, -9.579136726797742, -9.578792977080354, -9.579056601934383, -9.579197226790598, -9.579076227012024, -9.578894476995913, -9.578550728072287, -9.578410103190436, -9.57824810313764, -9.577845727062709, -9.577380853011732, -9.575033102889847, -9.571080103168526, -9.569759728089139, -9.56815235312871, -9.567003853100914, -9.563849602095445, -9.560060602186525, -9.554951227067534, -9.547199228192085, -9.54421485286798, -9.541972601875273, -9.539451227009863, -9.530962853140977, -9.526316228207179, -9.522927727154524, -9.520748101921697, -9.517302727797414, -9.514374976876582, -9.511386727103513, -9.510037103150296, -9.509593726840933, -9.508826227926136, -9.507943353072108, -9.504915976877783, -9.502050603118164, -9.501527352895096, -9.501058602908074, -9.500628852074158, -9.500369102051934, -9.499738228181627, -9.499078103104807, -9.498130853180214, -9.497414103044946, -9.496695353132566, -9.496206978193698, -9.495173852841674, -9.494427727083405, -9.493539101807357, -9.493165978160391, -9.492906227944388, -9.492390601878355, -9.492005851840304, -9.490281227806747, -9.487408228177287, -9.48274410213304, -9.48056447713077, -9.47815235201, -9.474013728086504, -9.466597601887486, -9.461601601786299, -9.455107476900196, -9.450165978154644, -9.449106324857723, -9.44763472681268, -9.443665976853708, -9.437111352143745, -9.434697228121365, -9.433259727786776, -9.430781227775697, -9.42617960202682, -9.421234352995498, -9.41928122690058, -9.418357476916583, -9.416574228086063, -9.410939476844192, -9.410856810534028, -9.410856823911331, -9.41085826493088, -9.411150980376135, -9.410958958050799, -9.410960860958824, -9.412319043262528, -9.412514521938533, -9.412322833317717, -9.412615698802028, -9.41319953450386, -9.413686999150741, -9.414075874347759, -9.413593532175867, -9.412918109691077, -9.41185516956449, -9.410401668297936, -9.40768960535155, -9.406141086187802, -9.406241336821665, -9.407116430402425, -9.408571105901444, -9.40915454962169, -9.409640442778596, -9.41099823380597, -9.412451900314124, -9.413034333677786, -9.413812849287638, -9.413330452507864, -9.412267115048621, -9.410428914660542, -9.409267205447463, -9.407913877107546, -9.407624392916205, -9.406949523919877, -9.406372010744974, -9.406084629770476, -9.406280494037333, -9.405508382193716, -9.404153863988597, -9.402799663616975, -9.402222567368085, -9.40232200434076, -9.40271222828477, -9.402715407725736, -9.402331537416444, -9.401850143927447, -9.401466404770986, -9.401008199026478, -9.401184700238503, -9.400509807209744, -9.39925532522966, -9.398000508153018, -9.397035235042779, -9.396262640673683, -9.395974736047492, -9.395783852535033, -9.39549487552506, -9.39472255272051, -9.394048595365803, -9.393760346130819, -9.393375211580064, -9.391730643006667, -9.390667340166033, -9.38853880288525, -9.387670560784613, -9.387189816779369, -9.386515298567247, -9.38496812765925, -9.383324640881085, -9.382167534569874, -9.38246187641198, -9.38275520903926, -9.383048673179076, -9.383148367390277, -9.382182237799213, -9.381991133981955, -9.379960975302595, -9.37860547655157, -9.377812478057592, -9.377355351830658, -9.377011727339948, -9.376380852964871, -9.37402535199061, -9.373679727383376, -9.37265035242666, -9.371331977322711, -9.368683603402985, -9.367021477724734, -9.363062478415088, -9.361732477294652, -9.361505852660684, -9.359671853055602, -9.352894476754614, -9.348937477363904, -9.348359226622904, -9.345259603234013, -9.344056726904228, -9.343253852037947, -9.341990228180066, -9.34101372699871, -9.338546853445393, -9.336593727404477, -9.335445352056524, -9.331886728219558, -9.328775352237358, -9.327630853404344, -9.32624260262412, -9.324999976663946, -9.323584727358025, -9.32218560337526, -9.319421851741936, -9.318037102992719, -9.316833976996236, -9.313734352098493, -9.310685602020783, -9.308615227298162, -9.307414102003122, -9.303505851821399, -9.302292977138052, -9.301550728197697, -9.300863227008108, -9.299537103138903, -9.298849601601773, -9.298044976561243, -9.297581978073538, -9.297222299267844, -9.296343673717729, -9.296042642567613, -9.296091051176177, -9.296092078242282, -9.296425974962972, -9.296570406631076, -9.296571307988984, -9.297048307767454, -9.297239634523578, -9.297335656295331, -9.297241129332804, -9.297147018708301, -9.296815152401336, -9.29681598373287, -9.297197967608213, -9.297293981069856, -9.29719968253687, -9.296867213265045, -9.296534683626248, -9.295963748608074, -9.295488702688658, -9.295251588698363, -9.29539667501217, -9.295588735124227, -9.295638214086523, -9.295639602432573, -9.295783161478994, -9.296069816314798, -9.296356584526734, -9.295881282348205, -9.295739218618792, -9.295645004426774, -9.295122303138328, -9.294551977002243, -9.294029327032149, -9.293554126311506, -9.293031414276072, -9.292604451000898, -9.292605800897945, -9.292845033837011, -9.293274585186168, -9.293941854683169, -9.29399014689011, -9.293943583693363, -9.294563506539191, -9.295231161184972, -9.295660758479698, -9.296090574721404, -9.296424757789737, -9.296568780725352, -9.297236261001387, -9.297903685276367, -9.298570944263247, -9.299238202661286, -9.299857619609156, -9.300476927057161, -9.300763315724623, -9.301002135778276, -9.301479392257193, -9.301746977659832, -9.30195843341653, -9.30176902400359, -9.30124609484119, -9.301008789842967, -9.301105053539914, -9.300534175364305, -9.29996367018299, -9.299631806532204, -9.299871776194664, -9.300158938099798, -9.30039794641192, -9.3013046633086, -9.30230625092537, -9.30426100873433, -9.305262531785559, -9.306073250558029, -9.307265460498854, -9.307838522464806, -9.307982721614621, -9.307460509268992, -9.307652777783062, -9.308320149722306, -9.308892124204533, -9.309512578295426, -9.30994273922164, -9.310229776792994, -9.309754801916824, -9.309184279660712, -9.308376039712698, -9.307662990228948, -9.306616825241349, -9.305856339287743, -9.306000527297215, -9.306620691792943, -9.307145219779613, -9.30705070317049, -9.30690899803949, -9.307671971403977, -9.307815705688256, -9.30738816010961, -9.30677007355581, -9.306675879059355, -9.305629469089297, -9.305154192732914, -9.304821733978429, -9.304830602195409, -9.304544470841961, -9.303970692091752, -9.30291819876976, -9.301194790469594, -9.300237926182604, -9.299760526466741, -9.298900132705569, -9.2985181693669, -9.298136017522665, -9.296795322783566, -9.295742636828095, -9.29574412132763, -9.295553965721695, -9.294980541890084, -9.293927668202969, -9.293353874467869, -9.292971802593286, -9.291920115077119, -9.289815455799953, -9.28972045630286, -9.288955295916537, -9.288764749691438, -9.289244449452667, -9.289916309868147, -9.290780848613736, -9.291740732298706, -9.292509056729614, -9.292797443783513, -9.29366043007235, -9.295288689326071]))

type(maps.geometry)

geopandas.geoseries.GeoSeries

#Check unique values

maps['IDDIST'].is_unique

True

maps['IDDIST'].unique().size

1873

# Select only relevant columns
maps = maps[['IDDIST', 'geometry']]
maps = maps.rename({'IDDIST':'UBIGEO'}, axis =1 )
maps

	UBIGEO	geometry
0	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...
1	100904	POLYGON ((-74.64136 -8.82302, -74.64036 -8.828...
2	250305	POLYGON ((-75.02253 -8.74193, -75.02267 -8.742...
3	250302	POLYGON ((-75.13864 -8.56712, -75.13956 -8.569...
4	250304	POLYGON ((-75.01589 -8.44637, -75.01585 -8.446...
...	...	...
1868	100608	POLYGON ((-76.08083 -9.13017, -76.08026 -9.130...
1869	100609	POLYGON ((-75.88828 -9.00906, -75.88756 -9.010...
1870	100610	POLYGON ((-75.91141 -8.88593, -75.91182 -8.886...
1871	211105	POLYGON ((-70.13203 -15.33382, -70.12355 -15.3...
1872	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...

1873 rows × 2 columns

maps.dtypes

UBIGEO        object
geometry    geometry
dtype: object

# Object or srting to int

maps['UBIGEO'] = maps['UBIGEO'].astype(str).astype(int)
maps

	UBIGEO	geometry
0	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...
1	100904	POLYGON ((-74.64136 -8.82302, -74.64036 -8.828...
2	250305	POLYGON ((-75.02253 -8.74193, -75.02267 -8.742...
3	250302	POLYGON ((-75.13864 -8.56712, -75.13956 -8.569...
4	250304	POLYGON ((-75.01589 -8.44637, -75.01585 -8.446...
...	...	...
1868	100608	POLYGON ((-76.08083 -9.13017, -76.08026 -9.130...
1869	100609	POLYGON ((-75.88828 -9.00906, -75.88756 -9.010...
1870	100610	POLYGON ((-75.91141 -8.88593, -75.91182 -8.886...
1871	211105	POLYGON ((-70.13203 -15.33382, -70.12355 -15.3...
1872	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...

1873 rows × 2 columns

#  WGS-84 (longitud-latitud projection)
maps.crs

#system of coordenates: CRS (due to where we are)

<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

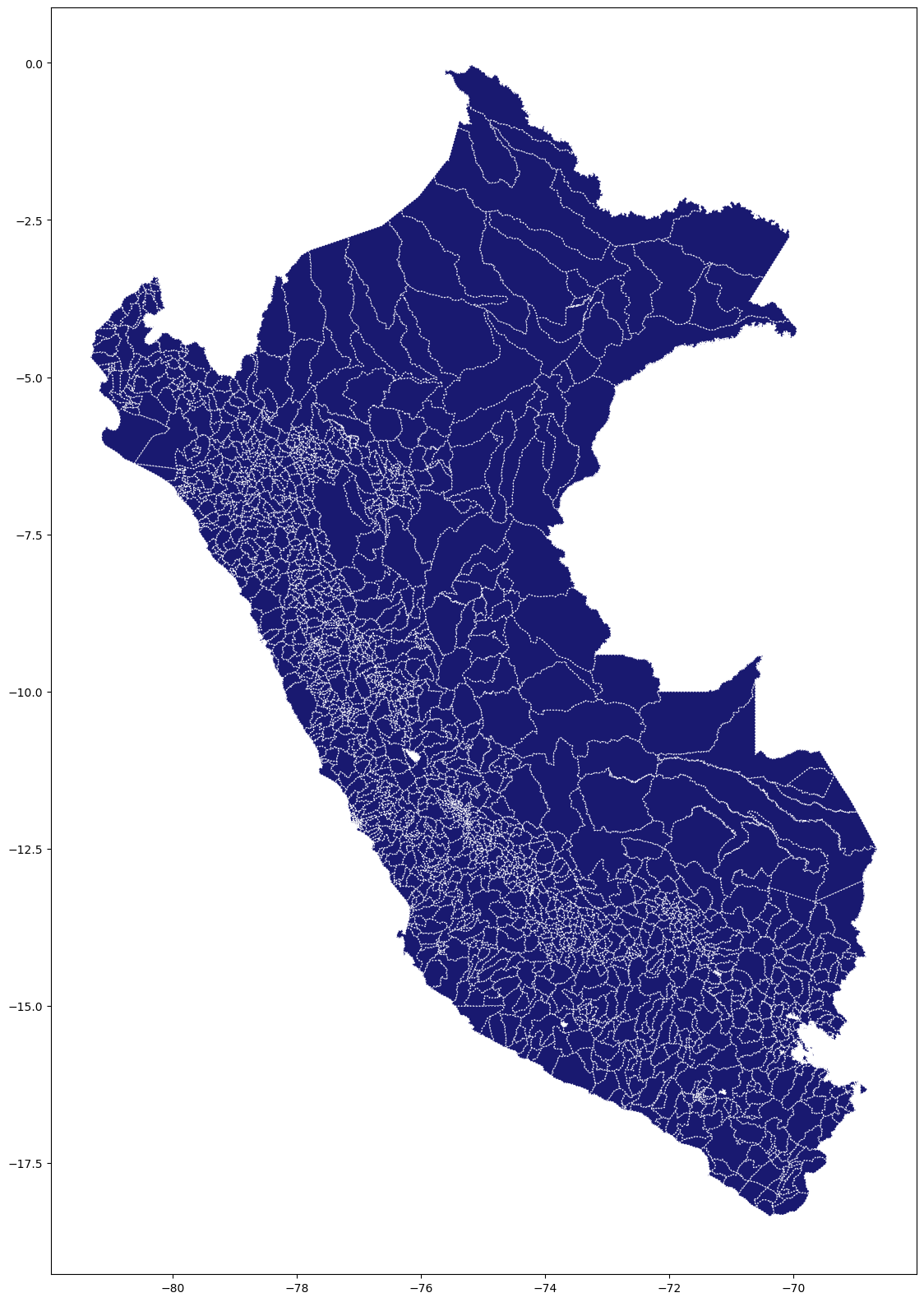

# Plot using geopandas

#figure and axis
fig, ax = plt.subplots(figsize=(20, 20))

maps.plot(  ax=ax, color='midnightblue', linestyle='dotted',
            edgecolor='white' )
plt.show()

Merge: Covid Data & Shapefile

# Merge using inner way to drop missing values

dataset_cv = pd.merge(maps, cv_data, how="inner", on="UBIGEO")
dataset_cv

	UBIGEO	geometry	Departamento	Provincia	Distrito	Mes	Año	Casos	Muertes Covid	Muertes totales
0	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...	HUANUCO	PUERTO INCA	CODO DEL POZUZO	3	2020	0	0	3
1	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...	HUANUCO	PUERTO INCA	CODO DEL POZUZO	4	2020	0	1	2
2	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...	HUANUCO	PUERTO INCA	CODO DEL POZUZO	5	2020	1	0	2
3	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...	HUANUCO	PUERTO INCA	CODO DEL POZUZO	6	2020	7	0	1
4	100902	POLYGON ((-75.31797 -9.29529, -75.31710 -9.297...	HUANUCO	PUERTO INCA	CODO DEL POZUZO	7	2020	11	1	4
...	...	...	...	...	...	...	...	...	...	...
40360	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...	LIMA	HUAURA	HUAURA	9	2021	9	0	20
40361	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...	LIMA	HUAURA	HUAURA	10	2021	11	2	16
40362	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...	LIMA	HUAURA	HUAURA	11	2021	28	1	10
40363	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...	LIMA	HUAURA	HUAURA	12	2021	75	1	16
40364	150806	POLYGON ((-77.37630 -10.89734, -77.37604 -10.8...	LIMA	HUAURA	HUAURA	1	2022	39	0	7

40365 rows × 10 columns

# Function to filter dataset_covid by year, month and administrative space(province)

def subdata( a , b, c ):

    if c == "All-Peru":

        resultado = dataset_cv.loc[(dataset_cv['Año']== a) & (dataset_cv['Mes']== b)]
    else:
        resultado = dataset_cv.loc[(dataset_cv['Año']== a) & (dataset_cv['Mes']== b) & (dataset_cv['Provincia']== c)]
    return resultado

base.Provincia.unique()

array(['PUERTO INCA', 'PADRE ABAD', 'CORONEL PORTILLO', 'UCAYALI',
       'TRUJILLO', 'ASCOPE', 'OTUZCO', 'GRAN CHIMU', 'CONTUMAZA',
       'PACASMAYO', 'TACNA', 'JORGE BASADRE', 'ILO', 'TARATA',
       'CANDARAVE', 'MARISCAL NIETO', 'ISLAY', 'CHUCUITO',
       'GENERAL SANCHEZ CERRO', 'CAMANA', 'AREQUIPA', 'EL COLLAO',
       'YUNGUYO', 'CASTILLA', 'CAYLLOMA', 'PUNO', 'CONDESUYOS',
       'CARAVELI', 'SAN ROMAN', 'LAMPA', 'MOHO', 'HUANCANE', 'CHINCHEROS',
       'HUAMALIES', 'SANTA', 'ANTONIO RAYMONDI', 'YUNGAY', 'HUAYLAS',
       'CARLOS FERMIN FITZCARRALD', 'CORONGO', 'POMABAMBA', 'MELGAR',
       'ESPINAR', 'AZANGARO', 'NASCA', 'SAN ANTONIO DE PUTINA',
       'LA UNI<d2>N', 'YAROWILCA', 'HUARAZ', 'RECUAY', 'DOS DE MAYO',
       'LAURICOCHA', 'BOLOGNESI', 'AMBO', 'CAJAMARCA', 'BOLIVAR',
       'CHEPEN', 'MARISCAL CACERES', 'SAN MARCOS', 'HUALLAGA', 'CHICLAYO',
       'CELENDIN', 'OCROS', 'HUARI', 'MARA<d1>ON', 'HUAYTARA', 'CARABAYA',
       'QUISPICANCHI', 'PISCO', 'ANDAHUAYLAS', 'ASUNCION', 'SIHUAS',
       'PALLASCA', 'HUARMEY', 'AIJA', 'HUANUCO', 'PACHITEA', 'OXAPAMPA',
       'PICOTA', 'CHACHAPOYAS', 'CHOTA', 'CUTERVO', 'EL DORADO', 'LUYA',
       'RODRIGUEZ DE MENDOZA', 'PASCO', 'DANIEL ALCIDES CARRION',
       'CAJATAMBO', 'JAEN', 'LAMAS', 'LAMBAYEQUE', 'FERRE<d1>AFE',
       'SAN MARTIN', 'CHURCAMPA', 'TAYACAJA', 'CASMA', 'CAJABAMBA',
       'YAUYOS', 'HUANCAVELICA', 'CALCA', 'CASTROVIRREYNA', 'HUAROCHIRI',
       'CHUMBIVILCAS', 'CANAS', 'AYMARAES', 'GRAU', 'CANCHIS',
       'COTABAMBAS', 'ACOBAMBA', 'CA<d1>ETE', 'LIMA', 'CHINCHA',
       'URUBAMBA', 'CARHUAZ', 'HUANCAYO', 'LA CONVENCION', 'JAUJA',
       'PARURO', 'CONCEPCION', 'SANDIA', 'ICA', 'ANTABAMBA', 'TARMA',
       'HUARAL', 'TAHUAMANU', 'CHANCHAMAYO', 'HUAURA', 'YAULI',
       'TAMBOPATA', 'HUANTA', 'LA MAR', 'SANTA CRUZ', 'HUALGAYOC',
       'SANCHEZ CARRION', 'UTCUBAMBA', 'SAN IGNACIO', 'CUSCO', 'CHUPACA',
       'PROV. CONST. DEL CALLAO', 'MOYOBAMBA', 'MAYNAS', 'TUMBES',
       'CONTRALMIRANTE VILLAR', 'BAGUA', 'ZARUMILLA', 'BONGARA', 'RIOJA',
       'REQUENA', 'CONDORCANQUI', 'DATEM DEL MARA<d1>ON',
       'MARISCAL RAMON CASTILLA', 'LORETO', 'SECHURA', 'HUANCABAMBA',
       'PIURA', 'MORROPON', 'BELLAVISTA', 'HUACAYBAMBA',
       'MARISCAL LUZURIAGA', 'PUTUMAYO', 'SATIPO', 'CANTA', 'OYON',
       'ATALAYA', 'JUNIN', 'PATAZ', 'BARRANCA', 'ALTO AMAZONAS', 'JULCAN',
       'SANTIAGO DE CHUCO', 'VIRU', 'TOCACHE', 'SAN MIGUEL', 'PALPA',
       'ACOMAYO', 'ABANCAY', 'ANGARAES', 'MANU', 'PAUCARTAMBO', 'ANTA',
       'LUCANAS', 'SUCRE', 'HUANCA SANCOS', 'VILCAS HUAMAN',
       'VICTOR FAJARDO', 'SAN PABLO', 'PURUS', 'SULLANA', 'PAITA',
       'AYABACA', 'TALARA', 'PARINACOCHAS', 'P<c0>UCAR DEL SARA SARA',
       'CANGALLO', 'HUAMANGA', 'LEONCIO PRADO'], dtype=object)

#Second wave
base = subdata( 2020 , 8, "All-Peru")  # all peru Aug-2020

#Second wave only Lima

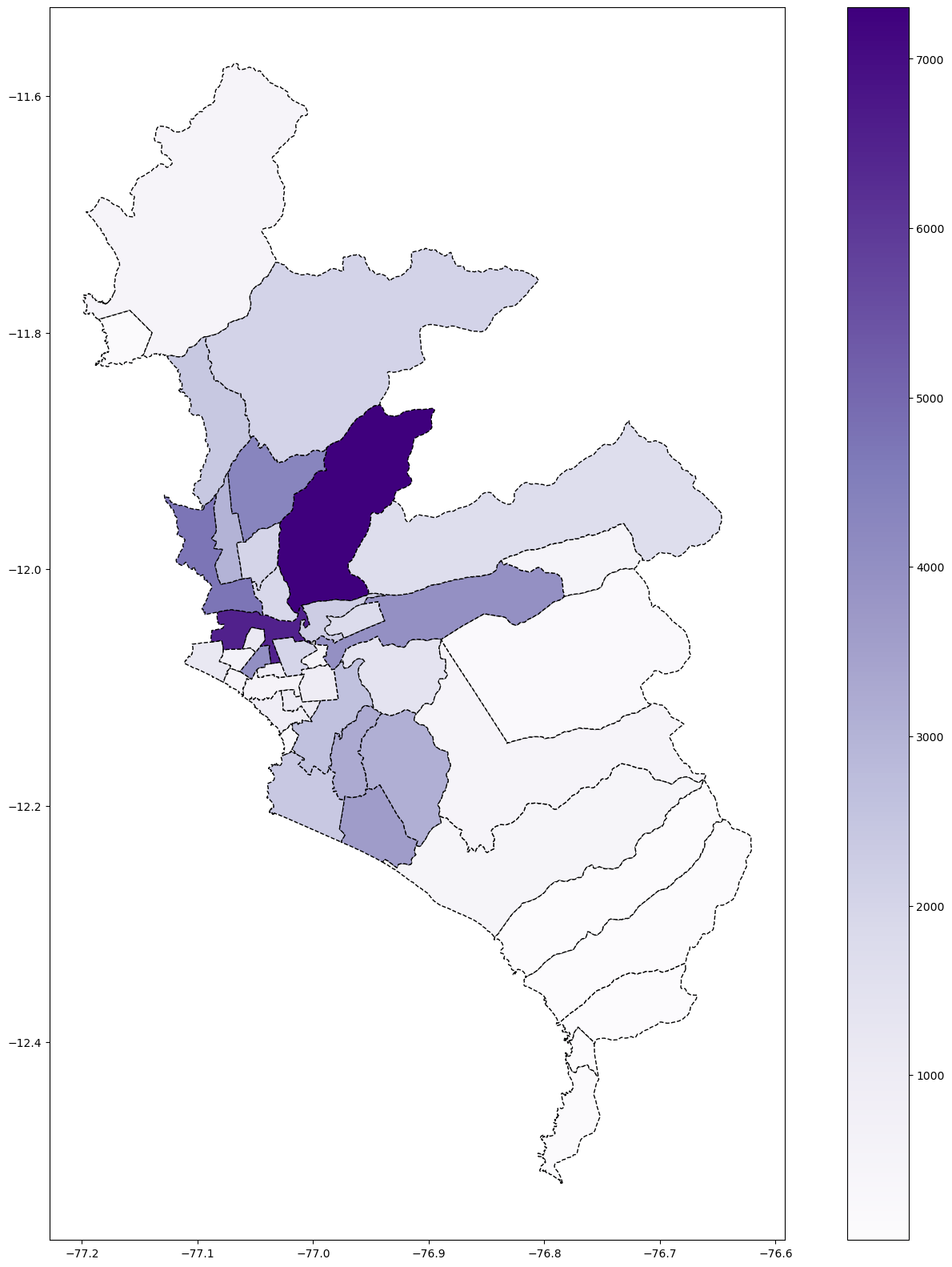

base_lima = subdata( 2020 , 8, "LIMA")  # Lima Aug-2020

#Second wave only Lima

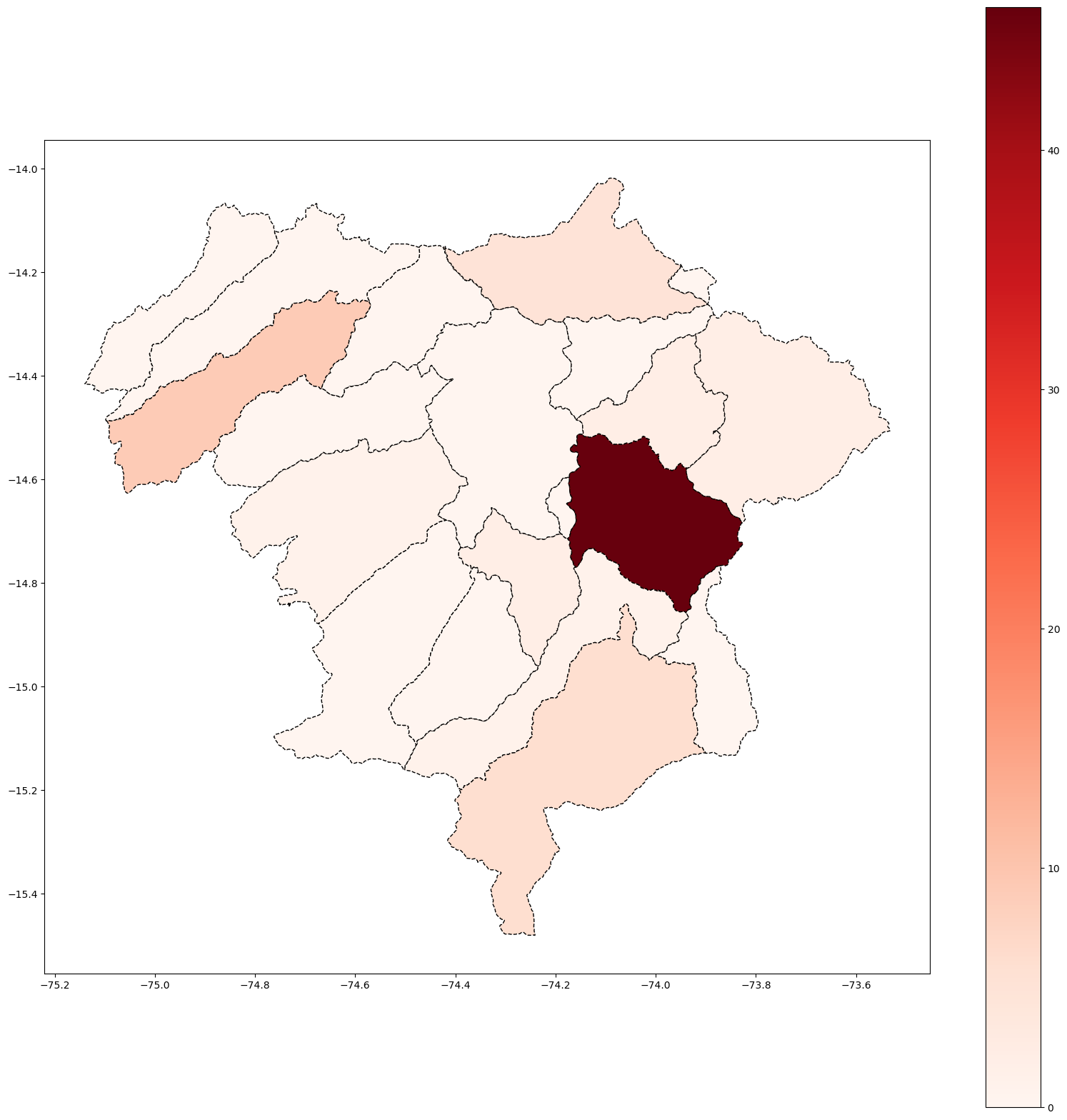

base_ayacucho = subdata( 2020 , 10, "LUCANAS")  # Lima Aug-2020

base_ayacucho

	UBIGEO	geometry	Departamento	Provincia	Distrito	Mes	Año	Casos	Muertes Covid	Muertes totales
24617	50618	POLYGON ((-74.45485 -14.15098, -74.45421 -14.1...	AYACUCHO	LUCANAS	SAN PEDRO DE PALCO	10	2020	0	0	0
37773	50617	POLYGON ((-74.12341 -14.73414, -74.12249 -14.7...	AYACUCHO	LUCANAS	SAN PEDRO	10	2020	1	0	0
37819	50621	POLYGON ((-74.39258 -14.72377, -74.39211 -14.7...	AYACUCHO	LUCANAS	SANTA LUCIA	10	2020	0	0	0
37842	50615	POLYGON ((-74.28449 -14.69725, -74.28211 -14.6...	AYACUCHO	LUCANAS	SAN CRISTOBAL	10	2020	2	0	0
37957	50619	POLYGON ((-74.04573 -14.91000, -74.04615 -14.9...	AYACUCHO	LUCANAS	SANCOS	10	2020	6	0	0
38003	50614	POLYGON ((-74.36156 -14.77078, -74.35963 -14.7...	AYACUCHO	LUCANAS	SAISA	10	2020	0	0	0
38026	50605	POLYGON ((-73.87660 -14.80292, -73.87742 -14.8...	AYACUCHO	LUCANAS	CHAVI<d1>A	10	2020	0	0	2
38049	50616	POLYGON ((-74.17274 -14.59704, -74.17246 -14.5...	AYACUCHO	LUCANAS	SAN JUAN	10	2020	0	0	0
38417	50609	POLYGON ((-74.43725 -14.52504, -74.43454 -14.5...	AYACUCHO	LUCANAS	LEONCIO PRADO	10	2020	1	0	0
38440	50606	POLYGON ((-73.85391 -14.27810, -73.85018 -14.2...	AYACUCHO	LUCANAS	CHIPAO	10	2020	2	0	1
38463	50611	POLYGON ((-74.27602 -14.27152, -74.27477 -14.2...	AYACUCHO	LUCANAS	LUCANAS	10	2020	0	0	2
38486	50603	POLYGON ((-73.89004 -14.26761, -73.88869 -14.2...	AYACUCHO	LUCANAS	CABANA	10	2020	0	0	0
38509	50612	POLYGON ((-74.64219 -14.23868, -74.64053 -14.2...	AYACUCHO	LUCANAS	OCA<d1>A	10	2020	9	1	2
38532	50613	POLYGON ((-74.49890 -14.38808, -74.49748 -14.3...	AYACUCHO	LUCANAS	OTOCA	10	2020	0	0	0
38555	50604	POLYGON ((-73.93008 -14.32350, -73.92803 -14.3...	AYACUCHO	LUCANAS	CARMEN SALCEDO	10	2020	2	0	2
38624	50608	POLYGON ((-74.67672 -14.07173, -74.67674 -14.0...	AYACUCHO	LUCANAS	LARAMATE	10	2020	0	0	0
38647	50610	POLYGON ((-74.85561 -14.07523, -74.85274 -14.0...	AYACUCHO	LUCANAS	LLAUTA	10	2020	0	0	0
38716	50602	POLYGON ((-74.06654 -14.02992, -74.06581 -14.0...	AYACUCHO	LUCANAS	AUCARA	10	2020	5	1	2
38785	50601	POLYGON ((-74.09914 -14.51889, -74.09729 -14.5...	AYACUCHO	LUCANAS	PUQUIO	10	2020	46	1	1
38808	50620	POLYGON ((-73.94270 -14.19863, -73.94250 -14.1...	AYACUCHO	LUCANAS	SANTA ANA DE HUAYCAHUACHO	10	2020	0	0	0

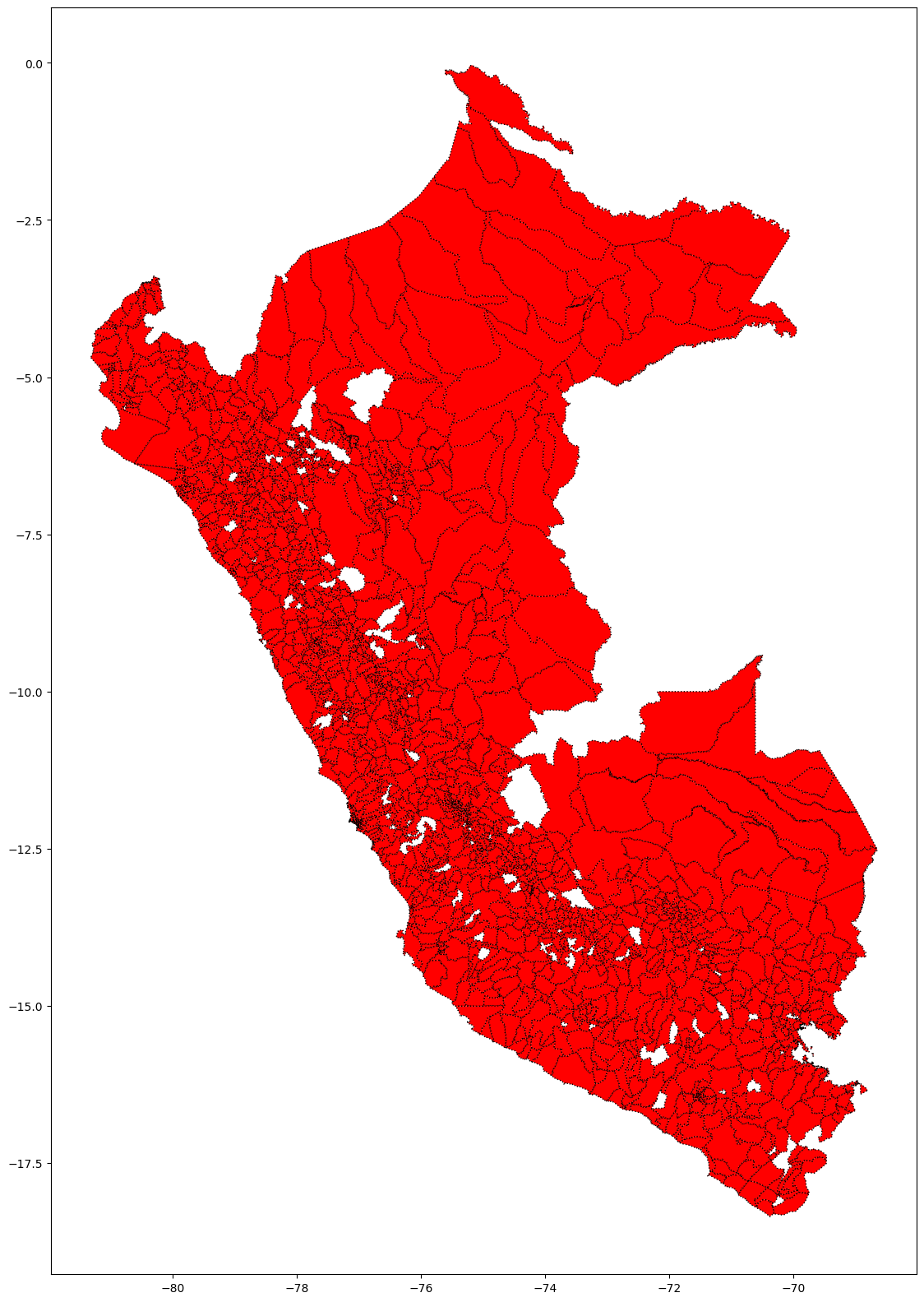

fig, ax = plt.subplots(figsize=(20, 20))

base.plot(  ax=ax, color='red', linestyle='dotted',
            edgecolor='black' )
plt.show()

#does not picture the provinces who dont have covid cases.

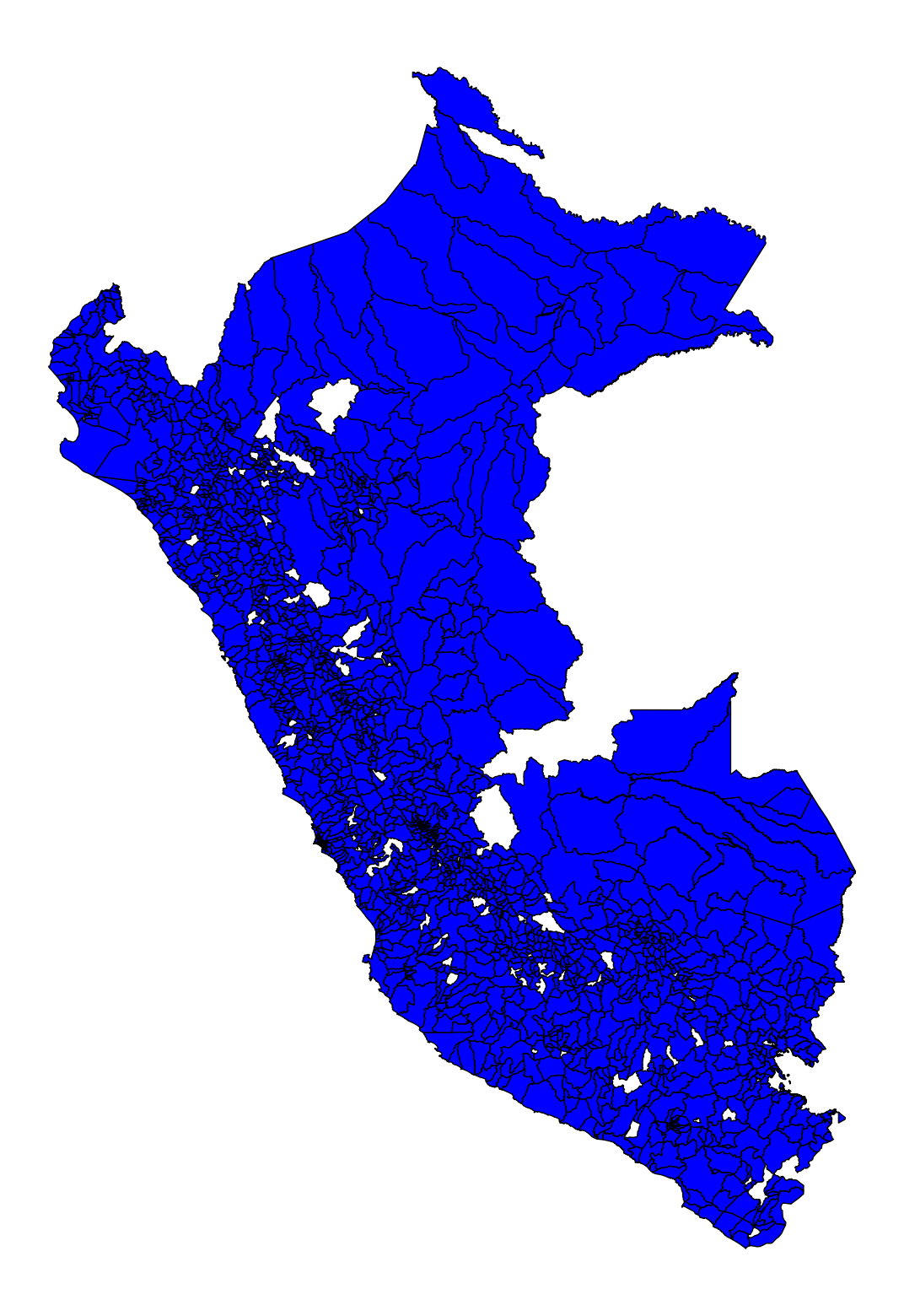

# Plot without axis

fig, ax = plt.subplots(figsize=(20, 20))
base.plot(ax=ax,color='blue', linestyle='-',
                      edgecolor='black')
ax.set_axis_off()

Plot covid infection at disctrict level

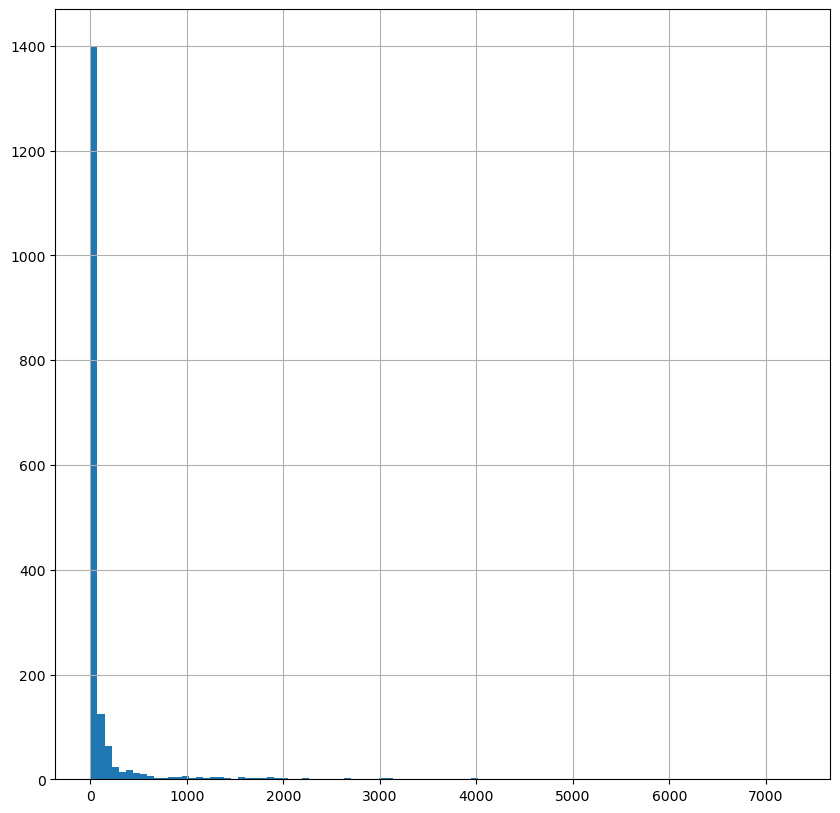

# First always check the distribution
fig, ax = plt.subplots(figsize=(10, 10))
base["Casos"].hist(bins = 100)

#check the distribution of the variables BEFORE PLOTTING

<AxesSubplot:>

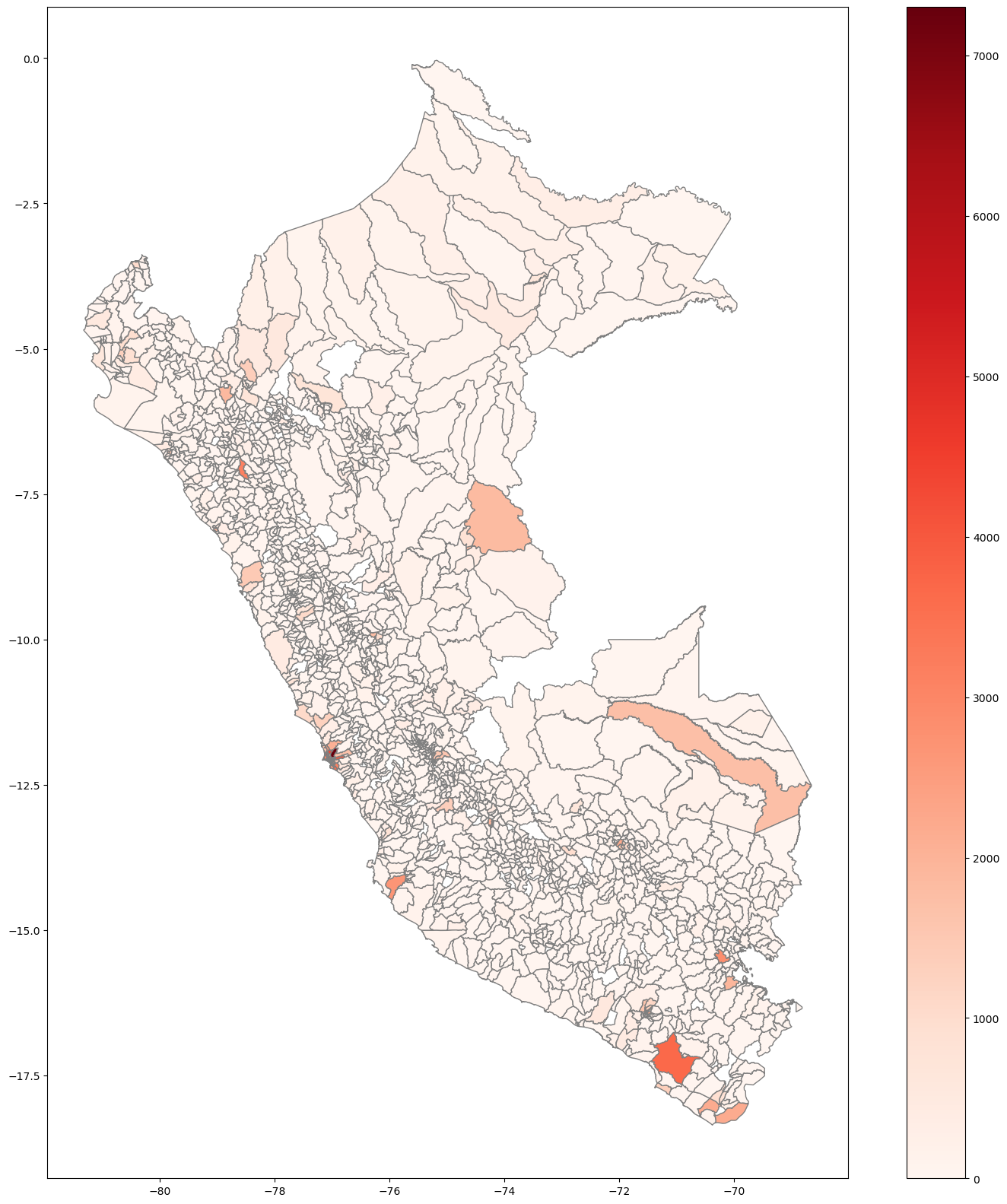

# Plot covid infection at disctrict level

base.plot( column='Casos', cmap='Reds',
          figsize=(20, 20),
          linestyle='-',
          edgecolor='gray',
          legend = True )

<AxesSubplot:>

# Covid & Lima Matropolitana

base_lima.plot(column='Casos', cmap='Purples', figsize=(20, 20), linestyle='--',
                      edgecolor='black',
                      legend = True)

# save map
plt.savefig(r'Lima_covid_Heatmap.png')

# Covid & Lima Matropolitana

base_ayacucho.plot(column='Casos', cmap='Reds', figsize=(20, 20), linestyle='--',
                      edgecolor='black',
                      legend = True)

# save map
plt.savefig(r'Ayacucho_covid_Heatmap.png')

base_lima.crs

<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Get Centroid

# Centroid (point in the center)

#base_lima = base_lima.to_crs("EPSG:32733")
#WGS84 (MAP IN CURVE) > PROJ IN METER "EPSG:24891" TO CALCULATE CENTROID > CONVERT TO CURVE AGAIN (THE CENTROID CAN BE OUT BECAUSE IF THE IMAGE IS CONCAVA)


base_lima['centroid'] = base_lima['geometry'].to_crs("EPSG:24891").centroid.to_crs("EPSG:4326")

C:\Users\DELL\anaconda3\lib\site-packages\geopandas\geodataframe.py:1443: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  super().__setitem__(key, value)

base_lima

	UBIGEO	geometry	Departamento	Provincia	Distrito	Mes	Año	Casos	Muertes Covid	Muertes totales	centroid
8147	150119	POLYGON ((-76.70549 -12.17672, -76.70429 -12.1...	LIMA	LIMA	LURIN	8	2020	452	29	68	POINT (-76.80109 -12.23426)
9090	150102	POLYGON ((-77.06517 -11.57512, -77.06505 -11.5...	LIMA	LIMA	ANCON	8	2020	460	30	51	POINT (-77.09580 -11.70252)
11689	150131	POLYGON ((-77.04859 -12.08504, -77.04762 -12.0...	LIMA	LIMA	SAN ISIDRO	8	2020	551	30	86	POINT (-77.03667 -12.09898)
11712	150120	POLYGON ((-77.07210 -12.08358, -77.06348 -12.0...	LIMA	LIMA	MAGDALENA DEL MAR	8	2020	478	49	94	POINT (-77.06669 -12.09384)
11735	150130	POLYGON ((-76.98732 -12.07994, -76.98425 -12.0...	LIMA	LIMA	SAN BORJA	8	2020	1012	54	123	POINT (-76.99521 -12.09755)
11758	150116	POLYGON ((-77.02807 -12.07871, -77.02435 -12.0...	LIMA	LIMA	LINCE	8	2020	855	76	129	POINT (-77.03567 -12.08579)
11781	150140	POLYGON ((-76.95923 -12.07576, -76.95831 -12.0...	LIMA	LIMA	SANTIAGO DE SURCO	8	2020	2628	171	394	POINT (-76.98431 -12.12699)
11850	150121	POLYGON ((-77.04966 -12.07025, -77.05097 -12.0...	LIMA	LIMA	PUEBLO LIBRE	8	2020	633	61	140	POINT (-77.06574 -12.07508)
12379	150139	POLYGON ((-77.14355 -11.79587, -77.14061 -11.7...	LIMA	LIMA	SANTA ROSA	8	2020	114	9	15	POINT (-77.16325 -11.80501)
15047	150106	POLYGON ((-76.89995 -11.72979, -76.89921 -11.7...	LIMA	LIMA	CARABAYLLO	8	2020	2054	183	281	POINT (-76.97291 -11.80738)
21579	150113	POLYGON ((-77.03811 -12.06768, -77.03629 -12.0...	LIMA	LIMA	JESUS MARIA	8	2020	4012	147	186	POINT (-77.04821 -12.07811)
22131	150124	POLYGON ((-76.77367 -12.42553, -76.77332 -12.4...	LIMA	LIMA	PUCUSANA	8	2020	90	8	13	POINT (-76.77562 -12.46584)
22154	150138	MULTIPOLYGON (((-76.78117 -12.40917, -76.78144...	LIMA	LIMA	SANTA MARIA DEL MAR	8	2020	26	0	0	POINT (-76.76740 -12.40858)
22315	150108	POLYGON ((-77.00745 -12.16033, -77.00781 -12.1...	LIMA	LIMA	CHORRILLOS	8	2020	2400	203	333	POINT (-77.00589 -12.19265)
22384	150104	POLYGON ((-77.01945 -12.13060, -77.01915 -12.1...	LIMA	LIMA	BARRANCO	8	2020	298	26	62	POINT (-77.02086 -12.14403)
22430	150143	POLYGON ((-76.91078 -12.12233, -76.91191 -12.1...	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	8	2020	3123	324	508	POINT (-76.91899 -12.17039)
22453	150133	POLYGON ((-76.95434 -12.11556, -76.95416 -12.1...	LIMA	LIMA	SAN JUAN DE MIRAFLORES	8	2020	3251	267	479	POINT (-76.96651 -12.15786)
22568	150122	POLYGON ((-77.02656 -12.10820, -77.02631 -12.1...	LIMA	LIMA	MIRAFLORES	8	2020	951	66	178	POINT (-77.02893 -12.12091)
22614	150141	POLYGON ((-77.01498 -12.10778, -77.01469 -12.1...	LIMA	LIMA	SURQUILLO	8	2020	1103	91	170	POINT (-77.01299 -12.11344)
23925	150127	POLYGON ((-76.64078 -12.21377, -76.64000 -12.2...	LIMA	LIMA	PUNTA NEGRA	8	2020	54	3	7	POINT (-76.70943 -12.30363)
24086	150134	POLYGON ((-76.99780 -12.06084, -76.99810 -12.0...	LIMA	LIMA	SAN LUIS	8	2020	567	39	72	POINT (-76.99724 -12.07409)
24109	150136	POLYGON ((-77.07857 -12.06228, -77.07815 -12.0...	LIMA	LIMA	SAN MIGUEL	8	2020	1205	89	190	POINT (-77.09007 -12.07644)
24546	150142	POLYGON ((-76.94232 -12.18247, -76.93731 -12.1...	LIMA	LIMA	VILLA EL SALVADOR	8	2020	3625	346	415	POINT (-76.94528 -12.21928)
24569	150126	POLYGON ((-76.65267 -12.19256, -76.65207 -12.1...	LIMA	LIMA	PUNTA HERMOSA	8	2020	35	1	7	POINT (-76.74377 -12.26927)
25857	150129	POLYGON ((-76.67773 -12.33800, -76.67787 -12.3...	LIMA	LIMA	SAN BARTOLO	8	2020	80	4	10	POINT (-76.72414 -12.36938)
26271	150123	POLYGON ((-76.88134 -12.07220, -76.86137 -12.1...	LIMA	LIMA	PACHACAMAC	8	2020	464	34	76	POINT (-76.80961 -12.15999)
26317	150115	POLYGON ((-77.01661 -12.05889, -77.01559 -12.0...	LIMA	LIMA	LA VICTORIA	8	2020	2003	211	351	POINT (-77.01739 -12.07233)
26340	150114	POLYGON ((-76.94006 -12.06405, -76.93942 -12.0...	LIMA	LIMA	LA MOLINA	8	2020	1406	81	154	POINT (-76.92573 -12.08809)
26386	150105	POLYGON ((-77.04206 -12.05348, -77.04198 -12.0...	LIMA	LIMA	BRE<d1>A	8	2020	1129	95	180	POINT (-77.05059 -12.05916)
26593	150137	POLYGON ((-76.93981 -12.03913, -76.93796 -12.0...	LIMA	LIMA	SANTA ANITA	8	2020	1762	169	261	POINT (-76.96314 -12.04321)
26662	150109	POLYGON ((-76.72948 -11.99943, -76.72596 -11.9...	LIMA	LIMA	CIENEGUILLA	8	2020	161	12	25	POINT (-76.77752 -12.07646)
27743	150101	POLYGON ((-77.00474 -12.04166, -77.00296 -12.0...	LIMA	LIMA	LIMA	8	2020	6510	658	666	POINT (-77.04887 -12.05103)
27766	150111	POLYGON ((-76.94408 -12.02075, -76.94348 -12.0...	LIMA	LIMA	EL AGUSTINO	8	2020	2248	153	209	POINT (-76.98740 -12.04010)
27789	150128	POLYGON ((-77.02034 -12.01783, -77.02032 -12.0...	LIMA	LIMA	RIMAC	8	2020	1911	163	277	POINT (-77.03268 -12.02358)
27812	150103	POLYGON ((-76.83508 -11.99627, -76.83467 -11.9...	LIMA	LIMA	ATE	8	2020	3969	382	545	POINT (-76.87747 -12.03257)
27835	150107	POLYGON ((-76.72918 -11.96426, -76.72809 -11.9...	LIMA	LIMA	CHACLACAYO	8	2020	512	31	62	POINT (-76.76695 -11.99164)
27858	150112	POLYGON ((-77.02858 -11.96462, -77.02794 -11.9...	LIMA	LIMA	INDEPENDENCIA	8	2020	2044	181	277	POINT (-77.04604 -11.98747)
27904	150135	POLYGON ((-77.08576 -11.94869, -77.08557 -11.9...	LIMA	LIMA	SAN MARTIN DE PORRES	8	2020	4730	498	768	POINT (-77.08841 -11.99283)
27927	150117	POLYGON ((-77.07044 -11.95013, -77.07008 -11.9...	LIMA	LIMA	LOS OLIVOS	8	2020	3023	279	395	POINT (-77.07437 -11.97242)
27950	150110	POLYGON ((-77.04639 -11.89743, -77.04551 -11.8...	LIMA	LIMA	COMAS	8	2020	4323	533	753	POINT (-77.03890 -11.92906)
27973	150118	POLYGON ((-76.71091 -11.89215, -76.70963 -11.8...	LIMA	LIMA	LURIGANCHO	8	2020	1669	103	172	POINT (-76.80130 -11.95849)
27996	150132	POLYGON ((-76.92923 -11.87063, -76.92891 -11.8...	LIMA	LIMA	SAN JUAN DE LURIGANCHO	8	2020	7303	729	1071	POINT (-76.97149 -11.94596)
28042	150125	POLYGON ((-77.09076 -11.81966, -77.09066 -11.8...	LIMA	LIMA	PUENTE PIEDRA	8	2020	2437	189	311	POINT (-77.08665 -11.87212)

# fig, ax = plt.subplots(figsize=(20, 20))

# # Heatmap Lima and Covid infection

# base_lima.plot(column='Casos', cmap='Reds', linestyle='--',
#                       edgecolor='black',
#                       legend = True, ax=ax)

props = dict(boxstyle='round', facecolor = 'linen', alpha =1)
props

{'boxstyle': 'round', 'facecolor': 'linen', 'alpha': 1}

# for point in base_lima.iterrows():
#     print(point[1]['Distrito'])

Add District Names in Centroid

fig, ax = plt.subplots(figsize=(20, 20))

# Heatmap Lima and Covid infection

base_lima.plot(column='Casos', cmap='Reds', linestyle='--',
                      edgecolor='black',
                      legend = True, ax=ax)

<AxesSubplot:>

#base_lima['centroid']

# for point in base_lima.iterrows():
#     print(point[1]['Distrito'])

props = dict(boxstyle='round', facecolor = 'linen', alpha =1)

props

{'boxstyle': 'round', 'facecolor': 'linen', 'alpha': 1}

fig, ax = plt.subplots(figsize=(20, 20))

# Heatmap Lima and Covid infection

base_lima.plot(column='Casos', cmap='Reds', linestyle='--',
                      edgecolor='black',
                      legend = True, ax=ax)

# add district name in litle box

props = dict(boxstyle='round', facecolor = 'linen', alpha =1)

for point in base_lima.iterrows():
        ax.text( point[1]['centroid'].x,
                 point[1]['centroid'].y,
                 point[1]['Distrito'],
                 horizontalalignment='center',
                 fontsize=10,
                 bbox=props )

plt.savefig(r'Lima_covid_Heatmap_2.png')
#plot.savefig(r'Lima_covid_Heatmap_2.png')

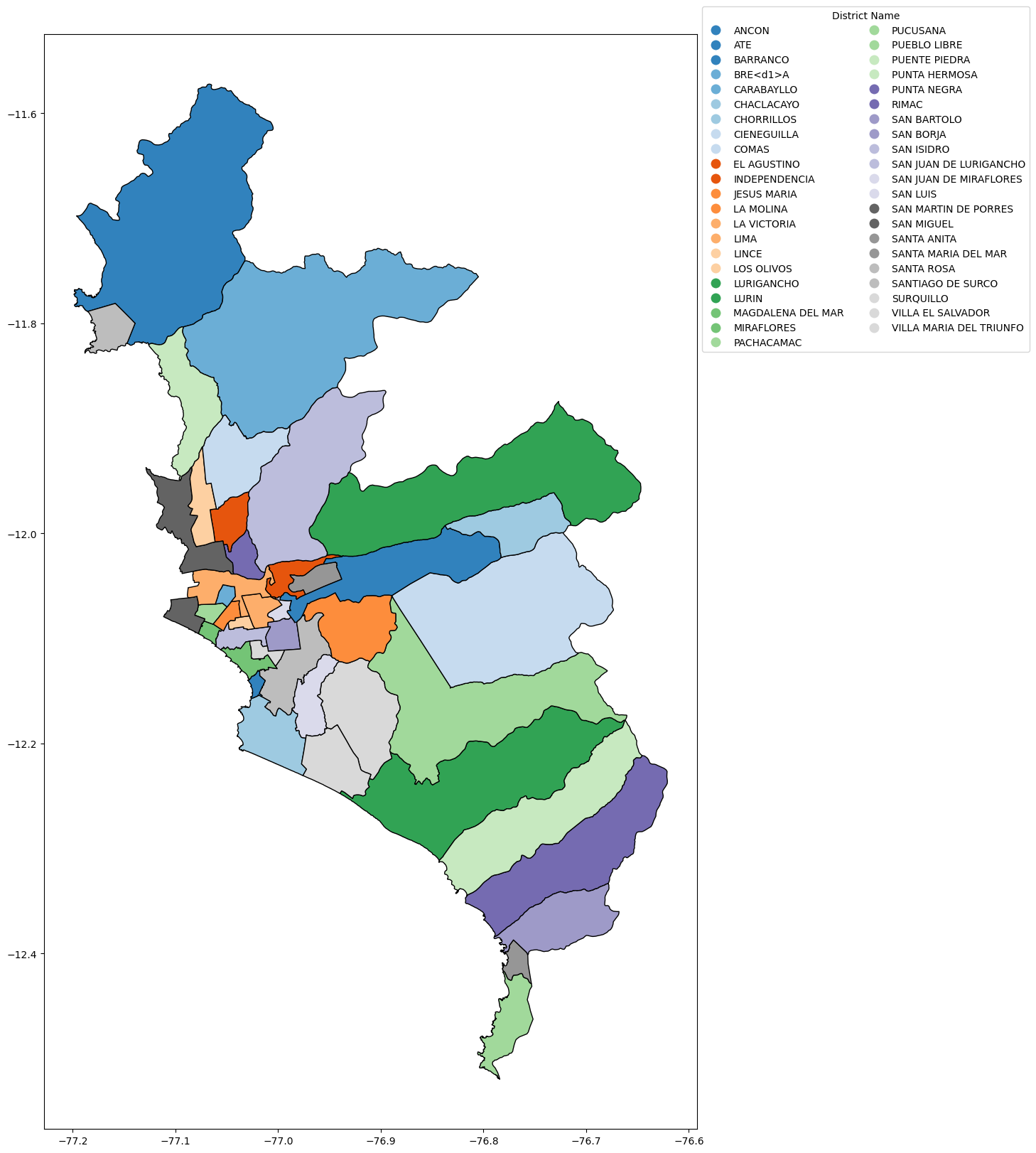

# Using legend by district

leg_kwds={'title':'District Name',
          'loc': 'upper left',
          'bbox_to_anchor':(1, 1.03),
          'ncol':2}


base_lima.plot(column='Distrito', cmap='tab20c', figsize=(20, 20), legend = True, linestyle='-',
               edgecolor='black',
               legend_kwds = leg_kwds)

<AxesSubplot:>

Public Health Centers Data

base_lima.geometry.iloc[1:2]

#NOTH (x), EAST(Y)

9090    POLYGON ((-77.06517 -11.57512, -77.06505 -11.5...
Name: geometry, dtype: geometry

# import csv file of public health centers: MINSA, ESSALUD and Regional Goverment
# coordinates information (NORTE: longitud) (ESTE: latitud)

health_centers = pd.read_csv(r'../_data/centros_hospitalarios.csv')
health_centers.head( 5 )

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Estado	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2
0	GOBIERNO REGIONAL	2076	SAN PABLO	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	LAMBAYEQUE S/N NEGRITOS	...	ACTIVADO		EN FUNCIONAMIENTO		-81.310632	-4.665043	15.3	NaN	19	1
1	ESSALUD	20628	POSTA MEDICA NEGRITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	AVENIDA SAN MARTIN Nº 100 NEGRITOS	...	ACTIVADO		EN FUNCIONAMIENTO		-81.306508	-4.654384	20.4	NaN	19	1
2	GOBIERNO REGIONAL	2075	NEGRITOS	CENTROS DE SALUD O CENTROS MEDICOS	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	URB. SUD AMERICA D-14 TALARA	...	ACTIVADO		EN FUNCIONAMIENTO		-81.303974	-4.658634	41.6	NaN	4	1
3	GOBIERNO REGIONAL	2077	LOBITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LOBITOS	200704	BARRIO PRIMAVERA A- 100 LOBITOS	...	ACTIVADO		EN FUNCIONAMIENTO		-81.275139	-4.456625	39.4	NaN	19	1
4	ESSALUD	12243	HOSPITAL II ESSALUD TALARA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AV. PANAMERICANA S/N CARRETERA A LOBITOS	...	ACTIVADO		EN FUNCIONAMIENTO		-81.273840	-4.568419	28.7	35.0	12	3

5 rows × 35 columns

health_centers.columns

Index(['Institución', 'Código Único', 'Nombre del establecimiento',
       'Clasificación', 'Tipo', 'Departamento', 'Provincia', 'Distrito',
       'UBIGEO', 'Dirección', 'Código DISA', 'Código Red', 'Código Microrred',
       'DISA', 'Red', 'Microrred', 'Código UE', 'Unidad Ejecutora',
       'Categoria', 'Teléfono', 'Tipo Doc.Categorización',
       'Nro.Doc.Categorización', 'Horario', 'Inicio de Actividad',
       'Director Médico y/o Responsable de la Atención de Salud', 'Estado',
       'Situación', 'Condición', 'Inspección', 'NORTE', 'ESTE', 'COTA',
       'CAMAS', 'code1', 'code2'],
      dtype='object')

health_centers.NORTE

0      -81.310632
1      -81.306508
2      -81.303974
3      -81.275139
4      -81.273840
          ...
8459          NaN
8460          NaN
8461          NaN
8462          NaN
8463          NaN
Name: NORTE, Length: 8464, dtype: float64

# DataFrame to GeoDataFrame

Public_health = gpd.GeoDataFrame( health_centers, geometry=gpd.points_from_xy( health_centers.NORTE, health_centers.ESTE ) )
Public_health.head( 5 )

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
0	GOBIERNO REGIONAL	2076	SAN PABLO	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	LAMBAYEQUE S/N NEGRITOS	...		EN FUNCIONAMIENTO		-81.310632	-4.665043	15.3	NaN	19	1	POINT (-81.31063 -4.66504)
1	ESSALUD	20628	POSTA MEDICA NEGRITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	AVENIDA SAN MARTIN Nº 100 NEGRITOS	...		EN FUNCIONAMIENTO		-81.306508	-4.654384	20.4	NaN	19	1	POINT (-81.30651 -4.65438)
2	GOBIERNO REGIONAL	2075	NEGRITOS	CENTROS DE SALUD O CENTROS MEDICOS	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	URB. SUD AMERICA D-14 TALARA	...		EN FUNCIONAMIENTO		-81.303974	-4.658634	41.6	NaN	4	1	POINT (-81.30397 -4.65863)
3	GOBIERNO REGIONAL	2077	LOBITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LOBITOS	200704	BARRIO PRIMAVERA A- 100 LOBITOS	...		EN FUNCIONAMIENTO		-81.275139	-4.456625	39.4	NaN	19	1	POINT (-81.27514 -4.45663)
4	ESSALUD	12243	HOSPITAL II ESSALUD TALARA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AV. PANAMERICANA S/N CARRETERA A LOBITOS	...		EN FUNCIONAMIENTO		-81.273840	-4.568419	28.7	35.0	12	3	POINT (-81.27384 -4.56842)

5 rows × 36 columns

# Setting UTM Zones (South): "EPSG:32733" #depending on the zone, it is PERU

# Public_health = Public_health.set_crs("EPSG:32733")
Public_health = Public_health.set_crs( "EPSG:32718", allow_override = True)
Public_health.crs

<Projected CRS: EPSG:32718>
Name: WGS 84 / UTM zone 18S
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- name: World - S hemisphere - 78°W to 72°W - by country
- bounds: (-78.0, -80.0, -72.0, 0.0)
Coordinate Operation:
- name: UTM zone 18S
- method: Transverse Mercator
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Public_health.head( 5 )

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
0	GOBIERNO REGIONAL	2076	SAN PABLO	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	LAMBAYEQUE S/N NEGRITOS	...		EN FUNCIONAMIENTO		-81.310632	-4.665043	15.3	NaN	19	1	POINT (-81.311 -4.665)
1	ESSALUD	20628	POSTA MEDICA NEGRITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	AVENIDA SAN MARTIN Nº 100 NEGRITOS	...		EN FUNCIONAMIENTO		-81.306508	-4.654384	20.4	NaN	19	1	POINT (-81.307 -4.654)
2	GOBIERNO REGIONAL	2075	NEGRITOS	CENTROS DE SALUD O CENTROS MEDICOS	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	URB. SUD AMERICA D-14 TALARA	...		EN FUNCIONAMIENTO		-81.303974	-4.658634	41.6	NaN	4	1	POINT (-81.304 -4.659)
3	GOBIERNO REGIONAL	2077	LOBITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LOBITOS	200704	BARRIO PRIMAVERA A- 100 LOBITOS	...		EN FUNCIONAMIENTO		-81.275139	-4.456625	39.4	NaN	19	1	POINT (-81.275 -4.457)
4	ESSALUD	12243	HOSPITAL II ESSALUD TALARA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AV. PANAMERICANA S/N CARRETERA A LOBITOS	...		EN FUNCIONAMIENTO		-81.273840	-4.568419	28.7	35.0	12	3	POINT (-81.274 -4.568)

5 rows × 36 columns

Types and classification public centers

We focus on Postas médicas and Hospitales

code2 (Type)

ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO: 1

SERVICIO MÉDICO DE APOYO: 2

ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO: 3

code1 (Clasification)

ATENCION PRE HOSPITALARIA: 1

CENTROS DE ATENCION PARA DEPENDIENTES A SUSTANCIAS PSICOACTIVAS Y OTRAS DEPENDENCIAS: 2

CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO,CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO: 3

CENTROS DE SALUD O CENTROS MEDICOS: 4

CENTROS DE SALUD O CENTROS MEDICOS,CENTROS DE SALUD O CENTROS MEDICOS: 5

CENTROS DE VACUNACION: 6

CENTROS MEDICOS ESPECIALIZADOS: 7

CONSULTORIOS MEDICOS Y DE OTROS PROFESIONALES DE LA SALUD: 8

ESTABLECIMIENTOS DE RECUPERACION O REPOSO: 9

HEMODIALISIS: 10

HOSPITALES O CLINICAS DE ATENCION ESPECIALIZADA: 11

HOSPITALES O CLINICAS DE ATENCION GENERAL: 12

INSTITUTOS DE SALUD ESPECIALIZADOS: 13

MEDICINA FISICA,REHABILITACION: 14

PATOLOGIA CLINICA: 15

PATOLOGIA CLINICA,ANATOMIA PATOLOGICA: 16

PATOLOGIA CLINICA,DIAGNOSTICO POR IMAGENES: 17

POLICLINICOS: 18

PUESTOS DE SALUD O POSTAS DE SALUD: 19

PUESTOS DE SALUD O POSTAS DE SALUD,PUESTOS DE SALUD O POSTAS DE SALUD: 19

SERVICIO DE TRASLADO DE PACIENTES: 20

SERVICIO DE TRASLADO DE PACIENTES,ATENCION DOMICILIARIA: 21

SERVICIO DE TRASLADO DE PACIENTES,ATENCION DOMICILIARIA,ATENCION PRE HOSPITALARIA: 22

SERVICIO DE TRASLADO DE PACIENTES,ATENCION PRE HOSPITALARIA: 23

CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO: 24

Public_health.head( 5 )

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
0	GOBIERNO REGIONAL	2076	SAN PABLO	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	LAMBAYEQUE S/N NEGRITOS	...		EN FUNCIONAMIENTO		-81.310632	-4.665043	15.3	NaN	19	1	POINT (-81.311 -4.665)
1	ESSALUD	20628	POSTA MEDICA NEGRITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	AVENIDA SAN MARTIN Nº 100 NEGRITOS	...		EN FUNCIONAMIENTO		-81.306508	-4.654384	20.4	NaN	19	1	POINT (-81.307 -4.654)
2	GOBIERNO REGIONAL	2075	NEGRITOS	CENTROS DE SALUD O CENTROS MEDICOS	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LA BREA	200703	URB. SUD AMERICA D-14 TALARA	...		EN FUNCIONAMIENTO		-81.303974	-4.658634	41.6	NaN	4	1	POINT (-81.304 -4.659)
3	GOBIERNO REGIONAL	2077	LOBITOS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	PIURA	TALARA	LOBITOS	200704	BARRIO PRIMAVERA A- 100 LOBITOS	...		EN FUNCIONAMIENTO		-81.275139	-4.456625	39.4	NaN	19	1	POINT (-81.275 -4.457)
4	ESSALUD	12243	HOSPITAL II ESSALUD TALARA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AV. PANAMERICANA S/N CARRETERA A LOBITOS	...		EN FUNCIONAMIENTO		-81.273840	-4.568419	28.7	35.0	12	3	POINT (-81.274 -4.568)

5 rows × 36 columns

# code1 = 19 to postas médicas
# code1 = 12 & 24 to Hospitals

Public_health1 = Public_health[Public_health.code1 == "19"]

Public_health2 = Public_health[(Public_health.code1 == "12") | (Public_health.code1 == "24")]
Public_health2.head( 5 )

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
4	ESSALUD	12243	HOSPITAL II ESSALUD TALARA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AV. PANAMERICANA S/N CARRETERA A LOBITOS	...		EN FUNCIONAMIENTO		-81.273840	-4.568419	28.7	35.0	12	3	POINT (-81.274 -4.568)
5	GOBIERNO REGIONAL	2074	TALARA II	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	TALARA	PARIÑAS	200701	AVENIDA GRAU S/N EXPOLICLINICO PETROPERU	...		EN FUNCIONAMIENTO		-81.272096	-4.578829	21.1	NaN	24	3	POINT (-81.272 -4.579)
19	ESSALUD	11763	HOSPITAL I MIGUEL CRUZADO VERA - PAITA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	PAITA	PAITA	200501	CARRETERA PAITA - PIURA KM 1.5	...		EN FUNCIONAMIENTO		-81.100243	-5.087583	75.9	12.0	24	3	POINT (-81.100 -5.088)
20	GOBIERNO REGIONAL	2021	HOSPITAL LAS MERCEDES-PAITA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	PAITA	PAITA	200501	LOS PESCADORES S/N LA PUNTA	...		EN FUNCIONAMIENTO		-81.091531	-5.090815	78.3	79.0	12	3	POINT (-81.092 -5.091)
23	GOBIERNO REGIONAL	2026	PUEBLO NUEVO DE COLAN	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	PIURA	PAITA	COLAN	200504	JR. ALFONSO UGARTE S/N	...		EN FUNCIONAMIENTO		-81.058005	-4.911551	16.6	NaN	24	3	POINT (-81.058 -4.912)

5 rows × 36 columns

# # Quantiles quantity of infection

# base_lima.plot(column='Casos', cmap='Set2', figsize=(20, 20), linestyle=':',
#                edgecolor='black',
#                legend = True)

# Postas Médicas and Hospitales públicos - LIMA

PH_lima_postas = Public_health1[Public_health1.Provincia == "LIMA"]

PH_lima_hospitales = Public_health2[Public_health2.Provincia == "LIMA"]
PH_lima_hospitales

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
2715	MINSA	5814	CENTRO DE SALUD MATERNO INFANTIL ANCON	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	ANCON	150102	JR. LOA 595 ANCON	...		EN FUNCIONAMIENTO		-77.172725	-11.774719	12.0	NaN	24	3	POINT (-77.173 -11.775)
2803	MINSA	5816	MATERNO INFANTIL DR. ENRIQUE MARTIN ALTUNA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	PUENTE PIEDRA	150125	ASOC VIV E INDUSTRIAS VIRGEN DE LAS NIEVES URB...	...		EN FUNCIONAMIENTO		-77.109100	-11.837611	200.0	NaN	24	3	POINT (-77.109 -11.838)
2832	ESSALUD	8564	HOSPITAL I OCTAVIO MONGRUT MUÑOZ	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SAN MIGUEL	150136	AV PARQUE DE LAS LEYENDAS 255	...		EN FUNCIONAMIENTO		-77.094583	-12.065961	NaN	49.0	12	3	POINT (-77.095 -12.066)
2852	MINSA	5817	SANTA ROSA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	PUENTE PIEDRA	150125	AA.HH. SANTA ROSA, MZ. 50, LOTE PM - AV. SANTA...	...		EN FUNCIONAMIENTO		-77.081693	-11.874827	200.0	NaN	24	3	POINT (-77.082 -11.875)
2859	MINSA	7632	HOSPITAL CARLOS LANFRANCO LA HOZ	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	PUENTE PIEDRA	150125	AV. SAENZ PEÑA - CUADRA 6 S/N	...		EN FUNCIONAMIENTO		-77.079335	-11.863181	NaN	102.0	12	3	POINT (-77.079 -11.863)
2862	MINSA	5799	CLAS JUAN PABLO II	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LOS OLIVOS	150117	CALLE 28 S/N AA.HH. JUAN PABLO II	...		EN FUNCIONAMIENTO		-77.078891	-11.953212	63.0	NaN	24	3	POINT (-77.079 -11.953)
2875	MINSA	5821	LOS SUREÑOS	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	PUENTE PIEDRA	150125	COOP. VIVIENDA LOS SUREÑOS MZ M LT. 35	...		EN FUNCIONAMIENTO		-77.069701	-11.887532	200.0	NaN	24	3	POINT (-77.070 -11.888)
2879	MINSA	6196	MAGDALENA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	MAGDALENA DEL MAR	150120	JR. JUNÍN 322	...		EN FUNCIONAMIENTO		-77.068627	-12.088694	27.0	NaN	24	3	POINT (-77.069 -12.089)
2887	MINSA	6214	HOSPITAL VICTOR LARCO HERRERA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	MAGDALENA DEL MAR	150120	AV.AUGUSTO PEREZ ARANIBAR N° 600	...		EN FUNCIONAMIENTO		-77.065756	-12.098705	NaN	590.0	12	3	POINT (-77.066 -12.099)
2904	MINSA	5772	CENTRO MATERNO INFANTIL SANTA LUZMILA II	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	COMAS	150110	AVENIDA AV. 22 DE AGOSTO N° 1001- URB SANTA LU...	...		EN FUNCIONAMIENTO		-77.058712	-11.947025	101.0	NaN	24	3	POINT (-77.059 -11.947)
2905	ESSALUD	8671	HOSPITAL I MARINO MOLINA SCIPPA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	COMAS	150110	AV. GUILLERMO DE LA FUENTE NO 515 URB. SANTA L...	...		EN FUNCIONAMIENTO		-77.058242	-11.943809	NaN	106.0	12	3	POINT (-77.058 -11.944)
2912	MINSA	5755	CENTRO MATERNO INFANTIL LAURA RODRIGUEZ	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	COMAS	150110	CALLE CALLE 30 N° 150 (ANTES MZ R1 LOTE 2- PAR...	...		EN FUNCIONAMIENTO		-77.055362	-11.916050	101.0	NaN	24	3	POINT (-77.055 -11.916)
2927	MINSA	5791	TAHUANTINSUYO BAJO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	INDEPENDENCIA	150112	AVENIDA AV. CHINCHAYSUYO CUADRA 4 - URB. TAHUA...	...		EN FUNCIONAMIENTO		-77.052983	-11.978466	85.0	NaN	24	3	POINT (-77.053 -11.978)
2943	ESSALUD	9188	HOSPITAL II RAMÓN CASTILLA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LIMA	150101	JIRÓN JIRÓN GUILLERMO DANSEY Nº 390 JIRÓN GUIL...	...		EN FUNCIONAMIENTO		-77.044033	-12.044341	NaN	49.0	12	3	POINT (-77.044 -12.044)
2955	MINSA	6207	NACIONAL ARZOBISPO LOAYZA	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LIMA	150101	AV. ALFONSO UGARTE 848	...		EN FUNCIONAMIENTO		-77.042560	-12.049845	NaN	662.0	12	3	POINT (-77.043 -12.050)
2984	MINSA	5644	RIMAC	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	RIMAC	150128	PASAJE SAN GERMAN Nº 270 URB. VILLACAMPA – RIMAC	...		EN FUNCIONAMIENTO		-77.033661	-12.034340	NaN	NaN	24	3	POINT (-77.034 -12.034)
2988	ESSALUD	8502	HOSPITAL III EMERGENCIAS GRAU	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LIMA	150101	AVENIDA GRAU N° 351	...		EN FUNCIONAMIENTO		-77.031278	-12.058957	NaN	231.0	12	3	POINT (-77.031 -12.059)
2997	ESSALUD	8489	ESSALUD - HOSPITAL II SUÁREZ ANGAMOS	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	MIRAFLORES	150122	AV. ANGAMOS ESTE Nº 261	...		EN FUNCIONAMIENTO		-77.027993	-12.113623	NaN	84.0	12	3	POINT (-77.028 -12.114)
3009	MINSA	6162	CENTRO DE EMERGENCIAS SAN PEDRO DE LOS CHORRILLOS	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CHORRILLOS	150108	CALLE FERROCARRIL S/N	...		EN FUNCIONAMIENTO		-77.023590	-12.166438	46.0	NaN	24	3	POINT (-77.024 -12.166)
3017	MINSA	6178	CENTRO DE SALUD SURQUILLO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SURQUILLO	150141	JR. NARCISO DE LA COLINA 840	...		EN FUNCIONAMIENTO		-77.022067	-12.118238	122.0	NaN	24	3	POINT (-77.022 -12.118)
3023	MINSA	6175	EL PORVENIR	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LA VICTORIA	150115	JR. SEBASTIÁN BARRANCA 977	...		EN FUNCIONAMIENTO		-77.020907	-12.067660	142.0	NaN	24	3	POINT (-77.021 -12.068)
3027	MINSA	5991	CENTRO MATERNO INFANTIL DE SALUD - "VIRGEN DEL...	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CHORRILLOS	150108	CALLE LEOPOLDO ARIAS NRO. 200	...		EN FUNCIONAMIENTO		-77.020298	-12.165916	46.0	NaN	24	3	POINT (-77.020 -12.166)
3036	MINSA	5735	EL PROGRESO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CARABAYLLO	150106	AVENIDA AV. TUPAC AMARU Nº 2950 (KM 22) DISTRI...	...		EN FUNCIONAMIENTO		-77.016728	-11.875540	221.0	NaN	24	3	POINT (-77.017 -11.876)
3040	MINSA	6206	NACIONAL DOS DE MAYO	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LIMA	150101	PARQUE HISTORIA DE LA MEDICINA PERUANA S/N ALT...	...		EN FUNCIONAMIENTO		-77.016269	-12.057170	NaN	594.0	12	3	POINT (-77.016 -12.057)
3048	MINSA	5842	PIEDRA LIZA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	RIMAC	150128	AV. SANTA ROSA S/N - BARRIO FISCAL PIEDRA LIZA	...		EN FUNCIONAMIENTO		-77.012911	-12.032531	205.0	NaN	24	3	POINT (-77.013 -12.033)
3071	MINSA	5998	BUENOS AIRES DE VILLA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CHORRILLOS	150108	AV. BUENOS AIRES DE VILLA S/N.	...		EN FUNCIONAMIENTO		-77.004874	-12.188766	46.0	NaN	24	3	POINT (-77.005 -12.189)
3077	MINSA	5617	HOSPITAL SAN JUAN DE LURIGANCHO	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SAN JUAN DE LURIGANCHO	150132	ENTRE PARADERO 10 Y 11 DE AV. CANTO GRANDE (HU...	...		EN FUNCIONAMIENTO		-77.003057	-11.966577	NaN	150.0	12	3	POINT (-77.003 -11.967)
3093	MINSA	5966	SAN FERNANDO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	ATE	150103	JIRÓNJOSE SANTOS CHOCANO CDRA.01 S/N - URB.VAL...	...		EN FUNCIONAMIENTO		-76.996408	-12.060061	349.0	6.0	24	3	POINT (-76.996 -12.060)
3096	ESSALUD	8317	HOSPITAL AURELIO DIAZ UFANO Y PERAL	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SAN JUAN DE LURIGANCHO	150132	CALLE MAJES S/N G-11 - URB. LOS PINOS	...		EN FUNCIONAMIENTO		-76.995567	-11.968478	NaN	54.0	12	3	POINT (-76.996 -11.968)
3161	MINSA	6750	SANTA ANITA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SANTA ANITA	150137	CALLE LOS MOCHICAS S/N PARQUE LAMPA DE ORO CO...	...		EN FUNCIONAMIENTO		-76.969171	-12.041362	NaN	6.0	24	3	POINT (-76.969 -12.041)
3164	MINSA	6104	MANUEL BARRETO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SAN JUAN DE MIRAFLORES	150133	JR. MANUEL BARRETO S/N ZONA K-CIUDAD DE DIOS	...		EN FUNCIONAMIENTO		-76.968442	-12.152256	108.0	NaN	24	3	POINT (-76.968 -12.152)
3175	MINSA	6107	OLLANTAY	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SAN JUAN DE MIRAFLORES	150133	AV. PROLONGACION GABRIEL TORRES S/N. PAMPLONA ...	...		EN FUNCIONAMIENTO		-76.963548	-12.135808	108.0	NaN	24	3	POINT (-76.964 -12.136)
3204	MINSA	6152	JOSE CARLOS MARIATEGUI	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	AV. PRIMAVERA CUADRA 23 S/N JOSE CARLOS MARIAT...	...		EN FUNCIONAMIENTO		-76.950802	-12.147521	163.0	NaN	24	3	POINT (-76.951 -12.148)
3213	MINSA	6132	CENTRO MATERNO INFANTIL SAN JOSE	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA EL SALVADOR	150142	AV. LOS ÁNGELES S/N, SECTOR 1, GRUPO 15	...		EN FUNCIONAMIENTO		-76.946310	-12.198297	143.0	NaN	24	3	POINT (-76.946 -12.198)
3214	ESSALUD	10135	HOSPITAL I CARLOS ALCANTARA BUTTERFIELD	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LA MOLINA	150114	AV. LOS CONSTRUCTORES 1201 - URB. COVIMA	...		EN FUNCIONAMIENTO		-76.945544	-12.062131	NaN	50.0	12	3	POINT (-76.946 -12.062)
3216	MINSA	6153	DANIEL ALCIDES CARRION	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	AV. PACHACUTEC Nº 3470	...		EN FUNCIONAMIENTO		-76.945390	-12.177699	163.0	NaN	24	3	POINT (-76.945 -12.178)
3217	MINSA	6133	CENTRO MATERNO INFANTIL JUAN PABLO II	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA EL SALVADOR	150142	AV. MARIANO PASTOR SEVILLA S/N ,SECTOR 6,GRUPO 6	...		EN FUNCIONAMIENTO		-76.945290	-12.219161	143.0	NaN	24	3	POINT (-76.945 -12.219)
3230	ESSALUD	18580	GUILLERMO KAELIN DE LA FUENTE	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	AVENIDA PP.JJ. NUEVA ESPERANZA MZ 1B SUBLOTE 1...	...		EN FUNCIONAMIENTO		-76.940599	-12.178289	NaN	199.0	12	3	POINT (-76.941 -12.178)
3238	MINSA	6151	VILLA MARIA DEL TRIUNFO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	AV. PEDRO VALLE S/N (ALTURA CUADRA 18 AV.EL TR...	...		EN FUNCIONAMIENTO		-76.936502	-12.156910	163.0	NaN	24	3	POINT (-76.937 -12.157)
3255	MINSA	6164	TABLADA DE LURIN	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	AV. REPUBLICA Y BILLINGURST S/N 2DO SECTOR	...		EN FUNCIONAMIENTO		-76.927452	-12.191033	163.0	NaN	24	3	POINT (-76.927 -12.191)
3262	MINSA	6124	CESAR LOPEZ SILVA	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA EL SALVADOR	150142	SECTOR IV MZ B1 LT S/N 1RA. ETAPA URB.PACHACAM...	...		EN FUNCIONAMIENTO		-76.923745	-12.230178	143.0	NaN	24	3	POINT (-76.924 -12.230)
3269	MINSA	5945	HOSPITAL VITARTE	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	ATE	150103	AVENIDA NICOLAS AYLLON 5880-CARRETERA CENTRAL ...	...		EN FUNCIONAMIENTO		-76.919904	-12.026042	NaN	111.0	12	3	POINT (-76.920 -12.026)
3284	MINSA	6141	JOSE GALVEZ	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	VILLA MARIA DEL TRIUNFO	150143	CRUCE CALLE ARICA CON AGRICULTURA S/N	...		EN FUNCIONAMIENTO		-76.907215	-12.210562	163.0	NaN	24	3	POINT (-76.907 -12.211)
3322	MINSA	6079	LURIN	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LURIN	150119	JIRÓN GRAU Nº 370 JR. GRAU Nº 370 VILLA EL SAL...	...		EN FUNCIONAMIENTO		-76.869575	-12.273670	10.0	NaN	24	3	POINT (-76.870 -12.274)
3363	MINSA	5883	HOSPITAL DE BAJA COMPLEJIDAD HUAYCAN	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	ATE	150103	AV JOSÉ C.MARIÁTEGUI S/N ZONA B - A.H.HUAYCÁN	...		EN FUNCIONAMIENTO		-76.820118	-12.015889	NaN	51.0	12	3	POINT (-76.820 -12.016)
3370	MINSA	5978	TAMBO VIEJO	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CIENEGUILLA	150109	AVENIDA AV. MANCO CAPAC S/N - ZONA A - TAMBO V...	...		EN FUNCIONAMIENTO		-76.818267	-12.111047	267.0	NaN	24	3	POINT (-76.818 -12.111)
3382	MINSA	5938	MIGUEL GRAU	CENTROS DE SALUD CON CAMAS DE INTERNAMIENTO	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	CHACLACAYO	150107	CARRETERA CARRETERA CENTRAL KILOMETRO 19.5 - C...	...		EN FUNCIONAMIENTO		-76.813638	-11.987051	676.0	10.0	24	3	POINT (-76.814 -11.987)
3508	MINSA	5947	HOSPITAL DE MEDIANA COMPLEJIDAD JOSE AGURTO TELLO	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	LURIGANCHO	150118	JR. AREQUIPA 214-218	...		EN FUNCIONAMIENTO		-76.693699	-11.934447	NaN	67.0	12	3	POINT (-76.694 -11.934)
7909	ESSALUD	8318	SEGURO SOCIAL DE SALUD	HOSPITALES O CLINICAS DE ATENCION GENERAL	ESTABLECIMIENTO DE SALUD CON INTERNAMIENTO	LIMA	LIMA	SANTA ANITA	150137	CARRETERA CENTRAL KM. 3.5 Nº 1351	...		EN FUNCIONAMIENTO		NaN	NaN	NaN	57.0	12	3	POINT (nan nan)

49 rows × 36 columns

Covid y Postas

base_lima["Muertes Covid"].hist(bins=30)

<AxesSubplot:>

PH_lima_postas

	Institución	Código Único	Nombre del establecimiento	Clasificación	Tipo	Departamento	Provincia	Distrito	UBIGEO	Dirección	...	Situación	Condición	Inspección	NORTE	ESTE	COTA	CAMAS	code1	code2	geometry
2725	MINSA	5824	SAN JOSE	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	ANCON	150102	ESQ. CALLE Nº 17 Y CALLE Nº 9 URB. DE INTERES ...	...		EN FUNCIONAMIENTO		-77.162575	-11.778237	12.0	NaN	19	1	POINT (-77.163 -11.778)
2728	MINSA	14727	PROFAM	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	SANTA ROSA	150139	AV. SANTA ROSA, MANZANA O-2 / ASOCIACION DE VI...	...		EN FUNCIONAMIENTO		-77.159128	-11.817327	NaN	NaN	19	1	POINT (-77.159 -11.817)
2740	MINSA	16525	VILLAS DE ANCON	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	ANCON	150102	MZ X ASOCIACION PRO-VIVIENDA VILLAS DE ANCON	...		EN FUNCIONAMIENTO		-77.145966	-11.733970	0.0	NaN	19	1	POINT (-77.146 -11.734)
2762	MINSA	5825	VIRGEN DE LAS MERCEDES	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	SANTA ROSA	150139	ASOC. VIV. SANTA ROSA MZ. B LT. 09	...		EN FUNCIONAMIENTO		-77.131677	-11.815250	12.0	NaN	19	1	POINT (-77.132 -11.815)
2797	MINSA	5750	CERRO LA REGLA	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	SAN MARTIN DE PORRES	150135	MZ B LT 11 - AAHH ESPERANZA, COMITÉ 2	...		EN FUNCIONAMIENTO		-77.115765	-11.989613	123.0	NaN	19	1	POINT (-77.116 -11.990)
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
3486	MINSA	5868	SEÑOR DE LOS MILAGROS	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	LURIGANCHO	150118	AVENIDA AV.PRECURSORES S/N AAHH NICOLAS DE PIE...	...		EN FUNCIONAMIENTO		-76.714793	-11.935857	911.0	NaN	19	1	POINT (-76.715 -11.936)
3516	MINSA	5870	PABLO PATRON	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	LURIGANCHO	150118	AAHH PABLO PATRON - CALLE 14 MZ. V LOTE 7 DIST...	...		EN FUNCIONAMIENTO		-76.686205	-11.930408	911.0	NaN	19	1	POINT (-76.686 -11.930)
3519	MINSA	5867	MARISCAL CASTILLA	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	LURIGANCHO	150118	CALLE SANTA ROSA MZ O S/N - AAHH MARISCAL CAST...	...		EN FUNCIONAMIENTO		-76.685491	-11.933911	911.0	NaN	19	1	POINT (-76.685 -11.934)
8125	MINSA	5940	HUASCATA	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	CHACLACAYO	150107	OTROS MZ N LOTE 05 AAHH CERRO VECINO HUASCATA-...	...		EN FUNCIONAMIENTO		NaN	NaN	NaN	NaN	19	1	POINT (nan nan)
8184	MINSA	23635	RED DE SERVICIOS DE SALUD SAN JUAN DE MIRAFLOR...	PUESTOS DE SALUD O POSTAS DE SALUD	ESTABLECIMIENTO DE SALUD SIN INTERNAMIENTO	LIMA	LIMA	LIMA	150101	OTROS AA.HH. Virgen del Guadalupe MANZANA E LO...	...		EN FUNCIONAMIENTO		NaN	NaN	NaN	NaN	19	1	POINT (nan nan)

164 rows × 36 columns

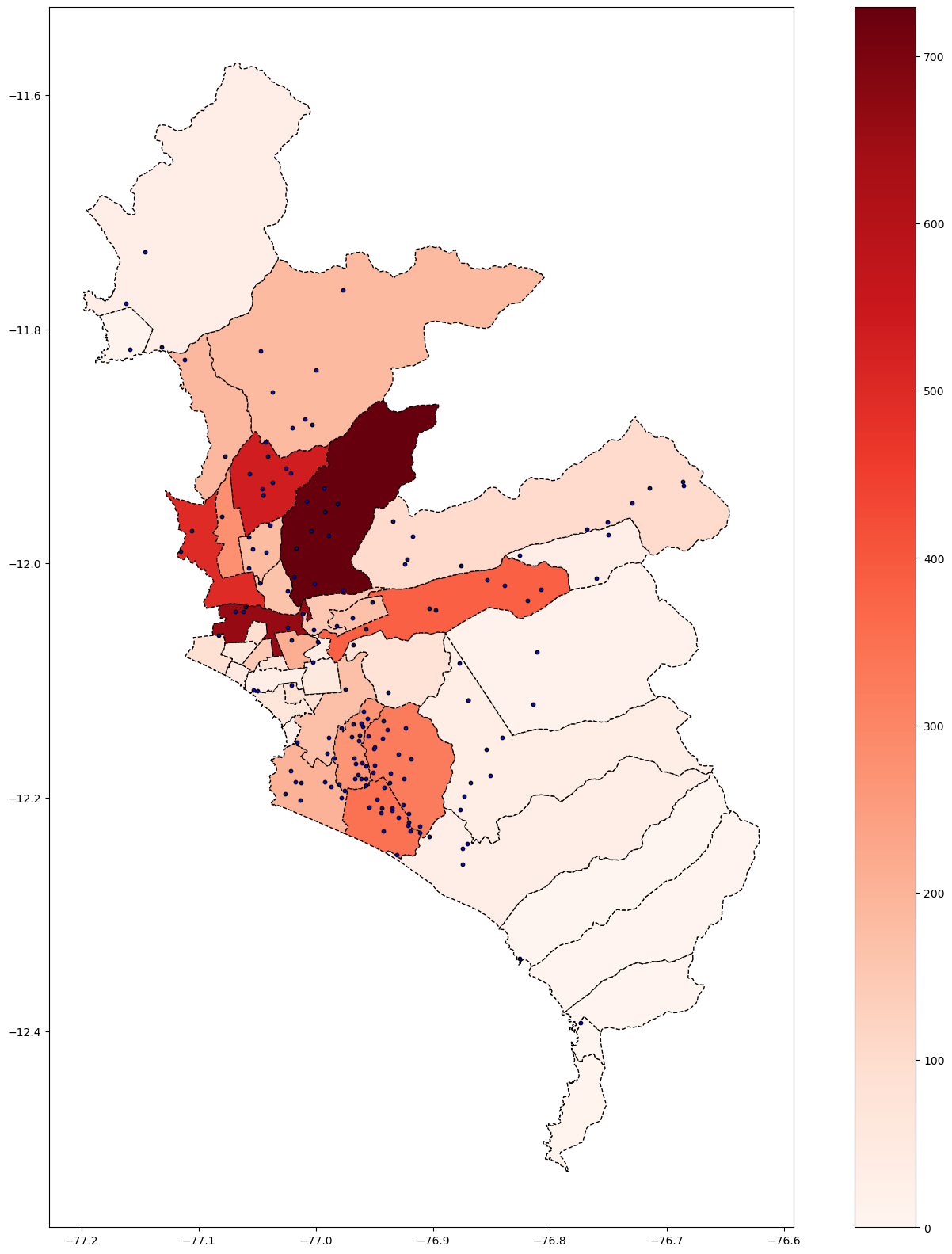

# Covid deaths and Postas médicas

fig, ax = plt.subplots(figsize=(20, 20))

#Heatmap Lima and Covid infection

base_lima.plot( column='Muertes Covid',
               cmap='Reds',
               linestyle='--',
               edgecolor='black',
               legend = True,
               ax=ax )

# Plot in the shapefile (R style)
PH_lima_postas.plot(ax = ax, color = 'blue', markersize=10, edgecolor='black')

<AxesSubplot:>

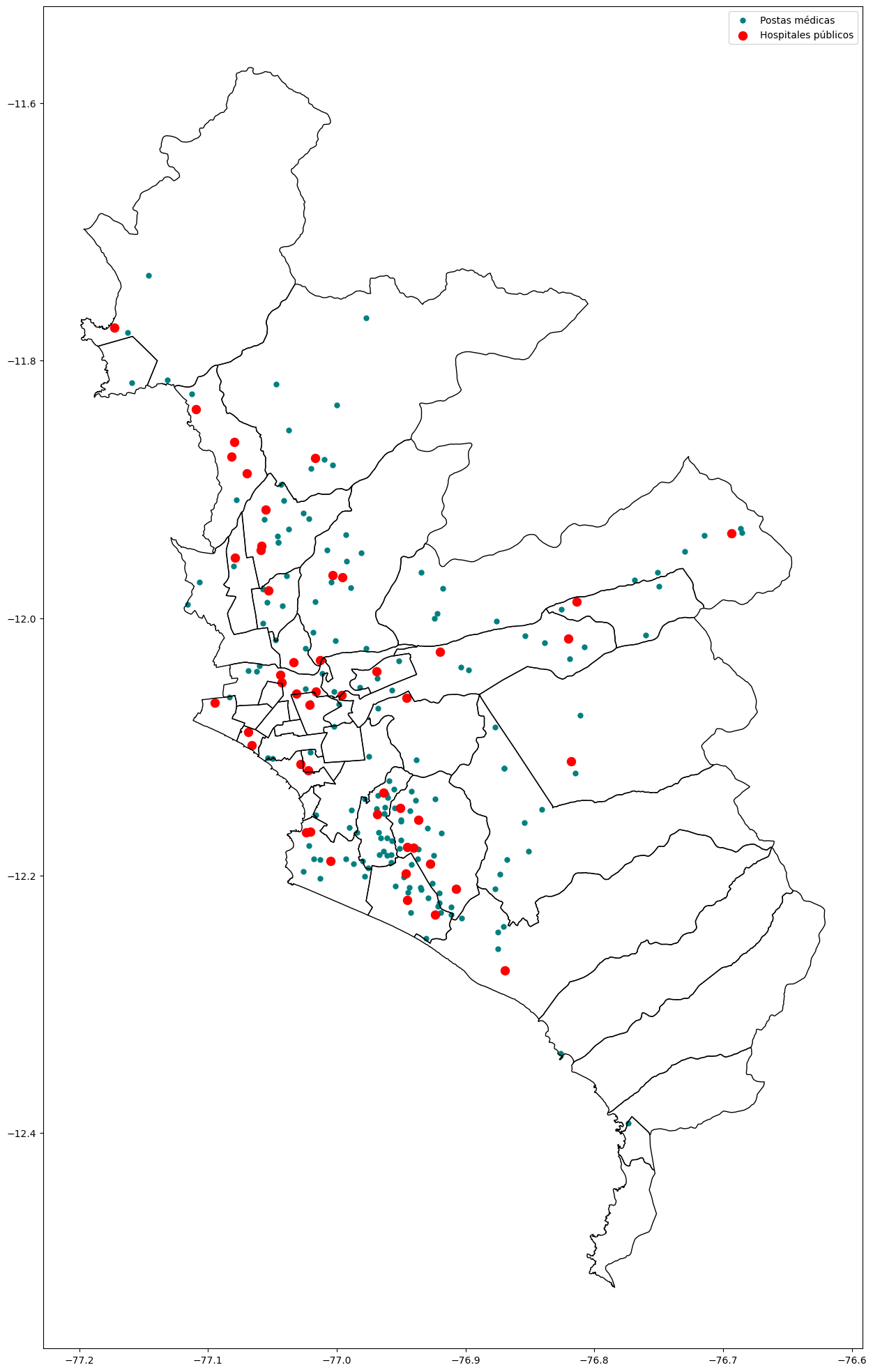

Hospitales Públicos y Postas Médicas

ax = base_lima.plot(figsize=(25, 25), color='none', edgecolor='black', zorder=3)

PH_lima_postas.plot(color='teal', label = "Postas médicas", markersize=25, ax=ax)
PH_lima_hospitales.plot(color='red', label = "Hospitales públicos", markersize=75, ax=ax)

plt.legend(loc='upper right')

<matplotlib.legend.Legend at 0x1ea28880b20>

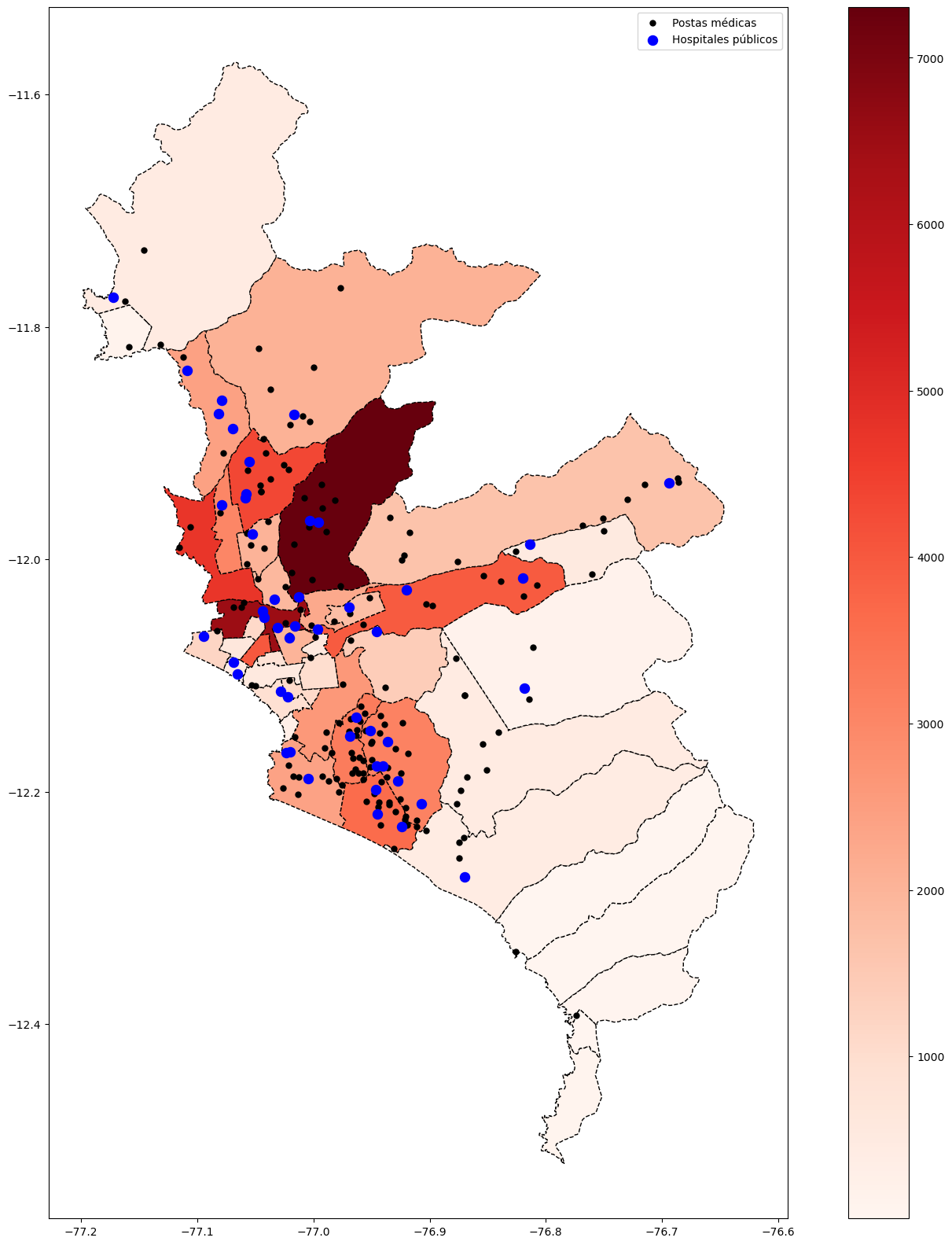

# Covid infection and Postas médicas

fig, ax = plt.subplots(figsize=(20, 20))

#Heatmap Lima and Covid infection

base_lima.plot(column='Casos', cmap='Reds', linestyle='--',
                      edgecolor='black',
                      legend = True, ax=ax)

PH_lima_postas.plot(color='black', label = "Postas médicas", markersize=25, ax=ax)
PH_lima_hospitales.plot(color='blue', label = "Hospitales públicos", markersize=75, ax=ax)

plt.legend(loc='upper right')

<matplotlib.legend.Legend at 0x1ea2a4b7e80>

PH_lima_hospitales['CAMAS'].describe

<bound method NDFrame.describe of 2715      NaN
2803      NaN
2832     49.0
2852      NaN
2859    102.0
2862      NaN
2875      NaN
2879      NaN
2887    590.0
2904      NaN
2905    106.0
2912      NaN
2927      NaN
2943     49.0
2955    662.0
2984      NaN
2988    231.0
2997     84.0
3009      NaN
3017      NaN
3023      NaN
3027      NaN
3036      NaN
3040    594.0
3048      NaN
3071      NaN
3077    150.0
3093      6.0
3096     54.0
3161      6.0
3164      NaN
3175      NaN
3204      NaN
3213      NaN
3214     50.0
3216      NaN
3217      NaN
3230    199.0
3238      NaN
3255      NaN
3262      NaN
3269    111.0
3284      NaN
3322      NaN
3363     51.0
3370      NaN
3382     10.0
3508     67.0
7909     57.0
Name: CAMAS, dtype: float64>

# drop raws with nan values

PH_lima_hospitales = PH_lima_hospitales.dropna(subset=['CAMAS'])

#markersize

Relative Size of Markers from panda series

PH_lima_hospitales["CAMAS"]

2832     49.0
2859    102.0
2887    590.0
2905    106.0
2943     49.0
2955    662.0
2988    231.0
2997     84.0
3040    594.0
3077    150.0
3093      6.0
3096     54.0
3161      6.0
3214     50.0
3230    199.0
3269    111.0
3363     51.0
3382     10.0
3508     67.0
7909     57.0
Name: CAMAS, dtype: float64

# Covid infection and Public Hospital by number of beds

fig, ax = plt.subplots(figsize=(15, 15))

#define the size
markersize=PH_lima_hospitales['CAMAS']

#Heatmap Lima and Covid infection

base_lima.plot(column='Casos', cmap='Reds', linestyle='--',
                      edgecolor='black',
                      legend = True, ax=ax)

PH_lima_hospitales.plot( ax=ax, color='blue', label = "Hospitales públicos", markersize = markersize,
                       edgecolor='black')
plt.legend(loc='upper right')

<matplotlib.legend.Legend at 0x1ea2da469d0>

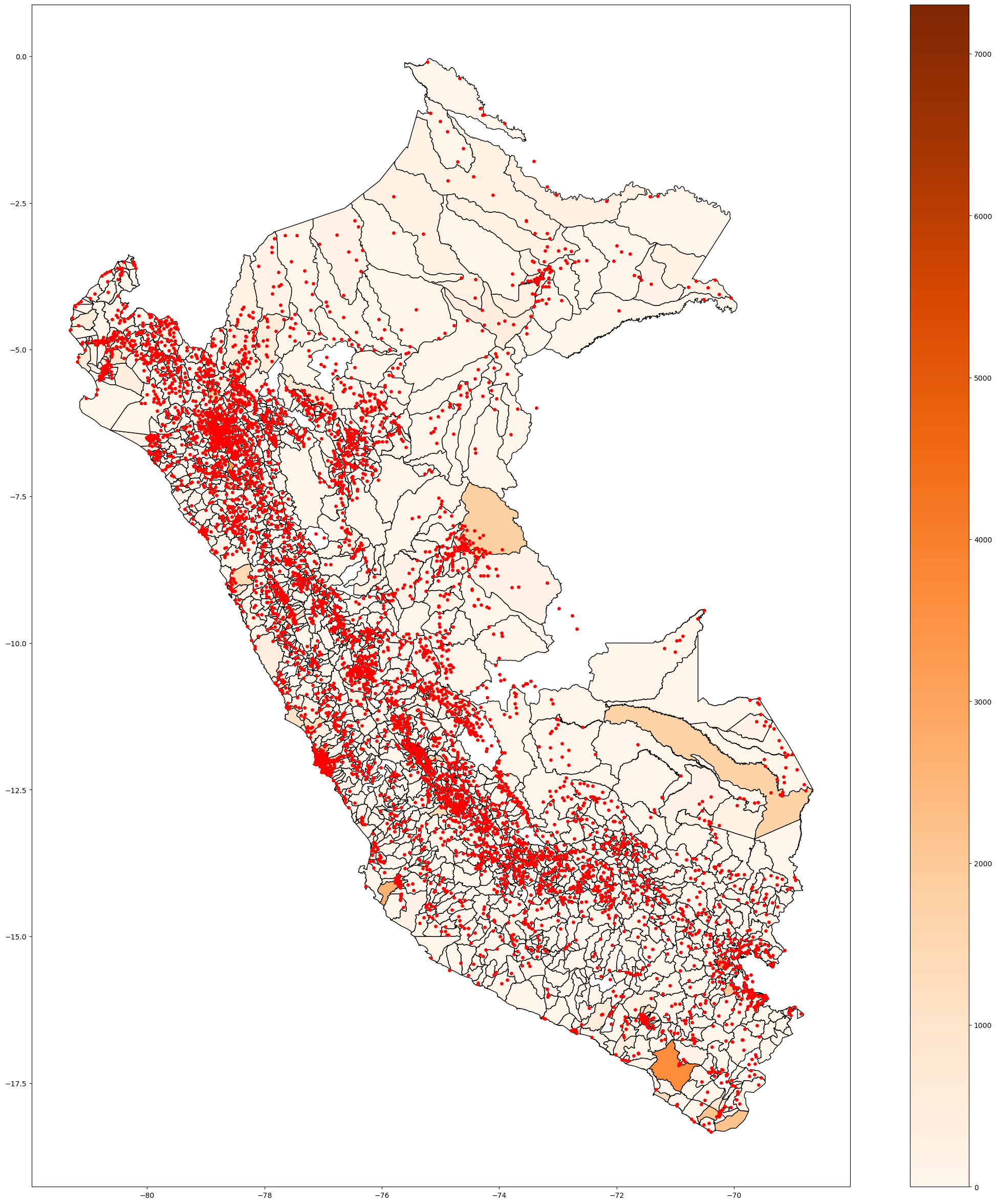

# Covid infection & postas médicas at the national level

gf = base.plot(column='Casos', cmap='Oranges',
          figsize=(30, 30),
          linestyle='-',
          edgecolor='black',
          legend = True)

Public_health1.plot(ax = gf, color = 'red', markersize=15)

<AxesSubplot:>

Select Districts

base_lima = base_lima.set_index("Distrito")

base_lima

	UBIGEO	geometry	Departamento	Provincia	Mes	Año	Casos	Muertes Covid	Muertes totales	centroid
Distrito
LURIN	150119	POLYGON ((-76.70549 -12.17672, -76.70429 -12.1...	LIMA	LIMA	8	2020	452	29	68	POINT (-76.80109 -12.23426)
ANCON	150102	POLYGON ((-77.06517 -11.57512, -77.06505 -11.5...	LIMA	LIMA	8	2020	460	30	51	POINT (-77.09580 -11.70252)
SAN ISIDRO	150131	POLYGON ((-77.04859 -12.08504, -77.04762 -12.0...	LIMA	LIMA	8	2020	551	30	86	POINT (-77.03667 -12.09898)
MAGDALENA DEL MAR	150120	POLYGON ((-77.07210 -12.08358, -77.06348 -12.0...	LIMA	LIMA	8	2020	478	49	94	POINT (-77.06669 -12.09384)
SAN BORJA	150130	POLYGON ((-76.98732 -12.07994, -76.98425 -12.0...	LIMA	LIMA	8	2020	1012	54	123	POINT (-76.99521 -12.09755)
LINCE	150116	POLYGON ((-77.02807 -12.07871, -77.02435 -12.0...	LIMA	LIMA	8	2020	855	76	129	POINT (-77.03567 -12.08579)
SANTIAGO DE SURCO	150140	POLYGON ((-76.95923 -12.07576, -76.95831 -12.0...	LIMA	LIMA	8	2020	2628	171	394	POINT (-76.98431 -12.12699)
PUEBLO LIBRE	150121	POLYGON ((-77.04966 -12.07025, -77.05097 -12.0...	LIMA	LIMA	8	2020	633	61	140	POINT (-77.06574 -12.07508)
SANTA ROSA	150139	POLYGON ((-77.14355 -11.79587, -77.14061 -11.7...	LIMA	LIMA	8	2020	114	9	15	POINT (-77.16325 -11.80501)
CARABAYLLO	150106	POLYGON ((-76.89995 -11.72979, -76.89921 -11.7...	LIMA	LIMA	8	2020	2054	183	281	POINT (-76.97291 -11.80738)
JESUS MARIA	150113	POLYGON ((-77.03811 -12.06768, -77.03629 -12.0...	LIMA	LIMA	8	2020	4012	147	186	POINT (-77.04821 -12.07811)
PUCUSANA	150124	POLYGON ((-76.77367 -12.42553, -76.77332 -12.4...	LIMA	LIMA	8	2020	90	8	13	POINT (-76.77562 -12.46584)
SANTA MARIA DEL MAR	150138	MULTIPOLYGON (((-76.78117 -12.40917, -76.78144...	LIMA	LIMA	8	2020	26	0	0	POINT (-76.76740 -12.40858)
CHORRILLOS	150108	POLYGON ((-77.00745 -12.16033, -77.00781 -12.1...	LIMA	LIMA	8	2020	2400	203	333	POINT (-77.00589 -12.19265)
BARRANCO	150104	POLYGON ((-77.01945 -12.13060, -77.01915 -12.1...	LIMA	LIMA	8	2020	298	26	62	POINT (-77.02086 -12.14403)
VILLA MARIA DEL TRIUNFO	150143	POLYGON ((-76.91078 -12.12233, -76.91191 -12.1...	LIMA	LIMA	8	2020	3123	324	508	POINT (-76.91899 -12.17039)
SAN JUAN DE MIRAFLORES	150133	POLYGON ((-76.95434 -12.11556, -76.95416 -12.1...	LIMA	LIMA	8	2020	3251	267	479	POINT (-76.96651 -12.15786)
MIRAFLORES	150122	POLYGON ((-77.02656 -12.10820, -77.02631 -12.1...	LIMA	LIMA	8	2020	951	66	178	POINT (-77.02893 -12.12091)
SURQUILLO	150141	POLYGON ((-77.01498 -12.10778, -77.01469 -12.1...	LIMA	LIMA	8	2020	1103	91	170	POINT (-77.01299 -12.11344)
PUNTA NEGRA	150127	POLYGON ((-76.64078 -12.21377, -76.64000 -12.2...	LIMA	LIMA	8	2020	54	3	7	POINT (-76.70943 -12.30363)
SAN LUIS	150134	POLYGON ((-76.99780 -12.06084, -76.99810 -12.0...	LIMA	LIMA	8	2020	567	39	72	POINT (-76.99724 -12.07409)
SAN MIGUEL	150136	POLYGON ((-77.07857 -12.06228, -77.07815 -12.0...	LIMA	LIMA	8	2020	1205	89	190	POINT (-77.09007 -12.07644)
VILLA EL SALVADOR	150142	POLYGON ((-76.94232 -12.18247, -76.93731 -12.1...	LIMA	LIMA	8	2020	3625	346	415	POINT (-76.94528 -12.21928)
PUNTA HERMOSA	150126	POLYGON ((-76.65267 -12.19256, -76.65207 -12.1...	LIMA	LIMA	8	2020	35	1	7	POINT (-76.74377 -12.26927)
SAN BARTOLO	150129	POLYGON ((-76.67773 -12.33800, -76.67787 -12.3...	LIMA	LIMA	8	2020	80	4	10	POINT (-76.72414 -12.36938)
PACHACAMAC	150123	POLYGON ((-76.88134 -12.07220, -76.86137 -12.1...	LIMA	LIMA	8	2020	464	34	76	POINT (-76.80961 -12.15999)
LA VICTORIA	150115	POLYGON ((-77.01661 -12.05889, -77.01559 -12.0...	LIMA	LIMA	8	2020	2003	211	351	POINT (-77.01739 -12.07233)
LA MOLINA	150114	POLYGON ((-76.94006 -12.06405, -76.93942 -12.0...	LIMA	LIMA	8	2020	1406	81	154	POINT (-76.92573 -12.08809)
BRE<d1>A	150105	POLYGON ((-77.04206 -12.05348, -77.04198 -12.0...	LIMA	LIMA	8	2020	1129	95	180	POINT (-77.05059 -12.05916)
SANTA ANITA	150137	POLYGON ((-76.93981 -12.03913, -76.93796 -12.0...	LIMA	LIMA	8	2020	1762	169	261	POINT (-76.96314 -12.04321)
CIENEGUILLA	150109	POLYGON ((-76.72948 -11.99943, -76.72596 -11.9...	LIMA	LIMA	8	2020	161	12	25	POINT (-76.77752 -12.07646)
LIMA	150101	POLYGON ((-77.00474 -12.04166, -77.00296 -12.0...	LIMA	LIMA	8	2020	6510	658	666	POINT (-77.04887 -12.05103)
EL AGUSTINO	150111	POLYGON ((-76.94408 -12.02075, -76.94348 -12.0...	LIMA	LIMA	8	2020	2248	153	209	POINT (-76.98740 -12.04010)
RIMAC	150128	POLYGON ((-77.02034 -12.01783, -77.02032 -12.0...	LIMA	LIMA	8	2020	1911	163	277	POINT (-77.03268 -12.02358)
ATE	150103	POLYGON ((-76.83508 -11.99627, -76.83467 -11.9...	LIMA	LIMA	8	2020	3969	382	545	POINT (-76.87747 -12.03257)
CHACLACAYO	150107	POLYGON ((-76.72918 -11.96426, -76.72809 -11.9...	LIMA	LIMA	8	2020	512	31	62	POINT (-76.76695 -11.99164)
INDEPENDENCIA	150112	POLYGON ((-77.02858 -11.96462, -77.02794 -11.9...	LIMA	LIMA	8	2020	2044	181	277	POINT (-77.04604 -11.98747)
SAN MARTIN DE PORRES	150135	POLYGON ((-77.08576 -11.94869, -77.08557 -11.9...	LIMA	LIMA	8	2020	4730	498	768	POINT (-77.08841 -11.99283)
LOS OLIVOS	150117	POLYGON ((-77.07044 -11.95013, -77.07008 -11.9...	LIMA	LIMA	8	2020	3023	279	395	POINT (-77.07437 -11.97242)
COMAS	150110	POLYGON ((-77.04639 -11.89743, -77.04551 -11.8...	LIMA	LIMA	8	2020	4323	533	753	POINT (-77.03890 -11.92906)
LURIGANCHO	150118	POLYGON ((-76.71091 -11.89215, -76.70963 -11.8...	LIMA	LIMA	8	2020	1669	103	172	POINT (-76.80130 -11.95849)
SAN JUAN DE LURIGANCHO	150132	POLYGON ((-76.92923 -11.87063, -76.92891 -11.8...	LIMA	LIMA	8	2020	7303	729	1071	POINT (-76.97149 -11.94596)
PUENTE PIEDRA	150125	POLYGON ((-77.09076 -11.81966, -77.09066 -11.8...	LIMA	LIMA	8	2020	2437	189	311	POINT (-77.08665 -11.87212)

base_lima.buffer(10000)

C:\Users\DELL\AppData\Local\Temp\ipykernel_20856\1713097020.py:1: UserWarning: Geometry is in a geographic CRS. Results from 'buffer' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.

  base_lima.buffer(10000)

Distrito
LURIN                      POLYGON ((-907.44458 9940.34876, -908.51450 99...
ANCON                      POLYGON ((-10070.83398 214.65757, -10071.54511...
SAN ISIDRO                 POLYGON ((-6569.98336 7593.29451, -5804.27878 ...
MAGDALENA DEL MAR          POLYGON ((-6950.49655 7251.25149, -6191.31465 ...
SAN BORJA                  POLYGON ((-1770.66790 9843.44877, -791.27992 9...
LINCE                      POLYGON ((-1448.68595 9893.40233, -503.73208 9...
SANTIAGO DE SURCO          POLYGON ((-3326.57958 9440.77630, -3327.93789 ...
PUEBLO LIBRE               POLYGON ((6246.29993 7734.88076, 6978.22097 70...
SANTA ROSA                 POLYGON ((6739.98962 7295.68218, 6744.33819 73...
CARABAYLLO                 POLYGON ((-824.56307 9955.13861, -824.94665 99...
JESUS MARIA                POLYGON ((9774.92742 -1670.75098, 9646.93969 -...
PUCUSANA                   POLYGON ((-10067.49189 -109.85715, -10076.3141...
SANTA MARIA DEL MAR        POLYGON ((-10072.02469 285.02259, -10072.15474...
CHORRILLOS                 POLYGON ((2625.70000 9605.45191, 2628.36453 96...
BARRANCO                   POLYGON ((-4122.52578 9133.02542, -3210.01547 ...
VILLA MARIA DEL TRIUNFO    POLYGON ((6024.86571 7910.52392, 6622.82282 74...
SAN JUAN DE MIRAFLORES     POLYGON ((-673.87963 9963.48472, -674.27124 99...
MIRAFLORES                 POLYGON ((3063.39167 9476.75000, 3064.95212 94...
SURQUILLO                  POLYGON ((-1843.75512 9820.79236, -1845.45982 ...
PUNTA NEGRA                POLYGON ((4934.72500 8634.06896, 4937.93538 86...
SAN LUIS                   POLYGON ((253.87111 9967.00974, 254.38285 9982...
SAN MIGUEL                 POLYGON ((9244.81994 3574.07053, 9256.11314 35...
VILLA EL SALVADOR          POLYGON ((-2702.25905 9637.05129, -1723.75830 ...
PUNTA HERMOSA              POLYGON ((8411.40078 5274.86226, 8826.69507 45...
SAN BARTOLO                POLYGON ((9015.39174 4138.57377, 9020.13227 41...
PACHACAMAC                 POLYGON ((657.17981 9950.55654, 657.93932 9960...
LA VICTORIA                POLYGON ((-1467.67651 9881.87785, -1468.90210 ...
LA MOLINA                  POLYGON ((-2751.13393 9614.40010, -2753.54201 ...
BRE<d1>A                   POLYGON ((9837.29920 1294.02360, 9861.22235 10...
SANTA ANITA                POLYGON ((9220.46520 3659.63448, 9224.05016 36...
CIENEGUILLA                POLYGON ((-1965.55027 9799.12612, -1967.19709 ...
LIMA                       POLYGON ((9389.02326 3170.20160, 9401.71626 31...
EL AGUSTINO                POLYGON ((-445.17756 9971.21950, -445.54509 99...
RIMAC                      POLYGON ((9165.35017 3805.10518, 9165.72678 38...
ATE                        POLYGON ((-4911.98416 8728.08993, -4917.60810 ...
CHACLACAYO                 POLYGON ((7809.82534 6122.11638, 7816.74728 61...
INDEPENDENCIA              POLYGON ((8566.30170 4998.70446, 8574.35284 50...
SAN MARTIN DE PORRES       POLYGON ((-3092.04918 9521.85319, -3092.29916 ...
LOS OLIVOS                 POLYGON ((1304.41089 9884.70433, 1305.43231 98...
COMAS                      POLYGON ((-8873.15610 4734.64793, -8877.50202 ...
LURIGANCHO                 POLYGON ((-1863.75886 9815.89371, -1865.73751 ...
SAN JUAN DE LURIGANCHO     POLYGON ((-4451.28113 8977.85197, -4452.37360 ...
PUENTE PIEDRA              POLYGON ((7218.40888 6810.72559, 7226.75949 68...
dtype: geometry

# Get buffered region and centroid points
base_lima["buffered"] = base_lima.buffer(10000)
base_lima['centroid'] = base_lima.centroid

C:\Users\DELL\AppData\Local\Temp\ipykernel_20856\2755669895.py:2: UserWarning: Geometry is in a geographic CRS. Results from 'buffer' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.

  base_lima["buffered"] = base_lima.buffer(10000)
C:\Users\DELL\AppData\Local\Temp\ipykernel_20856\2755669895.py:3: UserWarning: Geometry is in a geographic CRS. Results from 'centroid' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.

  base_lima['centroid'] = base_lima.centroid

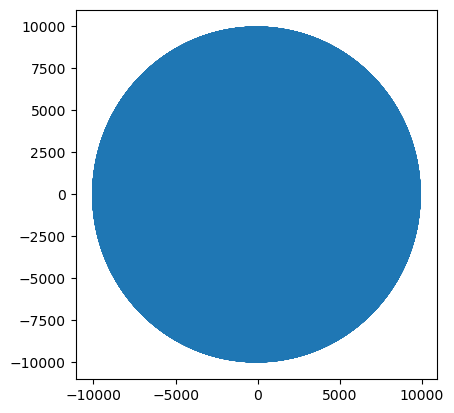

base_lima.buffered.plot()

<AxesSubplot:>

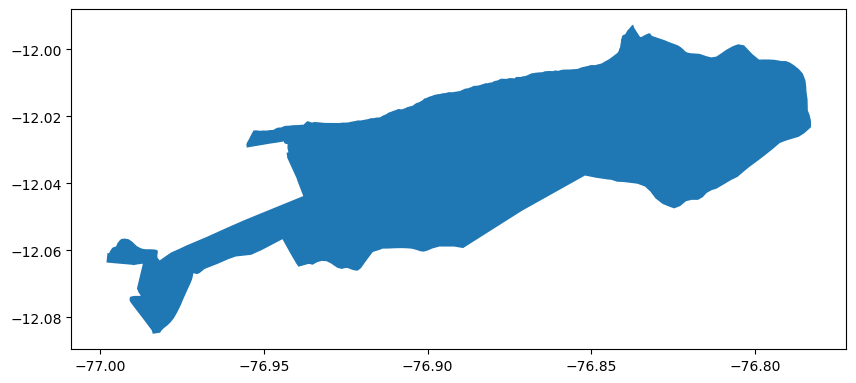

ATE = base_lima[base_lima.UBIGEO == 150103]
ATE.plot(figsize=(10, 10))

<AxesSubplot:>

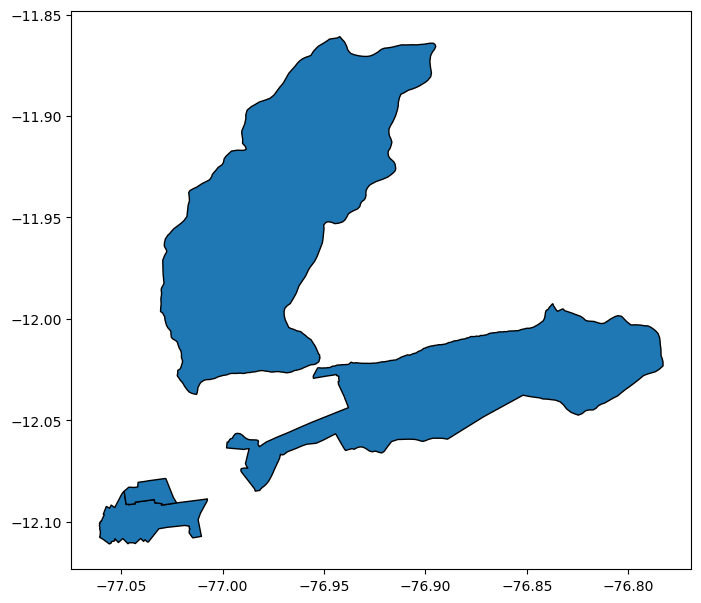

#Plot selectec districs

ATE = base_lima.loc["ATE", "geometry"]
SJL = base_lima.loc["SAN JUAN DE LURIGANCHO", "geometry"]
SI = base_lima.loc["SAN ISIDRO", "geometry"]
LC = base_lima.loc["LINCE", "geometry"]

gpd.GeoSeries([ATE,SJL,SI,LC]).plot(figsize=(8, 8),linestyle='-',
                                    edgecolor='black')

<AxesSubplot:>

Limits - Boarders

# Logic operations:

# Lince and San Isidro share limits

LC.touches(SI)

True

LC.touches(ATE)

False

#Distance ATE y (SAN ISIDRO, LINCE)

ATE.distance(SI)

0.021430816237973403

gpd.GeoSeries([ATE, SI]).plot(figsize=(8, 8),linestyle='-',
                                    edgecolor='black')

<AxesSubplot:>

ATE.distance(LC)

0.03353670040995021

# Add line that cross Lince and ATE

ate_point = base_lima['centroid']['ATE']
lc_point = base_lima['centroid']['LINCE']
sb_point = base_lima['centroid']['SAN BORJA']
lr_point = base_lima['centroid']['LURIN']
ac_point = base_lima['centroid']['ANCON']

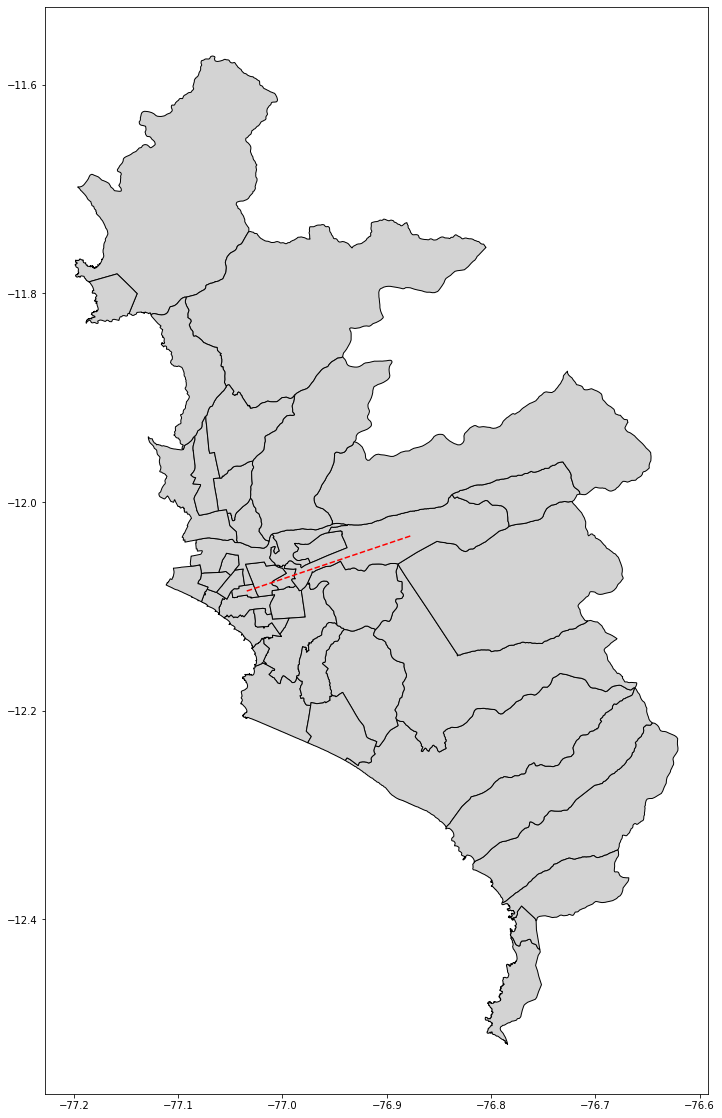

# Add line that cross Lince and ATE

ate_lince = LineString(zip((ate_point.x , lc_point.x ), (ate_point.y, lc_point.y)))

fig, ax = plt.subplots(figsize=(20,20))
base_lima.plot(color='lightgray', ax=ax, linestyle='-',
                                    edgecolor='black')

gpd.GeoSeries([ate_lince]).plot(color='red', linestyle='--', ax = ax)

<AxesSubplot:>

base_lima['area']=base_lima.area
base_lima

C:\Users\DELL\AppData\Local\Temp\ipykernel_20856\3468981840.py:1: UserWarning: Geometry is in a geographic CRS. Results from 'area' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.

  base_lima['area']=base_lima.area

	UBIGEO	geometry	Departamento	Provincia	Mes	Año	Casos	Muertes Covid	Muertes totales	centroid	buffered	area	distance
Distrito
LURIN	150119	POLYGON ((-76.70549 -12.17672, -76.70429 -12.1...	LIMA	LIMA	8	2020	452	29	68	POINT (-76.80111 -12.23426)	POLYGON ((-907.44458 9940.34876, -908.51450 99...	0.015586	0.334878
ANCON	150102	POLYGON ((-77.06517 -11.57512, -77.06505 -11.5...	LIMA	LIMA	8	2020	460	30	51	POINT (-77.09581 -11.70253)	POLYGON ((-10070.83398 214.65757, -10071.54511...	0.025751	0.273336
SAN ISIDRO	150131	POLYGON ((-77.04859 -12.08504, -77.04762 -12.0...	LIMA	LIMA	8	2020	551	30	86	POINT (-77.03667 -12.09898)	POLYGON ((-6569.98336 7593.29451, -5804.27878 ...	0.000805	0.166317
MAGDALENA DEL MAR	150120	POLYGON ((-77.07210 -12.08358, -77.06348 -12.0...	LIMA	LIMA	8	2020	478	49	94	POINT (-77.06669 -12.09384)	POLYGON ((-6950.49655 7251.25149, -6191.31465 ...	0.000271	0.175867
SAN BORJA	150130	POLYGON ((-76.98732 -12.07994, -76.98425 -12.0...	LIMA	LIMA	8	2020	1012	54	123	POINT (-76.99521 -12.09755)	POLYGON ((-1770.66790 9843.44877, -791.27992 9...	0.000860	0.153424
LINCE	150116	POLYGON ((-77.02807 -12.07871, -77.02435 -12.0...	LIMA	LIMA	8	2020	855	76	129	POINT (-77.03567 -12.08579)	POLYGON ((-1448.68595 9893.40233, -503.73208 9...	0.000228	0.153848
SANTIAGO DE SURCO	150140	POLYGON ((-76.95923 -12.07576, -76.95831 -12.0...	LIMA	LIMA	8	2020	2628	171	394	POINT (-76.98431 -12.12699)	POLYGON ((-3326.57958 9440.77630, -3327.93789 ...	0.002882	0.181479
PUEBLO LIBRE	150121	POLYGON ((-77.04966 -12.07025, -77.05097 -12.0...	LIMA	LIMA	8	2020	633	61	140	POINT (-77.06574 -12.07508)	POLYGON ((6246.29993 7734.88076, 6978.22097 70...	0.000386	0.159857
SANTA ROSA	150139	POLYGON ((-77.14355 -11.79587, -77.14061 -11.7...	LIMA	LIMA	8	2020	114	9	15	POINT (-77.16325 -11.80501)	POLYGON ((6739.98962 7295.68218, 6744.33819 73...	0.001446	0.237993
CARABAYLLO	150106	POLYGON ((-76.89995 -11.72979, -76.89921 -11.7...	LIMA	LIMA	8	2020	2054	183	281	POINT (-76.97293 -11.80738)	POLYGON ((-824.56307 9955.13861, -824.94665 99...	0.025891	0.138590
JESUS MARIA	150113	POLYGON ((-77.03811 -12.06768, -77.03629 -12.0...	LIMA	LIMA	8	2020	4012	147	186	POINT (-77.04821 -12.07811)	POLYGON ((9774.92742 -1670.75098, 9646.93969 -...	0.000360	0.152794
PUCUSANA	150124	POLYGON ((-76.77367 -12.42553, -76.77332 -12.4...	LIMA	LIMA	8	2020	90	8	13	POINT (-76.77563 -12.46584)	POLYGON ((-10067.49189 -109.85715, -10076.3141...	0.002418	0.555547
SANTA MARIA DEL MAR	150138	MULTIPOLYGON (((-76.78117 -12.40917, -76.78144...	LIMA	LIMA	8	2020	26	0	0	POINT (-76.76740 -12.40858)	POLYGON ((-10072.02469 285.02259, -10072.15474...	0.000644	0.505632
CHORRILLOS	150108	POLYGON ((-77.00745 -12.16033, -77.00781 -12.1...	LIMA	LIMA	8	2020	2400	203	333	POINT (-77.00589 -12.19265)	POLYGON ((2625.70000 9605.45191, 2628.36453 96...	0.003074	0.249065
BARRANCO	150104	POLYGON ((-77.01945 -12.13060, -77.01915 -12.1...	LIMA	LIMA	8	2020	298	26	62	POINT (-77.02086 -12.14403)	POLYGON ((-4122.52578 9133.02542, -3210.01547 ...	0.000228	0.204123
VILLA MARIA DEL TRIUNFO	150143	POLYGON ((-76.91078 -12.12233, -76.91191 -12.1...	LIMA	LIMA	8	2020	3123	324	508	POINT (-76.91899 -12.17039)	POLYGON ((6024.86571 7910.52392, 6622.82282 74...	0.005499	0.230486
SAN JUAN DE MIRAFLORES	150133	POLYGON ((-76.95434 -12.11556, -76.95416 -12.1...	LIMA	LIMA	8	2020	3251	267	479	POINT (-76.96651 -12.15786)	POLYGON ((-673.87963 9963.48472, -674.27124 99...	0.001846	0.211952
MIRAFLORES	150122	POLYGON ((-77.02656 -12.10820, -77.02631 -12.1...	LIMA	LIMA	8	2020	951	66	178	POINT (-77.02893 -12.12091)	POLYGON ((3063.39167 9476.75000, 3064.95212 94...	0.000759	0.184133
SURQUILLO	150141	POLYGON ((-77.01498 -12.10778, -77.01469 -12.1...	LIMA	LIMA	8	2020	1103	91	170	POINT (-77.01299 -12.11344)	POLYGON ((-1843.75512 9820.79236, -1845.45982 ...	0.000384	0.172533
PUNTA NEGRA	150127	POLYGON ((-76.64078 -12.21377, -76.64000 -12.2...	LIMA	LIMA	8	2020	54	3	7	POINT (-76.70945 -12.30364)	POLYGON ((4934.72500 8634.06896, 4937.93538 86...	0.010773	0.443395
SAN LUIS	150134	POLYGON ((-76.99780 -12.06084, -76.99810 -12.0...	LIMA	LIMA	8	2020	567	39	72	POINT (-76.99724 -12.07409)	POLYGON ((253.87111 9967.00974, 254.38285 9982...	0.000289	0.130681
SAN MIGUEL	150136	POLYGON ((-77.07857 -12.06228, -77.07815 -12.0...	LIMA	LIMA	8	2020	1205	89	190	POINT (-77.09007 -12.07644)	POLYGON ((9244.81994 3574.07053, 9256.11314 35...	0.000796	0.176307
VILLA EL SALVADOR	150142	POLYGON ((-76.94232 -12.18247, -76.93731 -12.1...	LIMA	LIMA	8	2020	3625	346	415	POINT (-76.94527 -12.21928)	POLYGON ((-2702.25905 9637.05129, -1723.75830 ...	0.002811	0.274567
PUNTA HERMOSA	150126	POLYGON ((-76.65267 -12.19256, -76.65207 -12.1...	LIMA	LIMA	8	2020	35	1	7	POINT (-76.74379 -12.26927)	POLYGON ((8411.40078 5274.86226, 8826.69507 45...	0.010132	0.395445
SAN BARTOLO	150129	POLYGON ((-76.67773 -12.33800, -76.67787 -12.3...	LIMA	LIMA	8	2020	80	4	10	POINT (-76.72414 -12.36938)	POLYGON ((9015.39174 4138.57377, 9020.13227 41...	0.004458	0.490367
PACHACAMAC	150123	POLYGON ((-76.88134 -12.07220, -76.86137 -12.1...	LIMA	LIMA	8	2020	464	34	76	POINT (-76.80962 -12.15999)	POLYGON ((657.17981 9950.55654, 657.93932 9960...	0.015438	0.268347
LA VICTORIA	150115	POLYGON ((-77.01661 -12.05889, -77.01559 -12.0...	LIMA	LIMA	8	2020	2003	211	351	POINT (-77.01739 -12.07233)	POLYGON ((-1467.67651 9881.87785, -1468.90210 ...	0.000759	0.134441
LA MOLINA	150114	POLYGON ((-76.94006 -12.06405, -76.93942 -12.0...	LIMA	LIMA	8	2020	1406	81	154	POINT (-76.92573 -12.08809)	POLYGON ((-2751.13393 9614.40010, -2753.54201 ...	0.004046	0.149307
BRE<d1>A	150105	POLYGON ((-77.04206 -12.05348, -77.04198 -12.0...	LIMA	LIMA	8	2020	1129	95	180	POINT (-77.05059 -12.05916)	POLYGON ((9837.29920 1294.02360, 9861.22235 10...	0.000267	0.138095
SANTA ANITA	150137	POLYGON ((-76.93981 -12.03913, -76.93796 -12.0...	LIMA	LIMA	8	2020	1762	169	261	POINT (-76.96314 -12.04321)	POLYGON ((9220.46520 3659.63448, 9224.05016 36...	0.000886	0.097599
CIENEGUILLA	150109	POLYGON ((-76.72948 -11.99943, -76.72596 -11.9...	LIMA	LIMA	8	2020	161	12	25	POINT (-76.77753 -12.07646)	POLYGON ((-1965.55027 9799.12612, -1967.19709 ...	0.018677	0.233781
LIMA	150101	POLYGON ((-77.00474 -12.04166, -77.00296 -12.0...	LIMA	LIMA	8	2020	6510	658	666	POINT (-77.04887 -12.05103)	POLYGON ((9389.02326 3170.20160, 9401.71626 31...	0.001786	0.130485
EL AGUSTINO	150111	POLYGON ((-76.94408 -12.02075, -76.94348 -12.0...	LIMA	LIMA	8	2020	2248	153	209	POINT (-76.98740 -12.04010)	POLYGON ((-445.17756 9971.21950, -445.54509 99...	0.001111	0.095466
RIMAC	150128	POLYGON ((-77.02034 -12.01783, -77.02032 -12.0...	LIMA	LIMA	8	2020	1911	163	277	POINT (-77.03268 -12.02358)	POLYGON ((9165.35017 3805.10518, 9165.72678 38...	0.001001	0.098832
ATE	150103	POLYGON ((-76.83508 -11.99627, -76.83467 -11.9...	LIMA	LIMA	8	2020	3969	382	545	POINT (-76.87748 -12.03257)	POLYGON ((-4911.98416 8728.08993, -4917.60810 ...	0.007058	0.127825
CHACLACAYO	150107	POLYGON ((-76.72918 -11.96426, -76.72809 -11.9...	LIMA	LIMA	8	2020	512	31	62	POINT (-76.76695 -11.99164)	POLYGON ((7809.82534 6122.11638, 7816.74728 61...	0.003553	0.209580
INDEPENDENCIA	150112	POLYGON ((-77.02858 -11.96462, -77.02794 -11.9...	LIMA	LIMA	8	2020	2044	181	277	POINT (-77.04604 -11.98747)	POLYGON ((8566.30170 4998.70446, 8574.35284 50...	0.001337	0.085326
SAN MARTIN DE PORRES	150135	POLYGON ((-77.08576 -11.94869, -77.08557 -11.9...	LIMA	LIMA	8	2020	4730	498	768	POINT (-77.08841 -11.99283)	POLYGON ((-3092.04918 9521.85319, -3092.29916 ...	0.003015	0.125958
LOS OLIVOS	150117	POLYGON ((-77.07044 -11.95013, -77.07008 -11.9...	LIMA	LIMA	8	2020	3023	279	395	POINT (-77.07437 -11.97242)	POLYGON ((1304.41089 9884.70433, 1305.43231 98...	0.001512	0.106220
COMAS	150110	POLYGON ((-77.04639 -11.89743, -77.04551 -11.8...	LIMA	LIMA	8	2020	4323	533	753	POINT (-77.03890 -11.92906)	POLYGON ((-8873.15610 4734.64793, -8877.50202 ...	0.004055	0.069492
LURIGANCHO	150118	POLYGON ((-76.71091 -11.89215, -76.70963 -11.8...	LIMA	LIMA	8	2020	1669	103	172	POINT (-76.80133 -11.95848)	POLYGON ((-1863.75886 9815.89371, -1865.73751 ...	0.020338	0.170624
SAN JUAN DE LURIGANCHO	150132	POLYGON ((-76.92923 -11.87063, -76.92891 -11.8...	LIMA	LIMA	8	2020	7303	729	1071	POINT (-76.97149 -11.94597)	POLYGON ((-4451.28113 8977.85197, -4452.37360 ...	0.011652	0.000000
PUENTE PIEDRA	150125	POLYGON ((-77.09076 -11.81966, -77.09066 -11.8...	LIMA	LIMA	8	2020	2437	189	311	POINT (-77.08665 -11.87213)	POLYGON ((7218.40888 6810.72559, 7226.75949 68...	0.004193	0.136796

#Distamce between San Juan de Lurigancho to other districs

SJL_point = base_lima['centroid']["SAN JUAN DE LURIGANCHO"]

base_lima['distance'] = base_lima['centroid'].distance(SJL_point)

C:\Users\DELL\AppData\Local\Temp\ipykernel_20856\3552139678.py:5: UserWarning: Geometry is in a geographic CRS. Results from 'distance' are likely incorrect. Use 'GeoSeries.to_crs()' to re-project geometries to a projected CRS before this operation.

  base_lima['distance'] = base_lima['centroid'].distance(SJL_point)

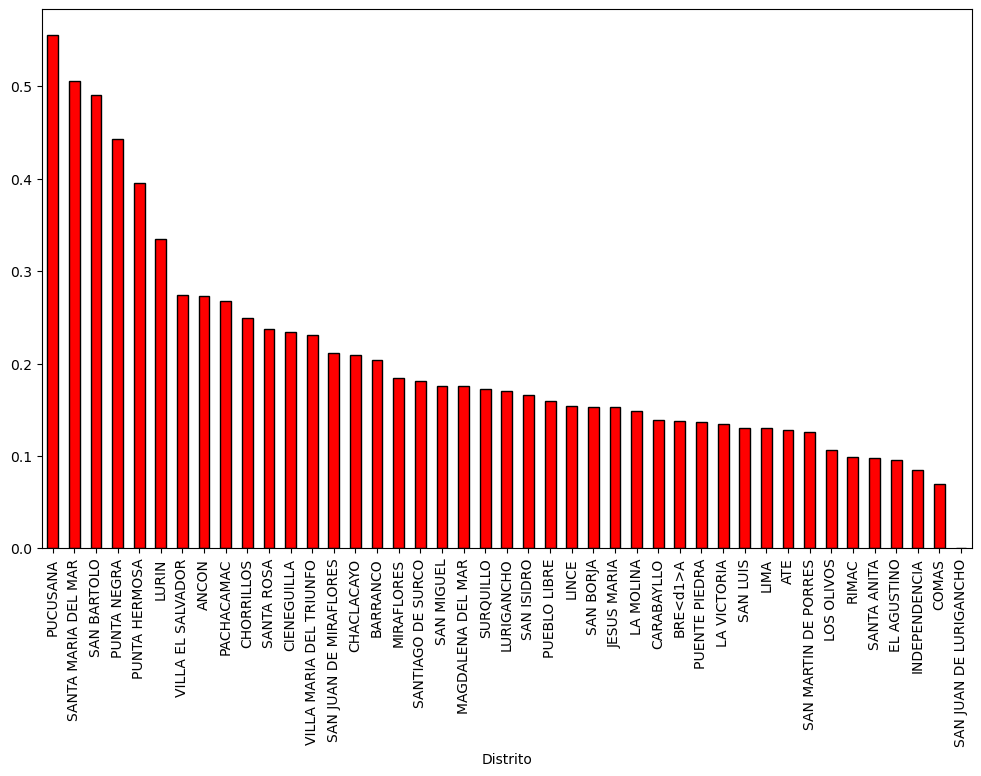

base_lima['distance'].sort_values(ascending=False)

Distrito
PUCUSANA                   0.555547
SANTA MARIA DEL MAR        0.505632
SAN BARTOLO                0.490367
PUNTA NEGRA                0.443395
PUNTA HERMOSA              0.395445
LURIN                      0.334878
VILLA EL SALVADOR          0.274567
ANCON                      0.273336
PACHACAMAC                 0.268347
CHORRILLOS                 0.249065
SANTA ROSA                 0.237993
CIENEGUILLA                0.233781
VILLA MARIA DEL TRIUNFO    0.230486
SAN JUAN DE MIRAFLORES     0.211952
CHACLACAYO                 0.209580
BARRANCO                   0.204123
MIRAFLORES                 0.184133
SANTIAGO DE SURCO          0.181479
SAN MIGUEL                 0.176307
MAGDALENA DEL MAR          0.175867
SURQUILLO                  0.172533
LURIGANCHO                 0.170624
SAN ISIDRO                 0.166317
PUEBLO LIBRE               0.159857
LINCE                      0.153848
SAN BORJA                  0.153424
JESUS MARIA                0.152794
LA MOLINA                  0.149307
CARABAYLLO                 0.138590
BRE<d1>A                   0.138095
PUENTE PIEDRA              0.136796
LA VICTORIA                0.134441
SAN LUIS                   0.130681
LIMA                       0.130485
ATE                        0.127825
SAN MARTIN DE PORRES       0.125958
LOS OLIVOS                 0.106220
RIMAC                      0.098832
SANTA ANITA                0.097599
EL AGUSTINO                0.095466
INDEPENDENCIA              0.085326
COMAS                      0.069492
SAN JUAN DE LURIGANCHO     0.000000
Name: distance, dtype: float64

base_lima['distance'].sort_values(ascending=False).plot.bar(figsize=(12, 7), color = 'red', edgecolor='black')

<AxesSubplot:xlabel='Distrito'>

ate_point.type

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
~\AppData\Local\Temp\ipykernel_20856\1350904785.py in <module>
----> 1 ate_point.type

NameError: name 'ate_point' is not defined

# SJL and other districs

d1 = LineString(zip((SJL_point.x , lc_point.x ), (SJL_point.y, lc_point.y)))
d2 = LineString(zip((SJL_point.x , ate_point.x ), (SJL_point.y, ate_point.y)))
d3 = LineString(zip((SJL_point.x , sb_point.x ), (SJL_point.y, sb_point.y)))
d4 = LineString(zip((SJL_point.x , lr_point.x ), (SJL_point.y, lr_point.y)))
d5 = LineString(zip((SJL_point.x , ac_point.x ), (SJL_point.y, ac_point.y)))

fig, ax = plt.subplots(figsize=(20,20))
base_lima.plot(color='white', ax=ax, linestyle='-',
                                    edgecolor='black')

for i in range(1,6):
    gpd.GeoSeries(globals()[f'd{i}']).plot(color='red', linestyle='--', ax = ax, linewidth = 2.5)

ArcGis Operations in Geopandas

dist_shp = gpd.read_file(r'../_data/shape_file/DISTRITOS.shp')

Get Centroids

Get the centroids of each geometry (district).

dist_shp.crs

<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

dist_shp.to_crs(24891).centroid.to_crs( 4326 )

0        POINT (-75.46643 -9.63426)
1        POINT (-74.86630 -9.00133)
2        POINT (-75.04801 -8.82493)
3        POINT (-75.27987 -8.95039)
4        POINT (-75.04902 -8.64129)
                   ...
1868     POINT (-76.03798 -9.20808)
1869     POINT (-76.00134 -9.08221)
1870     POINT (-75.98295 -8.98489)
1871    POINT (-70.12642 -15.40623)
1872    POINT (-77.44521 -11.00357)
Length: 1873, dtype: geometry

dist_shp.crs

<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

We get warnings since we need to reproject this shapefile object to a CRS in meters. This CRS should be a plane area to the specific zone of the shapefile (more info). In the case of Peru, we use 24891 (more info).

projected_dist_shp = dist_shp.to_crs( epsg = 24891 )

projected_dist_shp[ 'centroids'] = projected_dist_shp.centroid

Then, we reproject again the centroids to the original CRS.

dist_shp[ 'Centroid_Latitude' ] = projected_dist_shp[ 'centroids' ].to_crs( epsg = 4326 ).y
dist_shp[ 'Centroid_Longitude' ] = projected_dist_shp[ 'centroids' ].to_crs( epsg = 4326 ).x

Intersection

health_centers = pd.read_csv( r"../_data\salud_places_peru.csv")

ht1 = health_centers[ health_centers.latitud != 0 ]

# Make ht1 a geopandas
ht1_geo = gpd.GeoDataFrame( ht1 ,
                           geometry= gpd.points_from_xy(
                                      ht1.longitud,
                                      ht1.latitud))

Check CRS

We found that geolocation is recognized by google maps. We set the CRS that correspond to google maps.

ht1_geo_crs = ht1_geo.set_crs( epsg = 4326 )

Find Ubigeo for each point

# Just take 10% of observations
ht2_geo = ht1_geo_crs.sample( frac = 0.10 )

# Intersect with maps
intersected_ht = gpd.overlay( ht2_geo , maps , how = 'intersection' )

ht2_geo.columns

Index(['id_eess', 'codigo_renaes', 'categoria', 'nombre', 'diresa', 'red',
       'direccion', 'longitud', 'latitud', 'id_ubigeo', 'geometry'],
      dtype='object')

intersected_ht

	id_eess	codigo_renaes	categoria	nombre	diresa	red	direccion	longitud	latitud	id_ubigeo	UBIGEO	geometry
0	10033	19335	I-3	POLICLINICO BANDA SHILCAYO	SAN MARTIN	NO PERTENECE A NINGUNA RED	JIRÓN JIRON TARAPOTO 382 BANDA DE SHILCAYO DIS...	-76.346362	-6.492716	1807	220909	POINT (-76.34636 -6.49272)
1	11895	6367	I-1	LA UNION (SANIRARCA)	SAN MARTIN	SAN MARTIN	AVENIDA LA UNION ACSERIO LA UNION AV. LA UNION...	-76.304616	-6.504808	1807	220909	POINT (-76.30462 -6.50481)
2	12117	18667	II-E	CLINICA ARROYO	LIMA DIRIS CENTRO	NO PERTENECE A NINGUNA RED	AVENIDA AV. PABLO CARRIQUIRY 798 CORPAC SAN IS...	-77.018614	-12.099788	1311	150131	POINT (-77.01861 -12.09979)
3	20464	17172	I-3	IMM S.A.C.	LIMA DIRIS CENTRO	NO PERTENECE A NINGUNA RED	AVENIDA AV. JAVIER PRADO ESTE 1476 DISTRITO SA...	-77.011404	-12.089537	1311	150131	POINT (-77.01140 -12.08954)
4	23555	28906	I-1	CONSULTORIO ODONTOLOGICO FRANCESQUI	LIMA DIRIS CENTRO	NO PERTENECE A NINGUNA RED	AVENIDA PAZ SOLDAN 170 INT 601 606 DISTRITO SA...	-77.033371	-12.097050	1311	150131	POINT (-77.03337 -12.09705)
...	...	...	...	...	...	...	...	...	...	...	...	...
1539	9567	488	I-1	SAN ANDRES	JUNIN	SATIPO	OTROS COMUNIDAD SAN ANDRES DISTRITO COVIRIALI ...	-74.688297	-11.329232	1124	120602	POINT (-74.68830 -11.32923)
1540	2222	28935	I-1	SHIPETIARI	MADRE DE DIOS	MADRE DE DIOS	CAMINO RURAL Comunidad Shipetiari DISTRITO MAN...	-70.908723	-12.252546	1510	170202	POINT (-70.90872 -12.25255)
1541	27640	28541	SD	LABORATORIO DE ANÁLISIS CLÍNICO "VIRGEN DE LOU...	LAMBAYEQUE	NO PERTENECE A NINGUNA RED	JIRÓN CONQUISTA NÚMERO 360 DISTRITO JOSE LEONA...	-79.836558	-6.760543	1247	140105	POINT (-79.83656 -6.76054)
1542	16383	5296	II-1	HOSPITAL DISTRITAL DE PACASMAYO	LA LIBERTAD	RED PACASMAYO	JIRÓN JIRON RAZURI S/N S/N JIRON RAZURI S/N PA...	-79.569327	-7.398782	1205	130704	POINT (-79.56933 -7.39878)
1543	4664	2681	I-1	SAN ANTONIO	APURIMAC	ABANCAY	OTROS PANAMERICANA ABANCAY - CUSCO S/N S/N PAN...	-72.856895	-13.605669	259	30109	POINT (-72.85690 -13.60567)

1544 rows × 12 columns

Aggregation

We have shapefiles at district levels. It is possible to aggregate districts at Department or Province level.

dist_shp.plot()

<AxesSubplot:>

prov_shp = dist_shp.dissolve( by = 'IDPROV' )

fig, ax = plt.subplots( figsize = ( 12, 15 ) )
dist_shp.plot( ax = ax )

<AxesSubplot:>

fig, ax = plt.subplots( figsize = ( 12, 15 ) )
prov_shp.plot( ax = ax )

<AxesSubplot:>

dpt_shp = dist_shp.dissolve( by = 'IDDPTO' )

fig, ax = plt.subplots( figsize = ( 12, 15 ) )
dpt_shp.plot( ax = ax )

<AxesSubplot:>

fig, ax = plt.subplots( figsize = ( 12, 15 ) )
dist_shp.plot( ax = ax )
dpt_shp.plot( ax = ax, facecolor="none",  edgecolor='black', lw=0.7 )

<AxesSubplot:>

Checking CRS

# Border of Switzerland
ch_borders = gpd.read_file( r'../_data/eu_maps/CHE_adm0.shp')

# Border of Germany
de_borders = gpd.read_file( r'../_data/eu_maps/gadm36_DEU_0.shp')

# Switzerland lakes shape files
ch_lakes = gpd.GeoDataFrame.from_file( r'../_data/eu_maps/g2s15.shp')

# muni
Geo_muni = gpd.read_file( r"../_data/eu_maps/VG250_GEM.shp" )

Plots with different CRS

fig = plt.figure(figsize=(40, 20), dpi=100)
ax = fig.add_subplot(111, frame_on = False )

# German Plot
Geo_muni.plot( ax = ax )

# switzerland borders
ch_borders.geometry.boundary.plot(color = 'black', ax=ax, edgecolor='0.2', linewidth=1.5)

# # Swiss lakes
ch_lakes.plot(color='lightblue' , ax=ax, edgecolor='0.2', linewidth=0.4, legend=True)

ax.axis('off')

# # define coordinates for the plot area
# ax.set_xlim(455869.5728, 927076.5648)
# #ax.set_ylim( auto = True)
# ax.set_ylim(60443.1884, 529941.7864)

# Save in pdf
# plt.savefig('maps/inventors_BW_bar_legend.pdf')

(-46058.36469219931, 967356.691928138, -305024.0777151486, 6406513.607306512)

Check CRS

shp_files = [ ch_borders, de_borders, ch_lakes, Geo_muni ]

for shp in shp_files:
    print( shp.crs )

#cada informacion esta por su CRS, debe cambiarse

epsg:4326
epsg:4326
epsg:21781
epsg:25832

Reproject CRS

Geo_muni_crs = Geo_muni.to_crs( 21781 )

ch_borders_crs = ch_borders.to_crs( 21781 )

fig = plt.figure(figsize=(40, 20), dpi=100)
ax = fig.add_subplot(111, frame_on = False )

# German Plot
Geo_muni_crs.plot( ax = ax )

# switzerland borders
ch_borders_crs.geometry.boundary.plot(color = 'black', ax=ax, edgecolor='0.2', linewidth=1.5)

# # Swiss lakes
ch_lakes.plot(color='lightblue' , ax=ax, edgecolor='0.2', linewidth=0.4, legend=True)

ax.axis('off')

# # define coordinates for the plot area
# ax.set_xlim(455869.5728, 927076.5648)
#ax.set_ylim( auto = True)
# ax.set_ylim(60443.1884, 529941.7864)

# Save in pdf
# plt.savefig('maps/inventors_BW_bar_legend.pdf')

(453126.0049465788, 1163640.4776774019, 11798.918320549732, 1157415.473468453)

References:

Geopandas

https://geopandas.org/en/stable/docs/user_guide/set_operations.html

https://geopandas.org/en/stable/docs/user_guide/aggregation_with_dissolve.html

https://geopandas.org/en/stable/docs/user_guide/data_structures.html

https://www.kaggle.com/imdevskp/geopandas

Coordinate Reference System

https://geopandas.org/en/stable/docs/user_guide/projections.html

Types of projections

https://spatialreference.org/

Universal Transverse Mercator (UTM)

https://manifold.net/doc/mfd9/universal_transverse_mercator_projection.htm
